Chapter 3 Starting and ending production
Contents
1. Starting production 3-1
1.1 Resuming operation from the stopped point 3-6
1.1.1 Loading the saved data 3-7
1.1.2 Editing mount flags 3-7
1.2 Using the "block skip function" 3-8
1.2.1 Selecting the blocks 3-9
1.2.2 Starting operation 3-10
2.
Ending production and turning power off
3-11
3
3.1 Production 3-13
5
7
9
3.5 Alignment 3-21
3.6 Retry 3-21
2
2
3
3.10 Pick Rate Warning 3-24
3-1
3
Starting and ending production
1. Starting production
This section describes how to select the board data which is already registered and perform component
mounting.
1
Select the board data.
1. When the board data is not yet selected, press the [Board] button on the Setup screen.
A list of registered board data appears.+
2. Line up the cursor with the board data to use for production and press the [Select] button.
The machine loads the seleted board data.
Press [Board] button.
Selecting the board data
Select board data from list.
Selected board name is displayed.
24300-H0-00
3-2
3
Starting and ending production
2

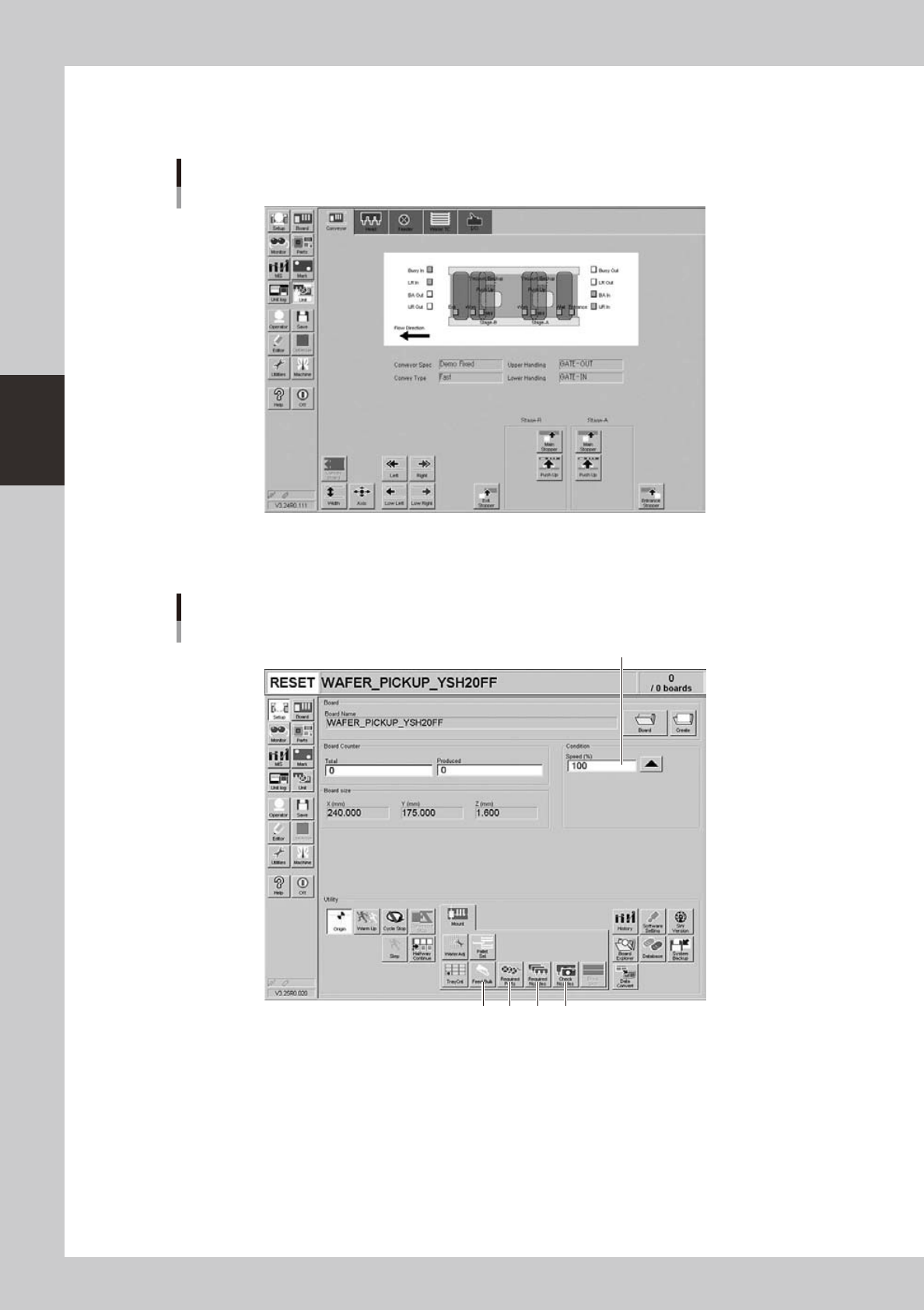

Set up the conveyor unit.
Open the [Unit] - [Conveyor] tab screen, and adjust the conveyor width and push-up pins according to
the board. For further details, refer to "3.4 Adjusting the convey unit setup" in Chapter 2.
[Unit] - [Conveyor] screen
24301-H0-00
3
Check the other setup items.
Return to the [Setup] screen, and press the following buttons to check or change the setting data.
41 23
Setup screen
Set operation speed.
24302-H0-00
