Safety instructions
3.4 Label positions
The following warning/caution labels are attached to the YAMAHA products to ensure safe and correct use.
Check that the information on each label is clearly legible and strictly comply with the instructions.
For safety precautions other than those on the labels shown in this section, see the instructions in "1. Safety".
n
NOTE
Basically, labels are attached to the positions shown below, although they may differ slightly depending on the
machine model.
n
NOTE
When connecting power to this equipment, refer to "Power connection terminals" described in the appendix of the
maintenance manual or user's manual.

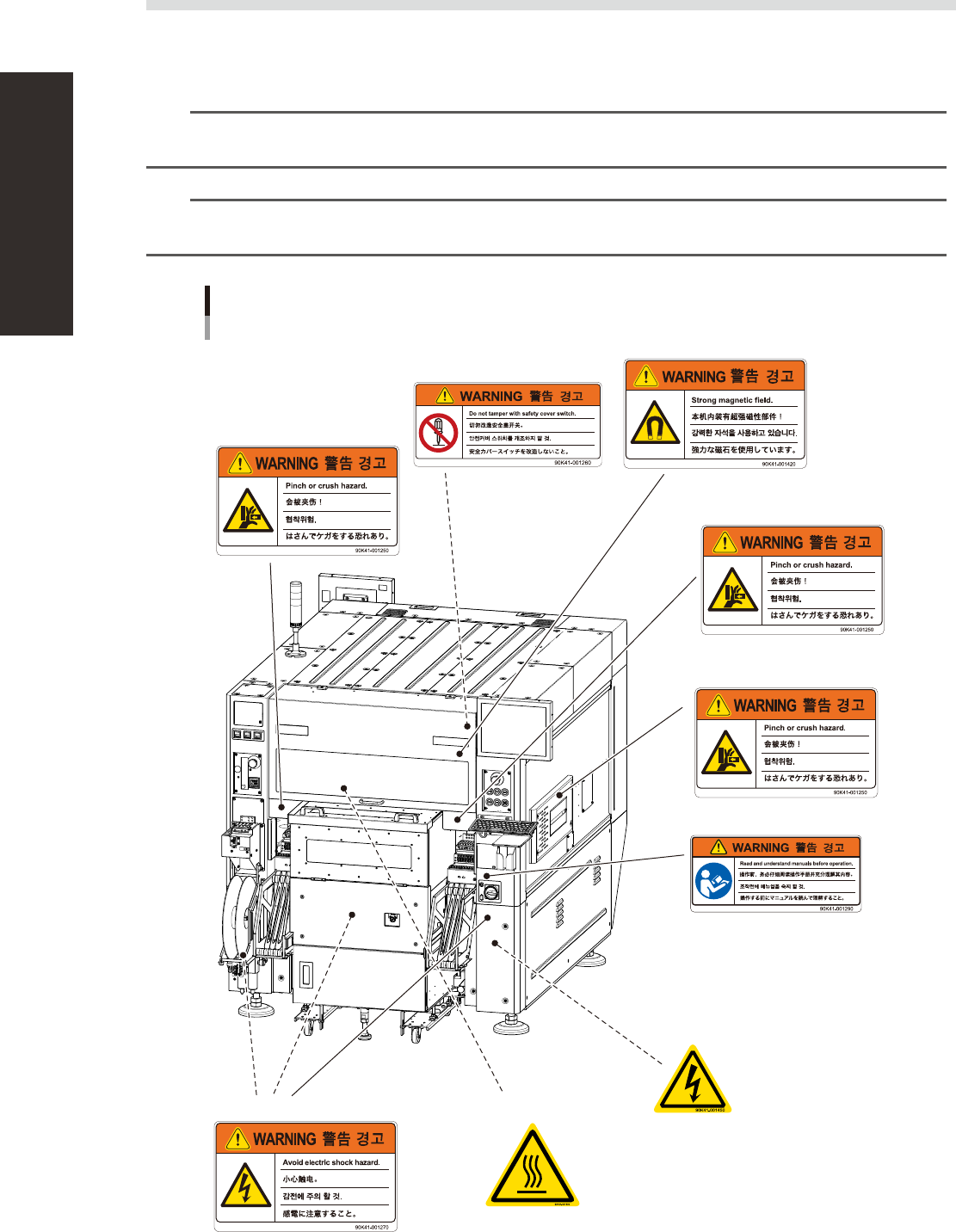

Warning labels
Front side
N Open/close cover section
N Open/close cover inner side
N Open/close cover
N Open/close cover
N Conveyor opening
N Main switch
N Panel inner side
N Conveyor lower base section
N Machine front side, Lower panels
93201-H0-10
xxiii
Safety instructions
n
Label positions
Warning labels
Rear side
N Open/close cover
N Open/close cover inner side
N Transparent cover inner side
N Conveyor opening
93203-H0-10
xxiv
Safety instructions
n
Label positions
Warning labels
1
1
1
2
2
2
2. Do NOT disassemble
1. Caution: Ferromagnetic
N Controller top panel
N Controller front panel
N Controller section
N X-axis linear scale section
93204-H0-10
