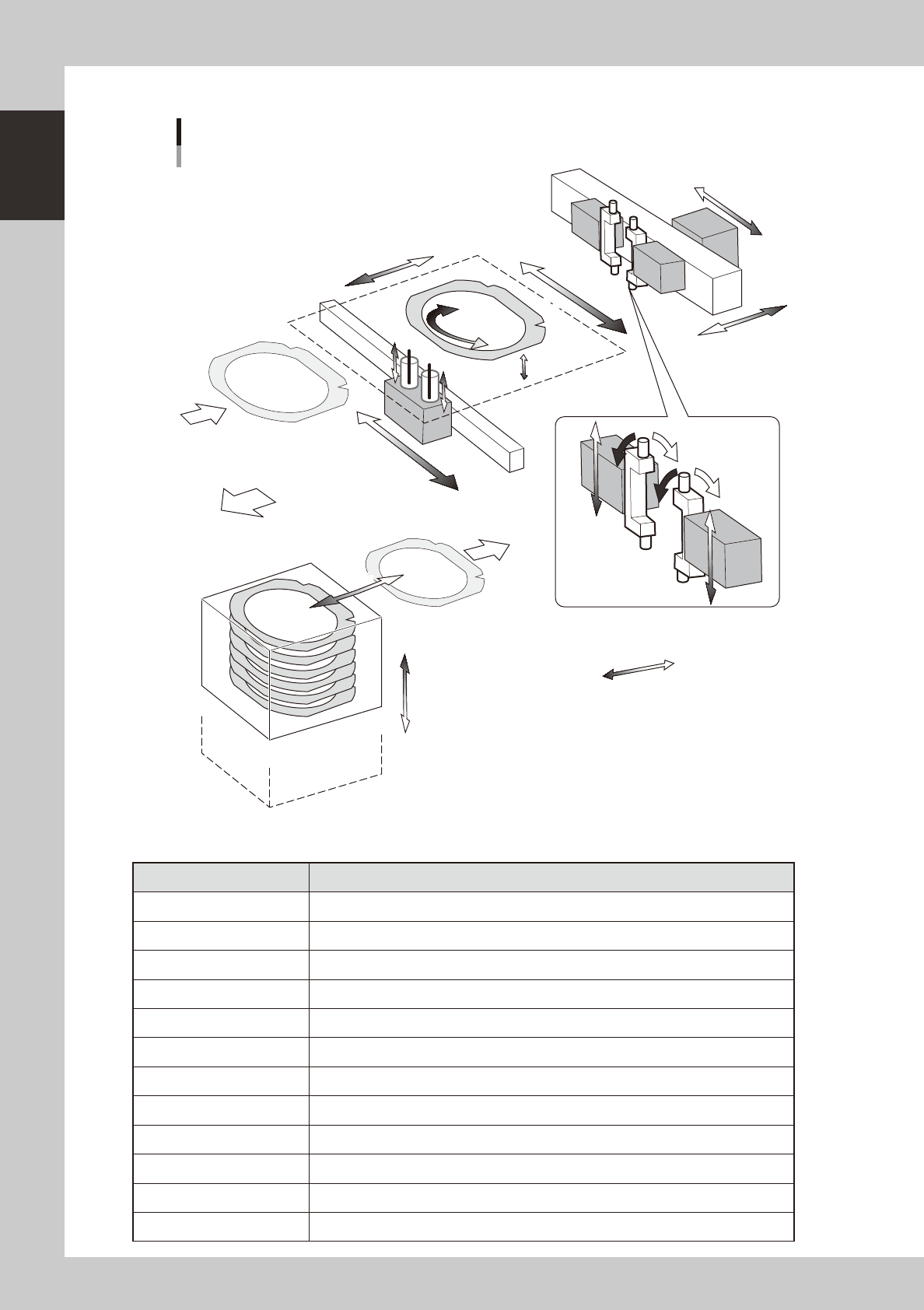

Axis configuration of wafer tray changer
Plus direction
Minus direction
Axis configuration
Wafer tray changer
LCX axis
LFX axisLFX axis
LCY axis
LZ axis
LH axisLH axis
LP1 axis
LR1 axis
LP2 axis
LR2 axis
LA axis
LE axis
LU1 axis
LU2 axis
LY axis
LX axis
Front of machine
23124-H0-00
n
Function of each axis
Axis Function
LZ Moves the magazine vertically.
LH Extracts a wafer from the tray changer and sets it on this machine.
LY Moves a wafer in the Y direction on this machine.
LX Moves the push-up pin unit in the X direction.
LCX Moves the wafer camera in the X direction.
LCY Moves the wafer camera and wafer pickup head in the Y direction.
LU1, LU2 Moves the push-up pin vertically.
LE Extends the dicing sheet to apply tension to it.
LFX Moves the wafer pickup head in the X direction.
LP1, LP2 Moves up or down when the wafer pickup head picks up a wafer.
LR1, LR2 Turns the two wafer pickup heads.
LA Turns a wafer.
