2-13 2 asic operation 2.3 Unit screen T his section describes the manual operation buttons on the Unit screen. n Manual conveyor operation Conveyor manual buttons 1 2 3 4 9 6 8 5 7 24204-H0-00 1. [Convey Board] button …
2-12
2
asic operation
Button name Function
18 Block skip
This button becomes active when
board data with block distribution
performed is loaded.
Pressing this button displays the
"Block Skip Utility" dialog box that
allows you to set whether to skip
mounting components in each block.
This function is available only when
the "Running Mode" on the board
parameter screen is set to "Mount /
DotDispense".
19 Pallet Set
Pressing this button opens the "Pallet
Set" dialog box as shown below.
Select the "Set Pallet" option button,
enter a pallet number, and press the
[OK] button. The selected pallet is
pulled out of the magazine and set
on the stage. To return the pallet on
the stage to the magazine, select the
"Store pallet" option button and press
the [OK] button.
2-13
2
asic operation
2.3 Unit screen
This section describes the manual operation buttons on the Unit screen.
n
Manual conveyor operation

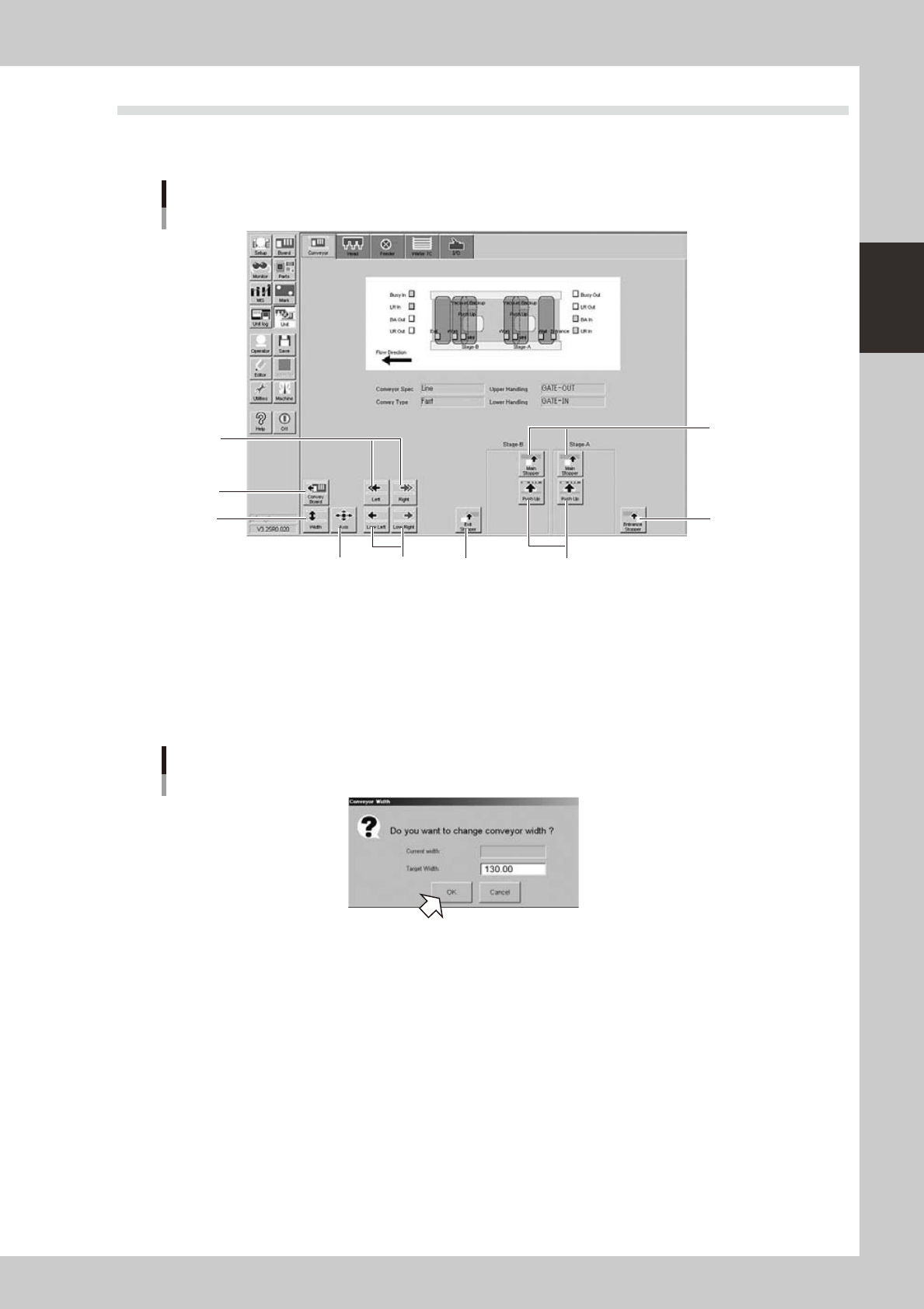

Conveyor manual buttons
1
2
3
49
6
8
5 7
24204-H0-00
1. [Convey Board] button
The board(s) to be conveyed can be specified by selecting "All Positions" or "Specify Position".
2. [Width] button
Use this button to adjust the conveyor width to match the width of boards to be produced.
Pressing this button displays the "Conveyor Width" dialog box. Check the conveyor width and press the [OK] button. The
conveyor rail automatically changes to the specified width.
"Conveyor Width" dialog box
24205-H0-00
3. [Left] button, [Right] button
Rotates the conveyor motor in the left or right direction at high speeds.
4. [Low Left] button, [Low Right] button
Rotates the conveyor motor in the left or right direction at low speeds.
5. [Exit Stopper] button
Raises or lowers the exit stopper that stops a board at the conveyor exit.
6. [Main Stopper] button
Raises or lowers the main stopper that stops a board in the clamp position on the conveyor.
7. [Push Up] button
Pressing this button clamps the board by pushing it up from the bottom (underside) in conjunction with the clamp unit.
2-14
2
asic operation
8. [Entrance Stopper] button
Use this button to stop the incoming board at the standby position.
9. [Axis] button
Use this button when moving each axis manually.
Pressing this button displays the "Move Axis" screen that allows you to manually move each axis at a specified step stroke
with the arrow buttons or to a specified position with the [PTP] buttons.

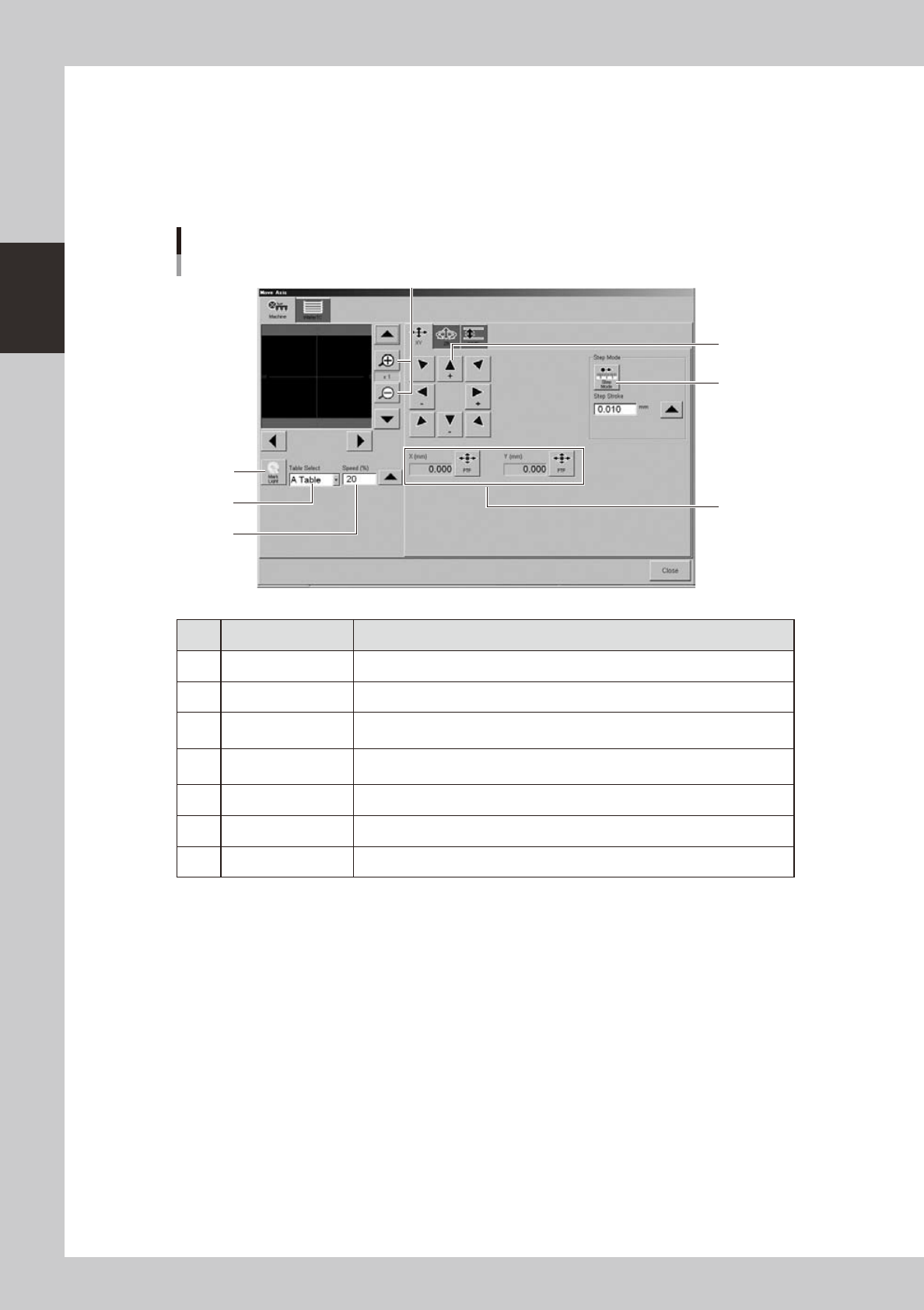

"Move Axis" screen
1
2
3
4
5
6
7
24206-H0-00
Button name Function
1 Zoom in/out (+, -) Zooms in or out the image. (16 times to 1/16 times)
2 Mark Light Allows changing mark lighting manually. Using this button does not affect data.
3 PTP
Displays the "PTP" dialog box that allows directly specifying the position where
you want to move the selected axis.
4 Step Mode
When this button is pushed in, the selected axis can be moved in "step mode
(inching mode)" with the arrow buttons at a specified step stroke (inching stroke).
5 Arrow Use these buttons to move the selected axis in the desired direction.
6 Table Select Select the table to move.
7 Speed Select the speed in axis move mode.
