2-14
2
asic operation
8. [Entrance Stopper] button
Use this button to stop the incoming board at the standby position.
9. [Axis] button
Use this button when moving each axis manually.
Pressing this button displays the "Move Axis" screen that allows you to manually move each axis at a specified step stroke
with the arrow buttons or to a specified position with the [PTP] buttons.
"Move Axis" screen
1
2
3
4
5
6
7
24206-H0-00
Button name Function
1 Zoom in/out (+, -) Zooms in or out the image. (16 times to 1/16 times)
2 Mark Light Allows changing mark lighting manually. Using this button does not affect data.
3 PTP
Displays the "PTP" dialog box that allows directly specifying the position where
you want to move the selected axis.
4 Step Mode
When this button is pushed in, the selected axis can be moved in "step mode
(inching mode)" with the arrow buttons at a specified step stroke (inching stroke).
5 Arrow Use these buttons to move the selected axis in the desired direction.
6 Table Select Select the table to move.
7 Speed Select the speed in axis move mode.
2-15
2
asic operation
n

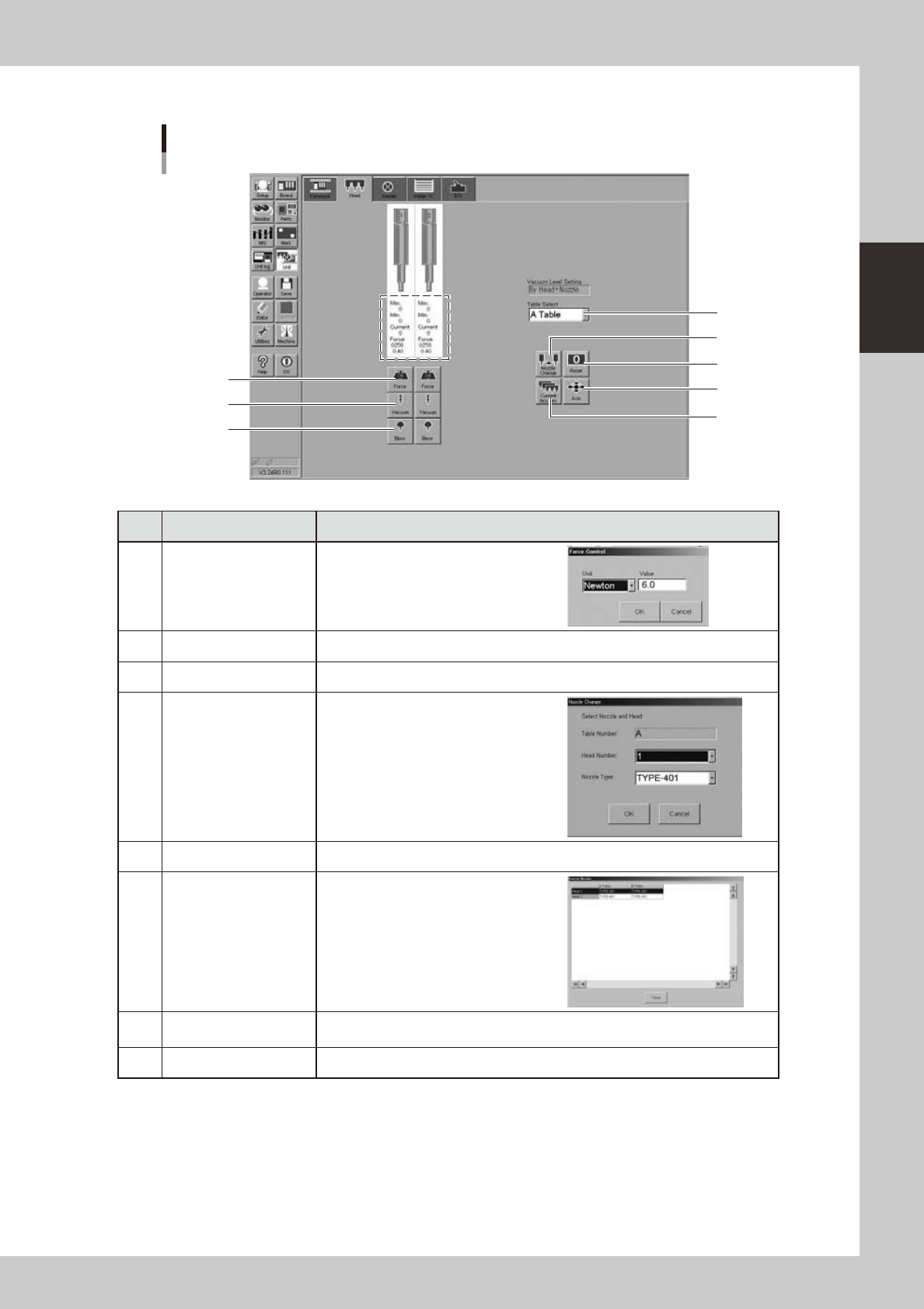

Manual head operation
[Unit] - [Head] screen
Example of FF head
2
1
3
5
4
8
7
6
24207-H0-00
Button name Function
1 Force
Use this button to set a load manually
or check the set load. Units are either in
Newtons or bits.
2 Vacuum Turns the vacuum of each head on or off.
3 Blow Turns the air blow in each head on or off.
4 Nozzle Change
When the machine is equipped with a
nozzle station, pressing this button opens
the "Nozzle Change" dialog box. Specify
the head and nozzle type to perform
nozzle change.
5 Reset Resets the values enclosed by a dotted line on the above screen.
6 Current Nozzles
Shows a list of nozzle types currently
attached to each head.
7 Axis
Opens the "Move Axis" screen. This is the same as the [Axis] button on the [Unit]-
[Conveyor] screen.
8 Table Select Select the table for operation.
2-16
2
asic operation
n
Manual feeder operation
[Unit] - [Feeder] screen
1
4
7
2
6
5
3
24210-H0-00
Button name Function
1 Feed Each time pressing this button advances the tape at the specified pitch.
2 Back
Each time pressing this button moves the tape backward at the specified
pitch.
3 Feeder Setting
Pressing this button opens the
feeder setting dialog box that
allows selecting a feed pitch from
2 to 56mm.
Set the feed pitch and press the
[OK] button. The set feeder pitch
is stored in memory.
4 Speed
Select the feed speed from the drop-down list. The selectable speeds
are "Normal", 90, 80, … 10%.
5 Reload Clears the feeder condition (memory) and reloads the setting.
6 Up/down arrow Moves the selected row up or down.
7 Plate Information Allows you to check the version of the plate board in the feeder plate.
