Machine protection Page 10 / 14 22.11.2021

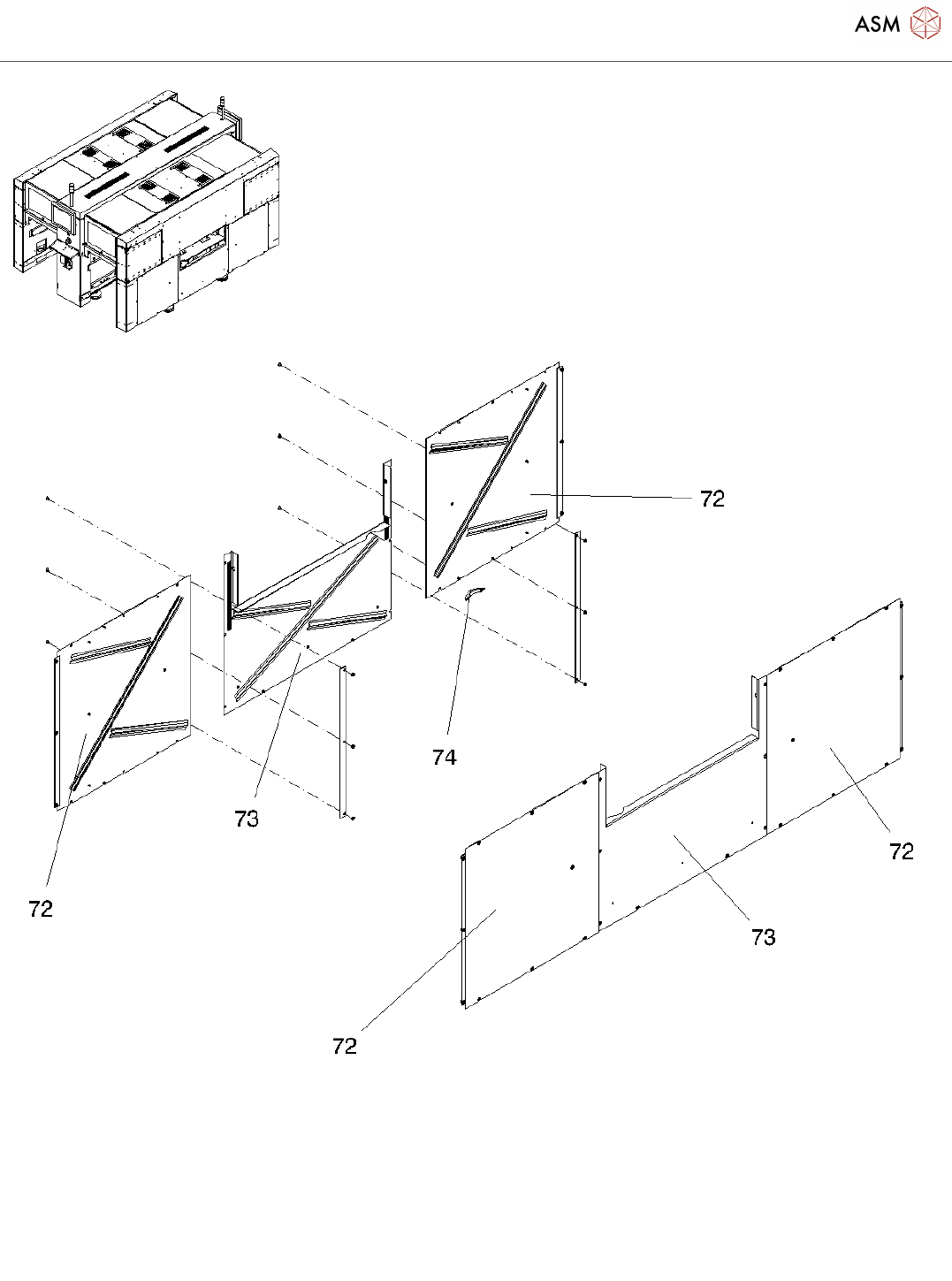

Machine protection
Page 9 / 14 22.11.2021
Machine protection
Page 10 / 14 22.11.2021
Machine protection
Page 11 / 14 22.11.2021
Pos. Item no. Description Part marking
1 03098480-01 MACHINE COVER CPL. X-SERIES S
2 03090353-01 SUSPENSION, COVER
3 03090445-01 CLIP ANGLE RIGHT
4 03090449-01 CLIP ANGLE LEFT
5 03090496-01 BRACKET OUTSIDE SX4A
6 03098488-01 FLAT ROD
7 03098512-01 COVER OUTSIDE ASSY X4(I) S
8 03092811-01 COVER WINDOW ASSY X-SERIES S
9 03098558-01 COVER PLATE CENTER PART W. FAN
ASSY SX4A
10 03098559-01 COVER PLATE CENTER PART CPL.
11 03086200S02 FAN ASSEMBLY SX4 SPARE PART
12 03052317-02 FAN HOOD 1-PIECE SPARE PART
13 03091773-01 AXIAL FAN 24 V DC SPARE PART
14 03098448-01 FAN HOUSING CPL
15 03086258-03 VENTILATOR SHEET
03098482-01 FLANGE SPACER CNDC
17 03097649-01 HOOD FAN, PROTECTIVE GRID SX4
18 03090246-01 TESAFIX 4965, LENGTH 130
03081517-01 TESAFIX 12 WIDE/0,21 THICK
20 03090245-01 TESAFIX 4965, LENGTH 455
03081517-01 TESAFIX 12 WIDE/0,21 THICK
22 03090085-01 MAGNETIC TAPE 10X1X450
23 03090083-01 MAGNETIC TAPE 10X1
24 03097653-01 METAL LATTICE, WIRE MESH SX4
25 03045201-01 DIN EN ISO 7380-M4 X 8-A2-70
26 03091391-01 DESIGN COVER SUPPORT CPL. X-
SERIE S
27 03091393-02 HOUSING SUPPORT WITH
CLAMPING SX4A
28 03042540-01 ISO 4762 - M 3 X 5-A2-70
29 03084460-01 PARABOLIC SPRING
D=21MM,H=24MM, M6
30 03091415-01 MIDDLE COVER BRACKET SX4AV
31 03084330-01 COVER FASTENING COMPL.
32 03077728-01 COVER FASTENING
