4 Installation of SIPLACE Pro and possible Setup Types Installation Manual
Edition 09/2012 SIPLACE Pro 10.1
37
4

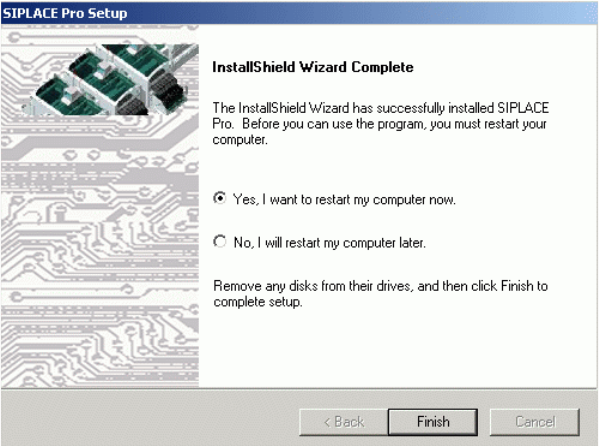

Fig. 4.3 - 9 InstallShield Wizard Complete dialog box
Installation Manual 4 Installation of SIPLACE Pro and possible Setup Types
SIPLACE Pro 10.1 Edition 09/2012
38
4.3.3 Setup Type – SIPLACE Pro Desk
This setup type only contains a "Client" portion of SIPLACE Pro, i.e. the user interface. The
SIPLACE Pro Desk setup requires that the SIPLACE Pro server has already been installed either
locally or remotely. The SIPLACE Pro Desk setup type is used in a distributed system in order to
create additional programming desks which are only operational together with the server.
4
Fig. 4.3 - 10 Components – SIPLACE Pro Desk (sample configuration)
Step 1
Run through the steps in “Starting installation – first steps” on page 21.
Select the SIPLACE Pro Desk setup type.
Click Next.
Step 2
– You are prompted to enter the name of the computer where SIPLACE Pro Server is running.
MS SQL Server with
SIPLACE Pro Server and
Database pre-installed
SIPLACE Pro
Desk
SIPLACE Pro
Interface
Setup
COM+
Resource
Manager
COM+
Line computer
master data
4 Installation of SIPLACE Pro and possible Setup Types Installation Manual
Edition 09/2012 SIPLACE Pro 10.1
39
. 4
Fig. 4.3 - 11 "Select Computers" dialog box
You can type in a computer name or click the Browse button to open a dialog box in which
you can select another name.
Note
SIPLACE Pro Server must already be installed on the remote computer! 4
Step 3
The "Start Copying Files" dialog box gives you a last chance to check the information you have
entered during the previous steps.
Click Next if you accept all the information entered so far.
If you want to alter one or more details, click the Back button until you get to the dialog box
in question.
There, input your changes and click Next to continue as usual.
– The installation routine is now started.
– The "Setup Complete" window confirms that the installation has been completed successfully.
