Tape feeder module 16mm X FS07_074049 - 第9页
Tape feeder module 16mm X FS07 Page 9 / 13 16.09.2021
Tape feeder module 16mm X FS07
Page 8 / 13 16.09.2021

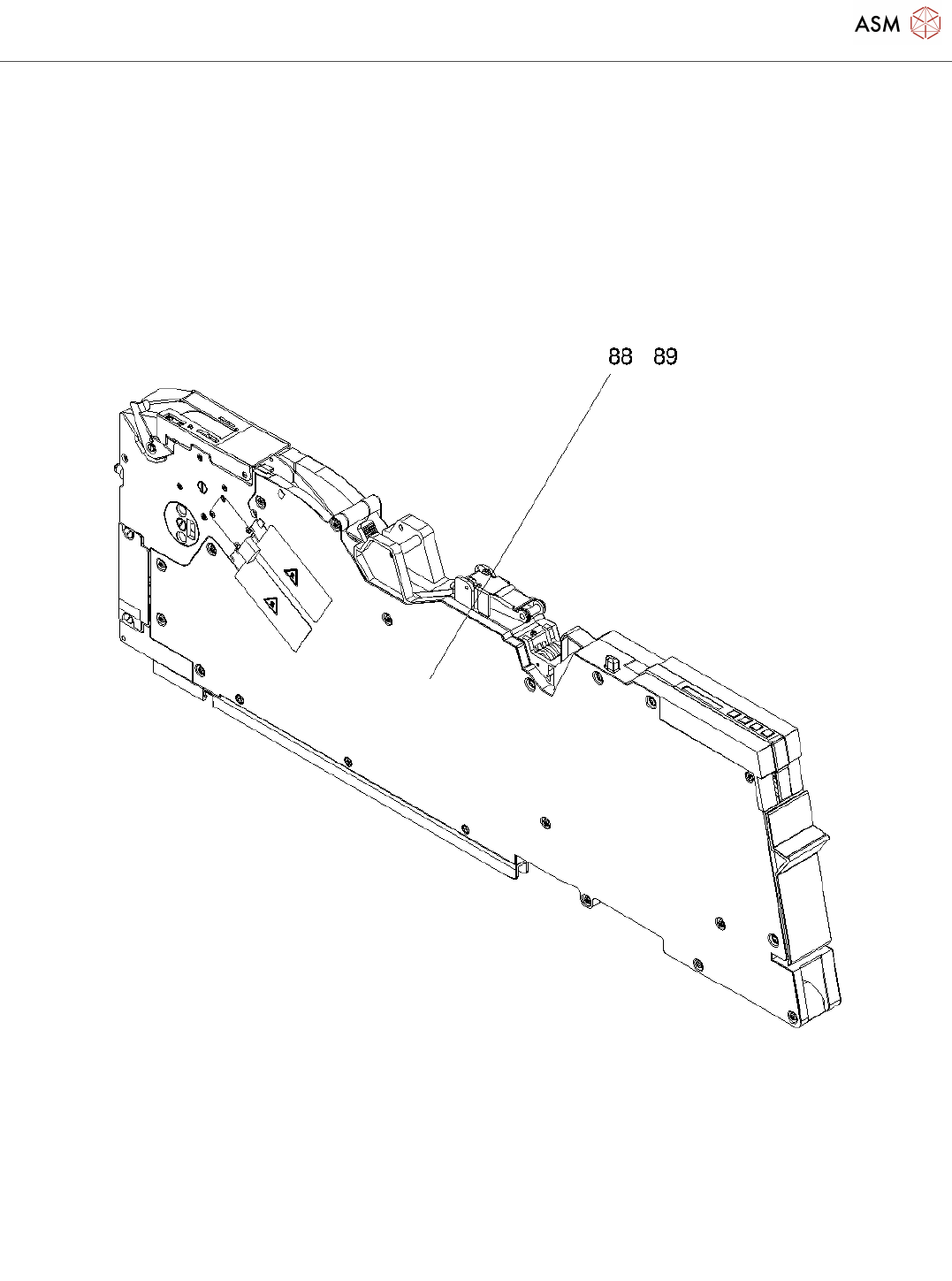

Tape feeder module 16mm X FS07
Page 9 / 13 16.09.2021
Tape feeder module 16mm X FS07
Page 10 / 13 16.09.2021
Pos. Item no. Description Part marking
1 00141272S07 TAPE FEEDER MODULE 16MM X Spare Part
2 03012810-07 TAPE FEEDER MODUL 16MM X
3 03031194S05 PCB /CONTROL BOARD TAPE-
FEEDER X-SERIES
SPARE PART
03032819S01 CABLE /IRDA - EDIF SECONDARY SPARE PART
5 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART
03006814-01 CABLE SENSOR FOIL ROCKER SPARE PART
03006815-01 CABLE SENSOR REMOVAL HANDLE SPARE PART
8 03042403-02 FOIL CASE COMPLETE /X16
9 03009198S01 HANDLE CPL. / X-SERIES Spare Part
10 03002629-01 CONTROL PANEL COMPLETE /X-
SERIE
11 03002644S01 WINDOW /CONTROL PANEL SPARE PART
12 03021637S01 CONTROL PANEL KEY COVER CPL.
/X-SERIES
SPARE PART
13 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
14 03033798-01 REMFORM-SCREW RF-SN75-2,5 X
10-9.8
STANDARD PARTS
15 03042171S01 AXIS FLAP /FOIL CASE X16-X24 SPARE PART
16 03096848S01 FLAP CPL., FOIL DISPOSAL X16 SPARE PART
17 00349527-01 ROUND MAGNET 3X4 NEODYMIUM SPARE PART
18 00341370S01 BLADE, PARTITION SPARE PART
19 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
20 03042355S01 BEARING SHAFT COMPENSATOR
/X16
SPARE PART
21 03048855-01 PRESSURE SPRING
0.75X6.25X31X8.5
SPARE PART
22 00328542-01 SN 213307-H-M2,5 X 6-A2 STANDARD PARTS
23 03097025S02 ROCKER CPL. X16 SPARE PART
24 03042355S01 BEARING SHAFT COMPENSATOR
/X16
SPARE PART
25 03117048S01 STUFFING WHEEL , GEARED CPL,
ROCKER /X16
SPARE PART
26 03117064S01 FOIL DISPOSAL COMPLETE /X16 SPARE PART
27 03043064-01 TRANSMISSION STEP 1 /FOIL
DISPOSAL X8-88
SPARE PART
28 03117065S01 FOIL WING CPL. /X16 PSA SPARE PART
