1 - 27 www.asm-smt.com Standard Nozzles in the 4xxx Series (TPU) 4033 L = 8.700 mm Tip: 2.200 x 1.600 mm (LxW) Item no. 03099713 4133 L = 9.400 mm Tip: 2.200 x 1.600 mm (LxW) Item no. 03099716 4035 L = 8.400 mm Tip: 3.50…

100%1 / 92
1 - 14
www.asm-smt.com

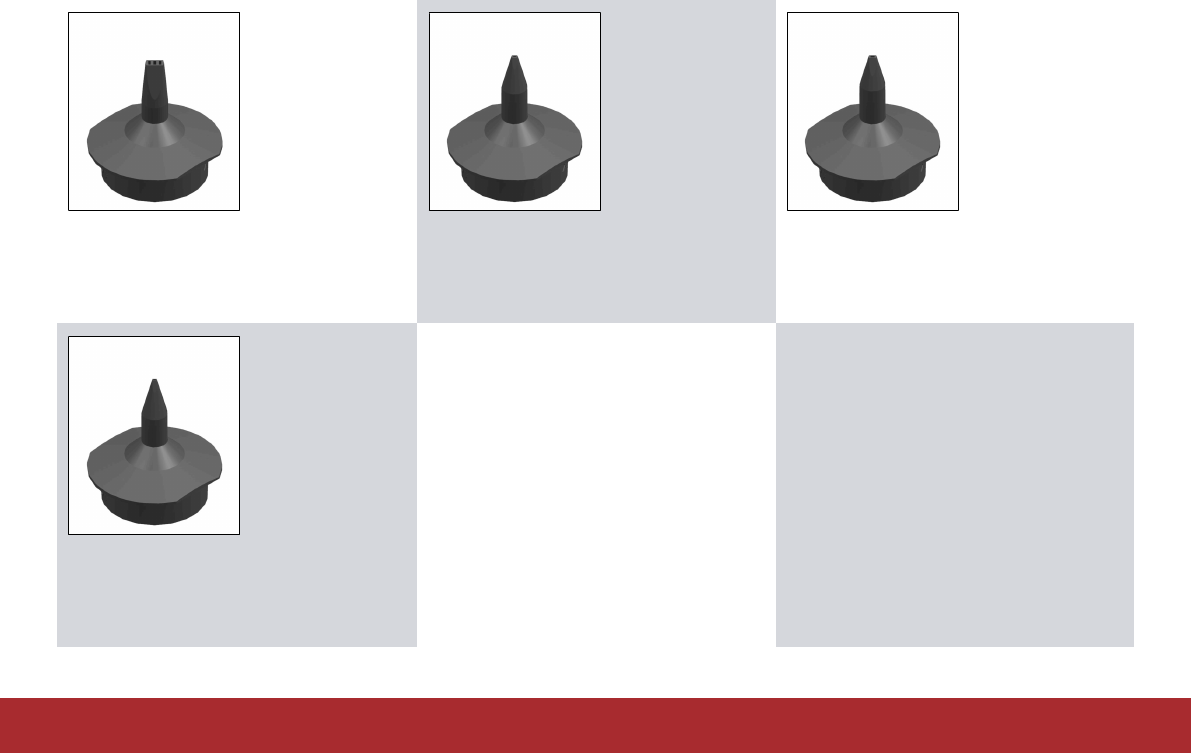

Standard Nozzles in the 1xxx Series (Ceramic)
1007
L = 9.800 mm
Tip: 1.400 x 0.660 mm (LxW)
Item no. 03054812
1008
L = 10.400 mm
Tip: 0.470 x 0.300 mm (LxW)
Item no. 03099720
1009
L = 10.400 mm
Tip: 0.600 x 0.350 mm (LxW)
Item no. 03102963
1010
L = 10.400 mm
Tip: 0.350 x 0.175 mm (LxW)
Item no. 03107579
1 - 27
www.asm-smt.com

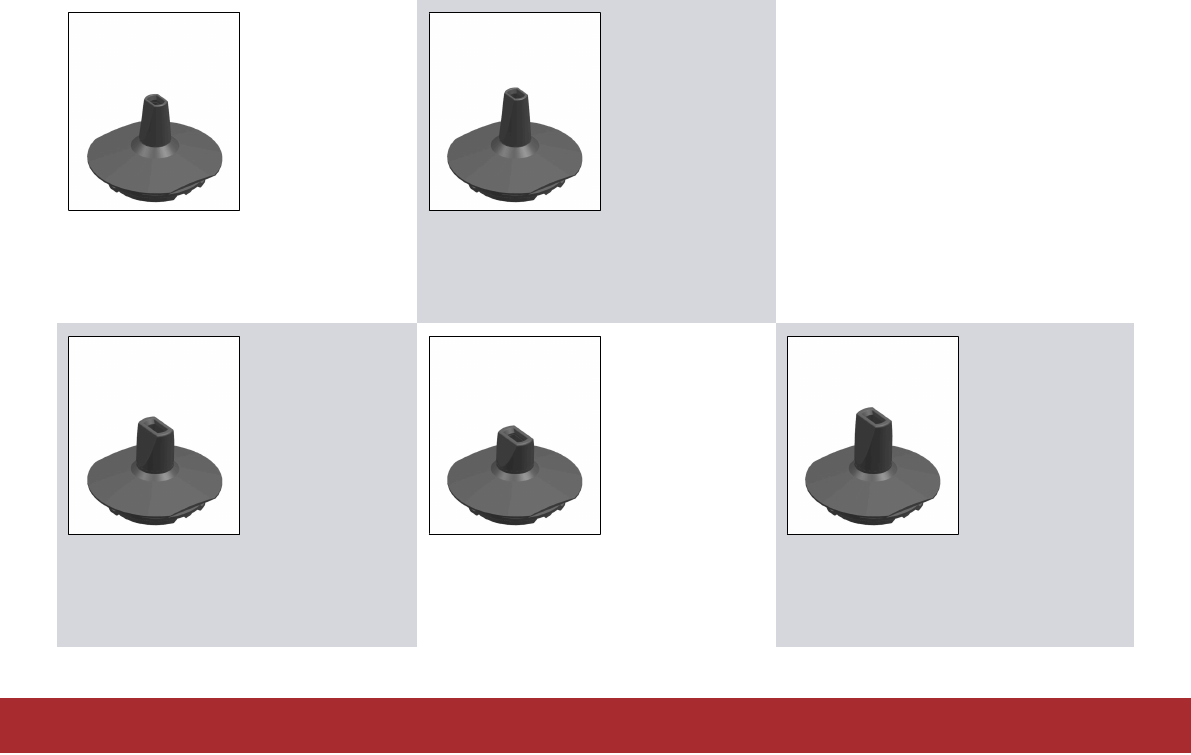

Standard Nozzles in the 4xxx Series (TPU)
4033
L = 8.700 mm
Tip: 2.200 x 1.600 mm (LxW)
Item no. 03099713
4133
L = 9.400 mm
Tip: 2.200 x 1.600 mm (LxW)
Item no. 03099716
4035
L = 8.400 mm
Tip: 3.500 x 1.900 mm (LxW)
Item no. 03099728
4135
L = 7.400 mm
Tip: 3.500 x 1.900 mm (LxW)
Item no. 03099722
4235
L = 9.400 mm
Tip: 3.500 x 1.900 mm (LxW)
Item no. 03098748
1 - 16
www.asm-smt.com

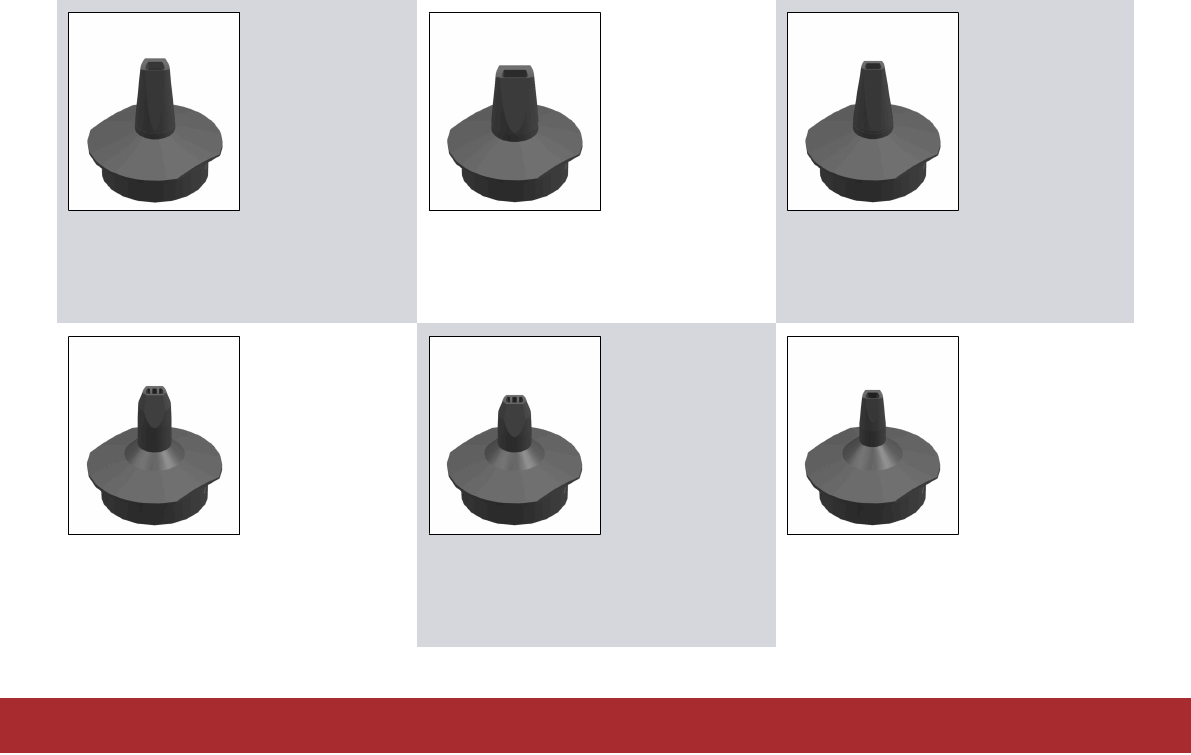

Standard Nozzles in the 1xxx Series (103x: TPU, 104x: Ceramic)
1032
L = 9.700 mm, r
tip
= 0.900 mm
Tip: 2.100 x 1.540 mm (LxW)
Item no. 03014327
1034
L = 9.000 mm, r
tip
= 1.000 mm
Tip: 2.900 x 1.650 mm (LxW)
Item no. 03013103
1036
L = 9.600 mm, r
tip
= 0.900 mm
Tip: 1.700 x 1.100 mm (LxW)
Item no. 03014331
1042
L = 9.400 mm, r
tip
= 0.750 mm
Tip: 1.760 x 1.200 mm (LxW)
Item no. 03051271
1044
L = 8.600 mm, r
tip
= 1.000 mm
Tip: 1.725 x 1.200 mm (LxW)
Item no. 03082162
1046
L = 9.050 mm, r
tip
= 0.750 mm
Tip: 1.540 x 1.100 mm (LxW)
Item no. 03084362
