Oblique Lighting for SIPLACE 80 S-20 /F4/S-23/ F5 /HS-50/HF Retrofit Instructions 05/15 Issue 8.1 Moving Out the Movable Component Changeover T able 23 8 Mounting 8.1 Moving Out the Movable Component Changeover Ta b l e …

Retrofit Instructions Oblique Lighting for SIPLACE 80 S-20 /F4/S-23/ F5 /HS-50/HF

7.1 Contents of Retrofit Kit 05/15 Issue

7Overview

Oblique lighting usually noticeably improves recognition where bright fiducials (reference marks)

on a light base material are concerned (ceramic with fiducials made of Au, Cu, AgPl and bright

copper marks in case of CEM1). In individual cases, fiducials on a light background that are cov-

ered with solder resist may also be easier to recognize.

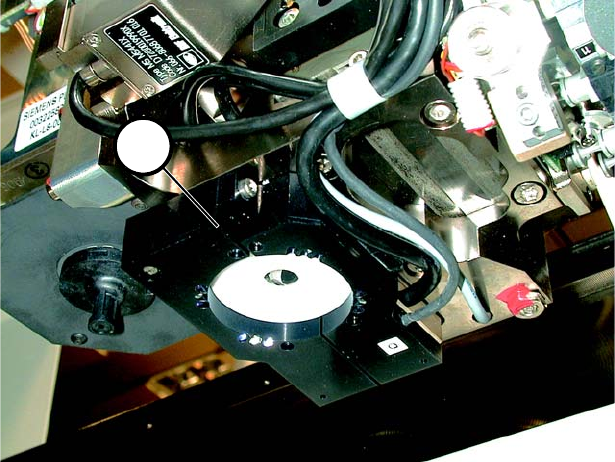

Fig. 7.0.1 Oblique Lighting Ready for Operation

7.1 Contents of Retrofit Kit

– Oblique lighting blue 00116172-01

– Retrofitting Instructions 00192211-01

Oblique Lighting for SIPLACE 80 S-20 /F4/S-23/ F5 /HS-50/HF Retrofit Instructions

05/15 Issue 8.1 Moving Out the Movable Component Changeover Table

8 Mounting

8.1 Moving Out the Movable Component Changeover

Table

(Note: You will find detailed instructions in the User Manual for the placement machine.) 8

► Turn the placement machine ON at the main switch.

► Open the safety hood protecting gantry 1.

► Unlock and lift the movable component changeover table and move it out as far as possible

without damaging the cables.

► Turn the placement machine OFF at the main switch.

► Run cable and hose connections to the movable component changeover table.

► Pull the movable component changeover table all the way out.

8.2 Moving Out the Component Changeover Table

(Note: There are detailed instructions in the User Manual for the placement machine.)

► Unplug the power connector for the component changeover table.

► Unplug the communications connector.

► If necessary, disconnect the coupling for the component changeover table compressed air sup-

ply.

► Push the pallet jack under the component changeover table.

► Loosen the 2 socket hex head screws fastening the component changeover table.

► Open the horizontal clamping devices.

► With the pallet jack, lift the component changeover table carefully until the centering pins are

no longer in the holes.

► Now move the component changeover table out.

Retrofit Instructions Oblique Lighting for SIPLACE 80 S-20 /F4/S-23/ F5 /HS-50/HF

8.3 Installing the Oblique Lighting 05/15 Issue

8.3 Installing the Oblique Lighting

► Undo the 5 screws and remove the cover from the placement head.

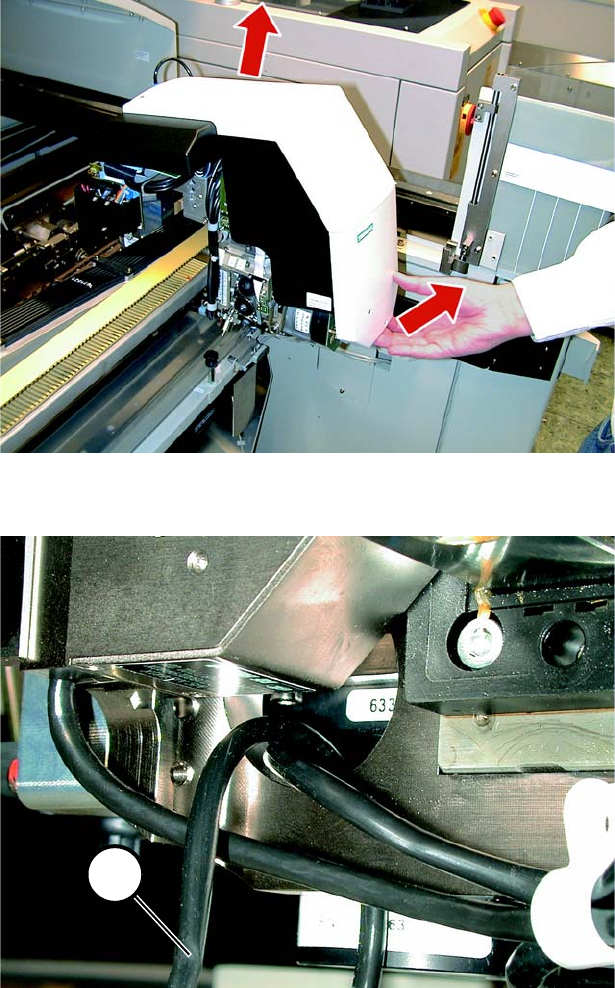

Fig. 8.3.1 Removing the Cover

Fig. 8.3.2 Important: Laying the Cable between Oblique Lighting and PCB Camera

► S23: Lay the 2-core cable (1 in Fig. 8.3.2 and 8.3.3) up into the camera and to the left through

the opening. The cable must be laid like this otherwise it would be pinched by the head support.
