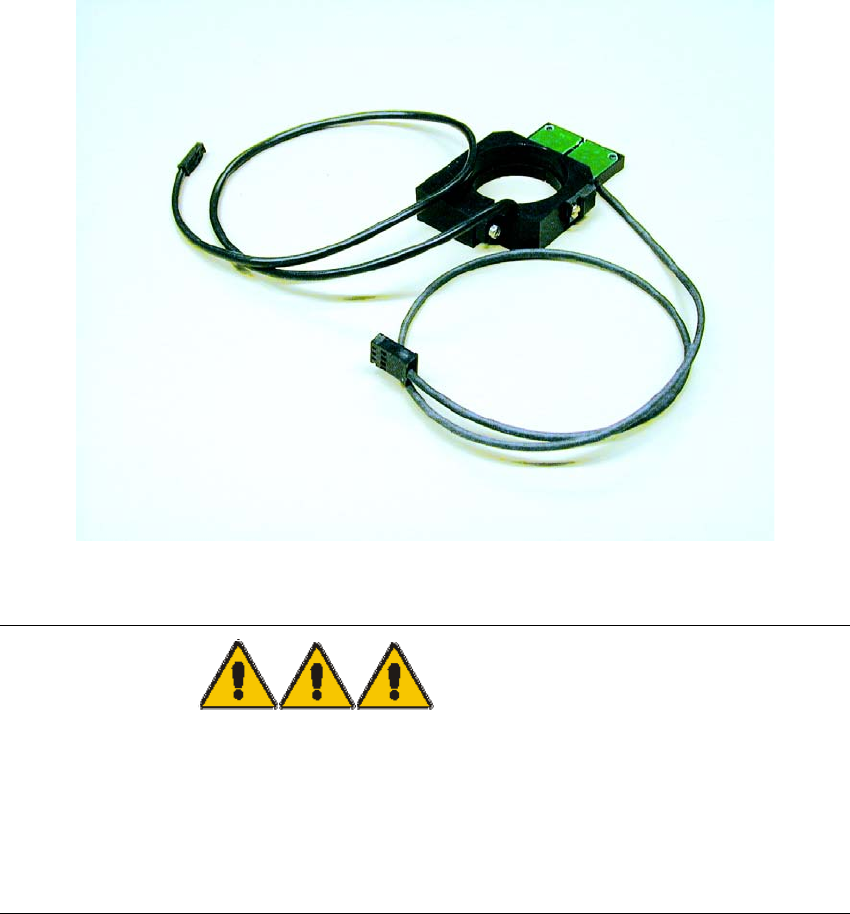

Oblique Lighting for SIPLACE 80 S-20 /F4/S-23/ F5 /HS-50/HF Retrofit Instructions 05/15 Issue 8.3 Installing the Oblique Lighting 27 ► HS50: Fasten the 2 cables to the existing came ra cable s and run them upward to th e…
Retrofit Instructions Oblique Lighting for SIPLACE 80 S-20 /F4/S-23/ F5 /HS-50/HF
8.3 Installing the Oblique Lighting 05/15 Issue
26
8
Fig. 8.3.5 Locking Screw
► S23/HS50: Fasten the oblique lighting in place with the locking screw (1 in Fig. 8.3.5). Please
be careful not to damage the label.
8
Fig. 8.3.6 Laying Cable using Cable Clamps
► S23: Unscrew the cable clamp (1 in Fig. 8.3.6) and push in both cables (2 in Fig. 8.3.6). Re-
fasten the cable clamp without pinching a cable. Proceed in the same manner with the other
cable clamps.
1
1
2
Oblique Lighting for SIPLACE 80 S-20 /F4/S-23/ F5 /HS-50/HF Retrofit Instructions
05/15 Issue 8.3 Installing the Oblique Lighting
27
► HS50: Fasten the 2 cables to the existing camera cables and run them upward to the head
PCB.
8
Fig. 8.3.7 Laying Cable Upward
DANGER to eyesight 8
► Invisible LED radiation.
► Do not look directly into the beam, not even with optical instruments. Damage to or loss of eye-
sight may result.
► LED Radiation Class 3b and 2 as per EN 60825-1:94.
8
► S23/HS50: Lay the 2 cables (1+2 in Fig. 8.3.7) upward as shown and also fasten them in place
with cable clamps (3 in Fig. 8.3.7).
Retrofit Instructions Oblique Lighting for SIPLACE 80 S-20 /F4/S-23/ F5 /HS-50/HF
8.3 Installing the Oblique Lighting 05/15 Issue
28
8
Fig. 8.3.8 S23: Connection of the Cable
► S23: Plug the 2-pin connector (1 in Fig. 8.3.8) onto the 2 pins X5 of the head PCB. Make certain
that the bottom cable is red.
8
Fig. 8.3.9 Fastening the 2 Cables in Place
► S23/HS50: Run back the end of the 9-pin cable for the oblique lighting (2 in Fig. 8.3.9) (this 8-
pin cable is not needed).
► HS50: Fasten the 9-pin cable for the standard lighting as well.
1
1
2
