2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits 07/2010 Edition 202 In the case of an IC camera with FS ≥ 04 you must plug this CAN bus cable (03050239-) between the CAN bus…
Head Reconfiguration Kits 2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits
07/2010 Edition
201
2.12.2.3 From machine serial number B326 and "CO camera, stat. P&P (TYPE33) 55x45
digit."(item no.: 03016339-) >= 04
: Pull the three (power supply, CAN bus cable and Hotlink cable) connecting cables for the IC
camera (or five in the case of installation of the FC camera) out of the machine frame.
: Connect the three cables to the camera. More precise information about this can be found in
the appendix of Chapter 2.15 ”Circuit diagrams”, stationary camera for machines of serial num-
ber
≥ B326.

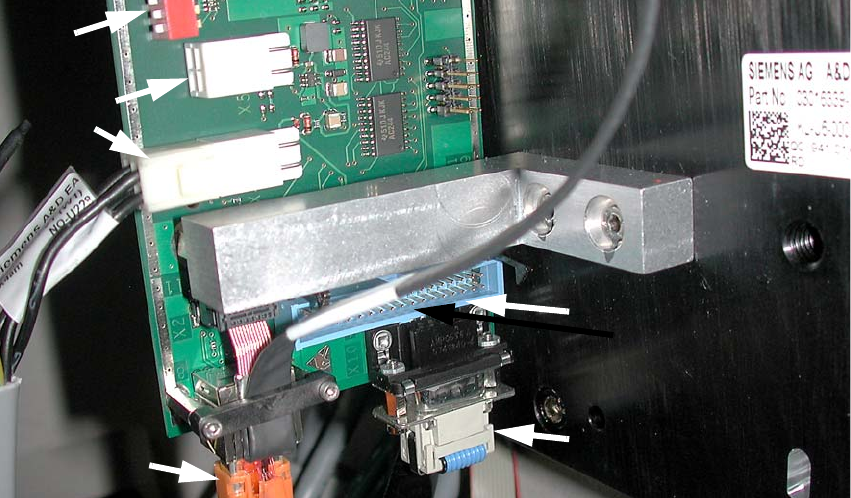

Fig. 2.12 - 2 IC camera with production status
≥
04
2
2
2
2
2
2
2
2
2
2
2
Hotlink cable
(camera bus)
Power supply
Vision control
(Cable from the vision control
unit)
CAN bus cable
2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits
07/2010 Edition
202

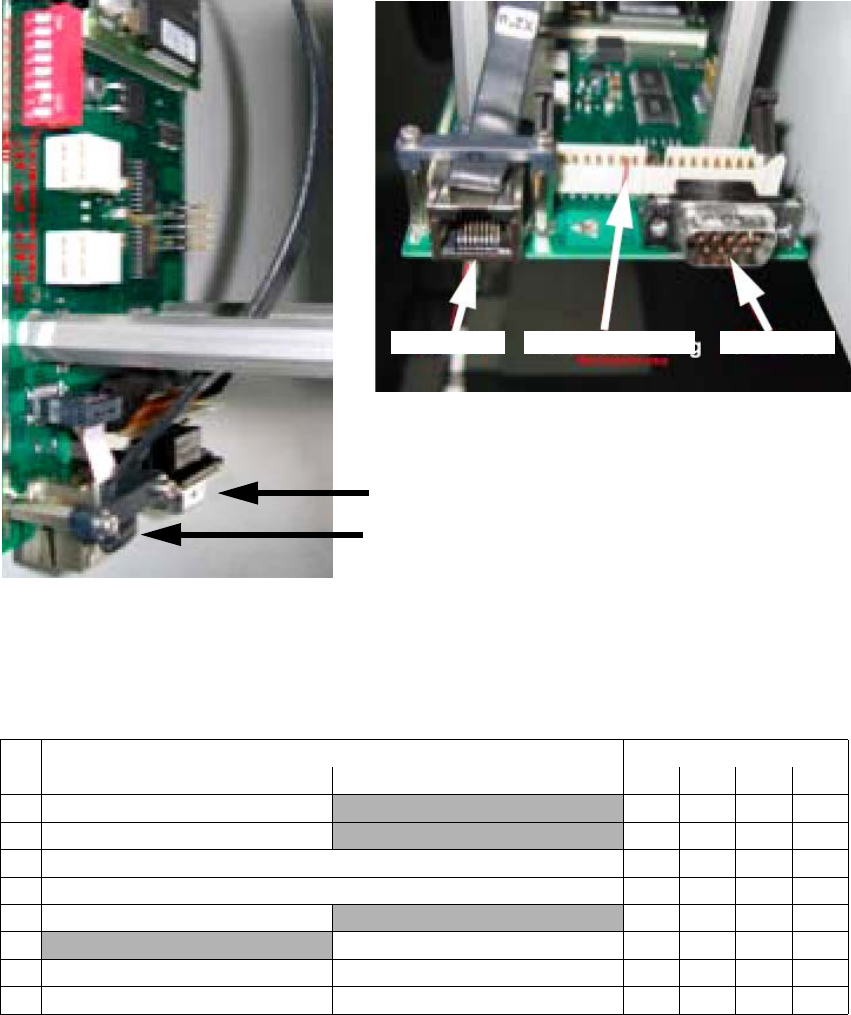

In the case of an IC camera with FS ≥ 04 you must plug this CAN bus cable (03050239-) between
the CAN bus cable of the machine wiring harness and the component trolley docking unit (MTC
drawer frame) X1*5. The X10*m plug is plugged into the camera. 2
2
2
2.12.2.4 Adjustment of the camera-ID (DIP switch configuration FS 04 and larger
2
2
CAN bus
Hotlink
View from below
Vision controller 2 CAN bus 2Hotlink 2
DIP switch Gantry
No.ON OFF 1234
Bootstrap
—
1Reset —
1 Gantry ID 0 Off On Off On
1 Gantry ID 1 Off Off On On
1 Code 1
—
1
With CAN terminating resistor Without CAN terminating resistor
1 CAN speed 1 MBit/s CAN speed = 500 kBit/s
1 IC camera FC camera
Head Reconfiguration Kits 2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits
07/2010 Edition
203
2.12.3 Flip-chip camera
: To install the FC camera, please read the assembly instructions for the flip-chip camera, SI-
PLACE X series (item no.:00194554-).
The FC camera can be fitted and connected up in the same way. 2

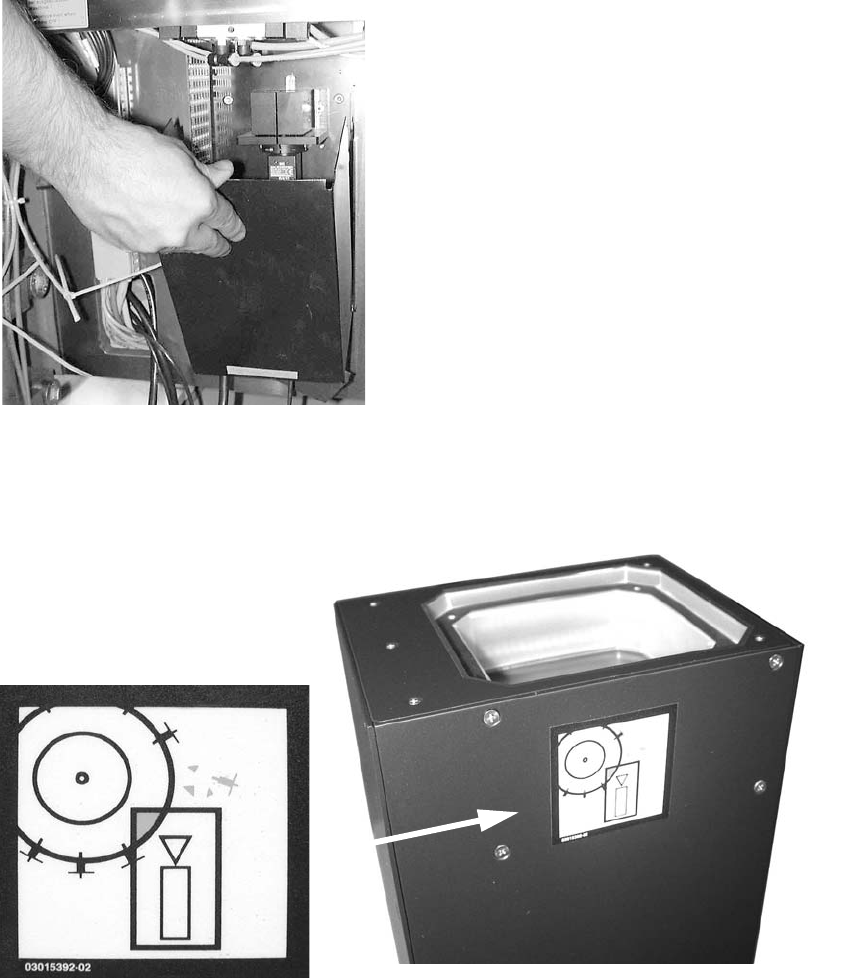

: Place the supporting frame for the camera on the base plate such that it engages below with
the recesses.
: Use the machine spirit level to check that the camera is aligned horizontally.
: Attach the "Risk of head crash" warning label to the body of the camera as shown below (if it
is not already attached).
