Head Reconfiguration Kits 2 Assemb ly Instructions - SIPLACE X-Series Head Reconfiguration Kits 07/2010 Edition 207 : Attach the CAN bus to X2. : Attach the black camera cable to the VISION control unit. : Changeover the…

100%1 / 276
2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits
07/2010 Edition
206
: Changeover the DIP switch on the "Control unit 1, vision stationary" (item no. 00363961-) :
– for a sub-distributor (SD): 5 and 6 to ON, the others to OFF. 2
– for a main distributor (MD): 6 to ON, the others to OFF. 2
2.12.4.3 Machine serial number =< B325 and IC camera version < FS04 (FC camera < FS03)
TQM167 SIPLACE Embedded module" item no. 03003536- to the "Control unit 1 Vision station-
ary" (item no. 00363961-) is required. This TQM module may need to be ordered separately. 2
: Mount "Control unit 1 Vision stationary" (item no. 00363961-) in the appropriate slot.
– The vision control unit for placement area 1 is located in the main distributor (location 4).
– The vision control unit for placement area 2 is located in the main distributor (location 2).
: Plug the TQM module on the board "Control unit 1 Vision stationary" (item no. 00363961-).
2
CAUTION: After power up of the machine, also check the BIOS and application version of the
vision and perform a download, if necessary.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Head Reconfiguration Kits 2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits
07/2010 Edition
207
: Attach the CAN bus to X2.
: Attach the black camera cable to the VISION control unit.
: Changeover the DIP switch on the "Control unit 1 Vision stationary" (item no. 00363961-) :
– for a sub-distributor (SD): 5 and 6 to ON, the others to OFF.
– for a main distributor (MD): 6 to ON, the others to OFF.
2

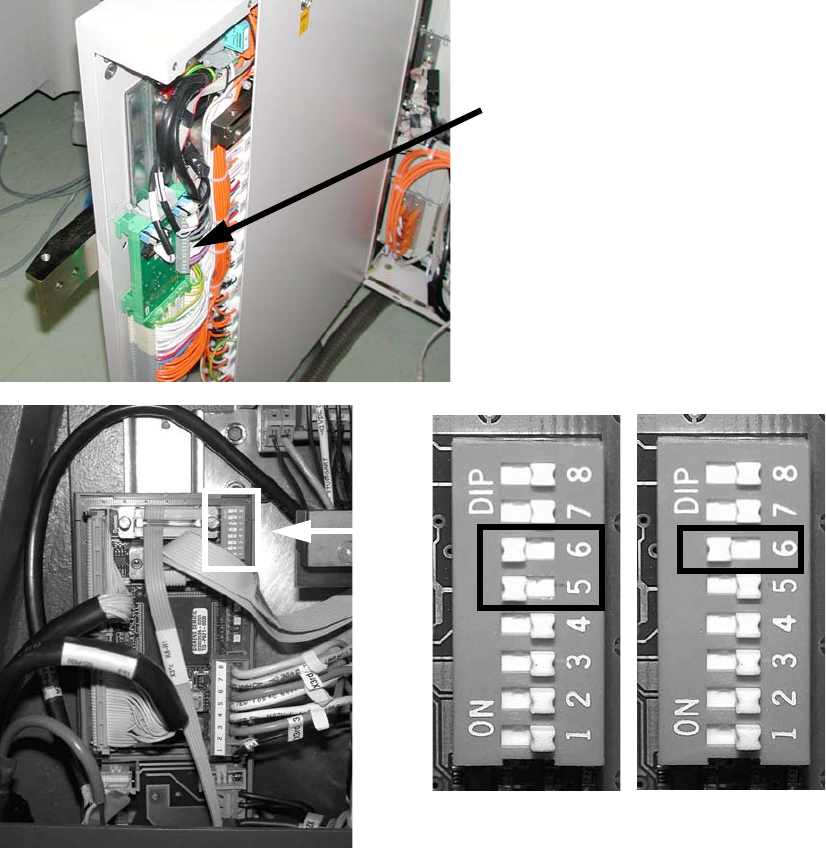

See picture below or Chapter 2.15 ”Circuit diagrams” for machines up to serial number B325 (ig-
nore comments) 2
2
2
Control cable
for the vision control unit
SUB 2
MAIN 2
2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits
07/2010 Edition
208

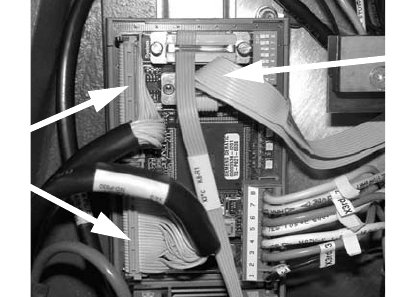

: Check whether the CAN bus connector and the ribbon cable for the camera connection are
plugged in.
CAN bus connector
Camera cable
