2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits 07/2010 Edition 218 : S tart by fitting the inner T winHead module (mo dule 1) with four screws (because these scre ws are mo…
Head Reconfiguration Kits 2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits
07/2010 Edition
217
: Fit the strain relief (cable support, P&P head, item no.: 03005195-) to the new board (the push-
button must be on the outside of the gantry).
2
: Plug in the new cables as follows:
the shorter cables on the inner (rear) module, the longer cables on the outer module, the very
short cables at the bottom, the longer cables on top.
2
2
2
2
2
2
2
2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits
07/2010 Edition
218
: Start by fitting the inner TwinHead module (module 1) with four screws (because these screws
are more easily accessible).
Make sure that the screws are the right length and that you are using the correct torque:
DIN912 M4x14 - 8.8(item no.: 00095021-), tightening torque: 2.7 Nm.
2
2
: Before attaching the outer module (module 2) to the head, insert the screws into the holes be-
tween the modules.
: Screws on the outer module , turned through 180° around the D axis.
2

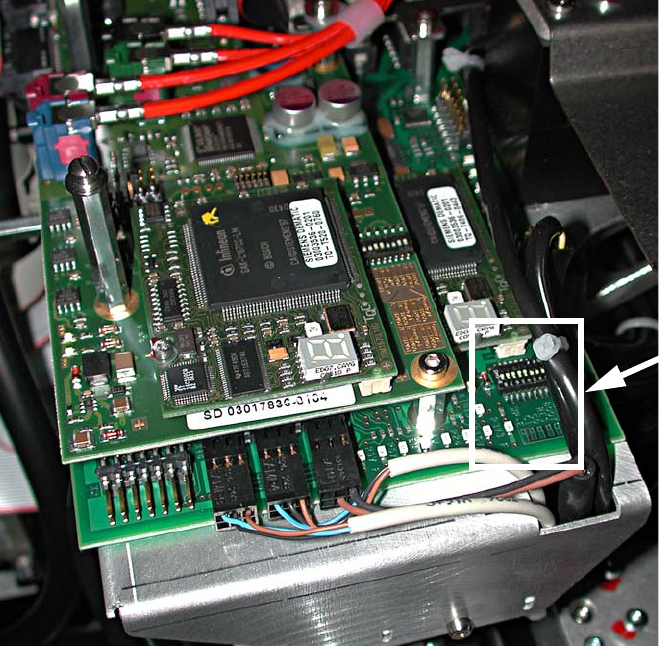

: Check the jumper settings on the C500 head interface board.
2
Jumper
Gantry
1
Gantry
2
Gantry
3
Gantry
4
1
0 1 0 1 Gantry ID0
2
0 0 1 1 Gantry ID1
3
0 0 0 0 120 Ohm CAN terminating resistor
4
0 0 0 0 Boot
5
0 0 0 0 Reset
6
0 0 0 0 CAN ID0
7
0 0 0 0 CAN ID1
8
0 0 0 0 Write protect deactivated
Head Reconfiguration Kits 2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits
07/2010 Edition
219
: If problems occur with the CAN bus, measure the resistance between pin 7 (CAN High) and
pin 2 (CAN Low). It should be 60 Ohm.
2
2.12.8 Connections on the compressed air distributor
There are currently two different pneumatic distributors available depending on the cable and
hose carrier installed:
– Use the old cable and hose carrier on CFK gantries 02 and 04 for the old pneumatic distributor
and
– the new pneumatic distributor for the "CFK 06 gantry, new cable and hose carrier". These new
distributors are prepared for the vacuum pump on the C&P 20 head option.
Jumper
position
