Head Reconfiguration Kits 2 Assemb ly Instructions - SIPLACE X-Series Head Reconfiguration Kits 07/2010 Edition 241 2 : Attach all of the compr essed air hoses. 2 2 Plug QSC-6H Item no . 00337891- Plug QSC-4H Item no . 0…
2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits
07/2010 Edition
240

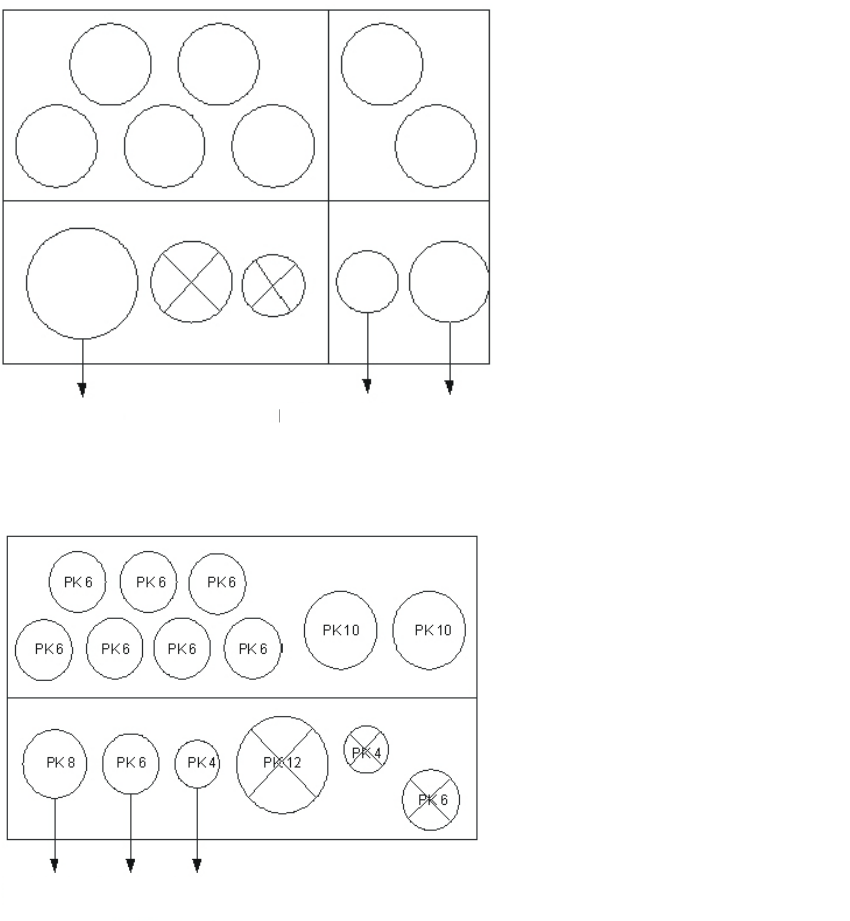

2.13.6 Connections on the compressed air distributor
There are currently two different pneumatic distributors available depending on the cable and
hose carrier installed:
– Use the old cable and hose carrier on CFK gantries 02 and 04 for the old pneumatic distributor
and
– the new pneumatic distributor for the "CFK 06 gantry, new cable and hose carrier". These new
distributors are prepared for the vacuum pump on the C&P 20 head option.
2
Gantries CFK 02 and CFK 04
Gantry CFK 06
Pneumatic distributor back
Input:
7x pneumatic hose (PK6)
2x pneumatic hose
vacuum pump option (PK10)
Pneumatic distributor front
Output:
C+P 20 head
Pneumatic distributor back
Input:
7x pneumatic hose
Pneumatic distributor front
Output:
C+P 20 head
Return cylinder
Pressure
control valve
Holding
circuit
Holding
circuit
Return
cylinder
Pressure
control valve
Head Reconfiguration Kits 2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits
07/2010 Edition
241
2

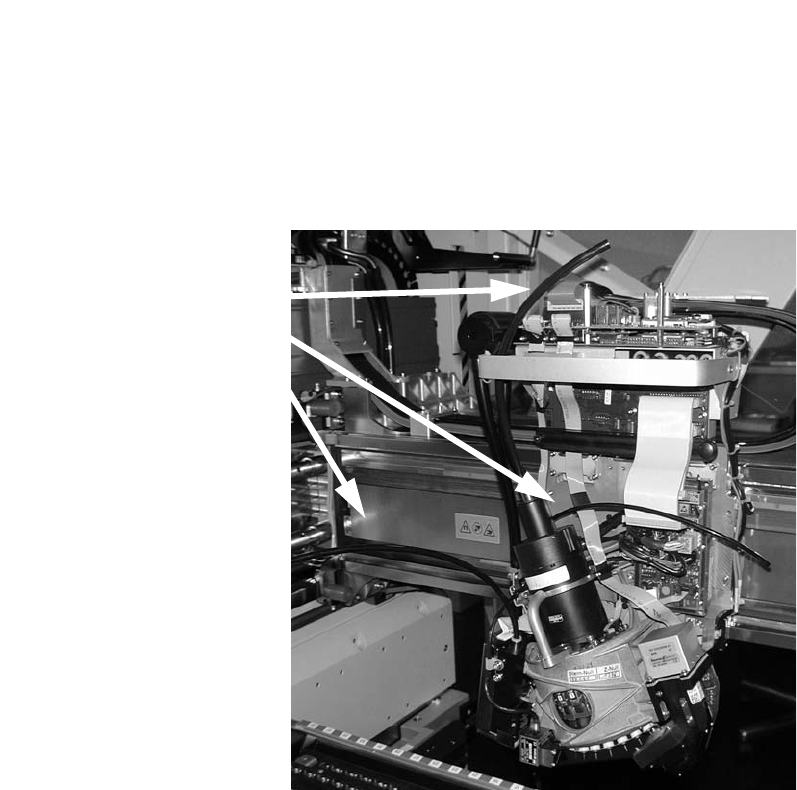

: Attach all of the compressed air hoses.
2
2
Plug QSC-6H Item no. 00337891-
Plug QSC-4H Item no. 00330249-
Plug QSC-8H Item no. 03010908-
Plug QSC-10H Item no. 00324874-
Plug QSC-12H Item no. 03015210-
Attach compressed
air hoses
2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits
07/2010 Edition
242
: Connect the two ribbon cables.
2
: Switch the placement machine on at the main switch.
: Plug a USB stick or another suitable storage medium into the USB slot on the station computer.
2
: Save the machine data from the storage medium to the station computer.
Connect the
ribbon cables
USB stick
