Service Work
Modular Conveyor Replacing the Complete Lifting Table Cylinder [00358703]
128 Service Manual SIPLACE D4
4.4.9 Replacing the Complete Lifting Table Cylinder [00358703]
Overview
Removal
DANGER: Press the EMERGENCY
STOP!
Before performing adjustment work
you must ensure that the lifting table
has been secured against movement.
Legend
1. End position proximity switch
2. Lifting table cylinder
3. Piston rod with locknut
4. Solenoid valve
X Move the PCB conveyor to the position which
gives you best access to the lifting table.
X Move the Y gantries into the area outside the
PCB conveyor.
X Switch off the machine and secure it to prevent
unauthorized reactivation.
X Switch off the compressed air supply.
4
1
3
2
X Loosen the screw fastening the lifting table
plate and remove the lifting table plate from the
lifting table unit.
X Loosen the fastening screws for the solenoid
valve (4) and remove it from the lifting table
cylinder.
X Loosen the grub screw at the end position
proximity switch (1) and push the end position
proximity switch out of the lifting table cylinder
guide rail (2).
X Loosen the locknut on the piston rod (3) and
twist the piston rod out until it releases itself
from the actuator.
X Loosen and remove the two screws fastening
the lifting table cylinder (2).
4
1
3
2

Service Work
Replacing the Lifting Table Stabilizer (Stabilizer Unit) [00358684-xx] Mod ular Conveyor
Service Manual SIPLACE D4
129
Installation
4.4.10 Replacing the Lifting Table Stabilizer (Stabilizer Unit) [00358684-xx]
Overview
Tools and equipment required
Torque wrench with plug-in ratchet [00386175-xx]
Plug-in wrench 16 mm [00386177-xx]
X Insert and fasten the new lifting table cylinder
(2) and install the piston rod (3).
X Move the lifting table by hand to its end
position.
X Switch the machine on.
X Push the end position proximity switch (1) into
the guide rail until the LED lights up.
X Fix this position with the grub screw.
X Install the solenoid valve (4) and the lifting
table plate.
X Check the speed of the lifting table and correct
where necessary.
4
1
3
2

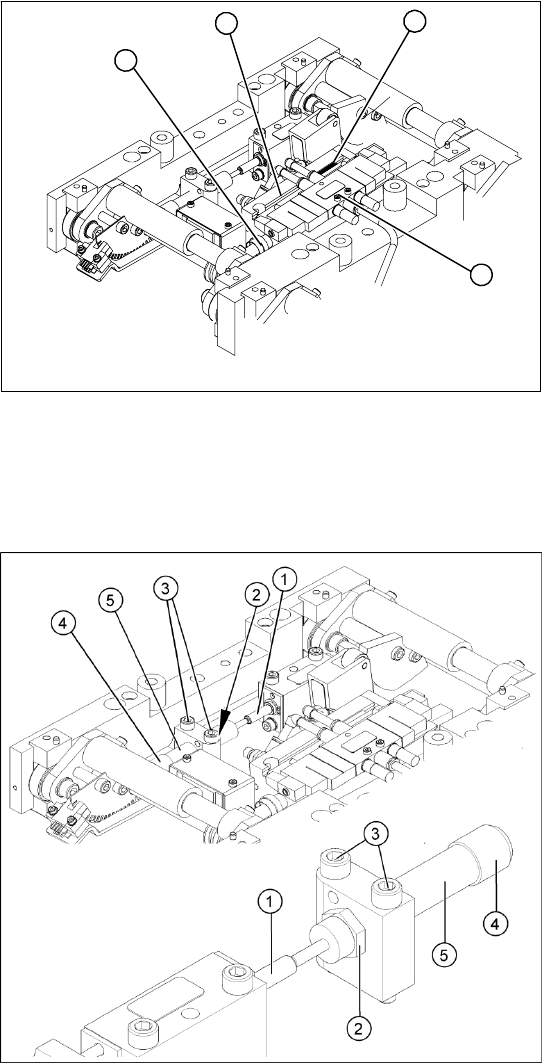

Legend
1. Actuator
2. Locknut
3. Fastening screws
4. Handle
5. Stabilizer [00358684-xx]
The stabilizer enables the lifting table to be moved
gently upwards. It prevents the PCBs from being
clamped in with too much impact.
The stabilizer consists of the shock absorber
[00367737-xx] and the damping block [00367782-
xx].

Service Work
Modular Conveyor Replacing the Lifting Table Stabilizer (Stabilizer Unit) [00358684-xx]
130 Service Manual SIPLACE D4
Removal
Installation and adjustment
X Move the PCB conveyor to the position which
gives you best access to the lifting table.
X Move the Y gantries into the area outside the
PCB conveyor.
X Switch off the machine and secure it to prevent
unauthorized reactivation.
X Loosen the screws fastening the lifting table
plate and remove the lifting table plate from the
lifting table unit.

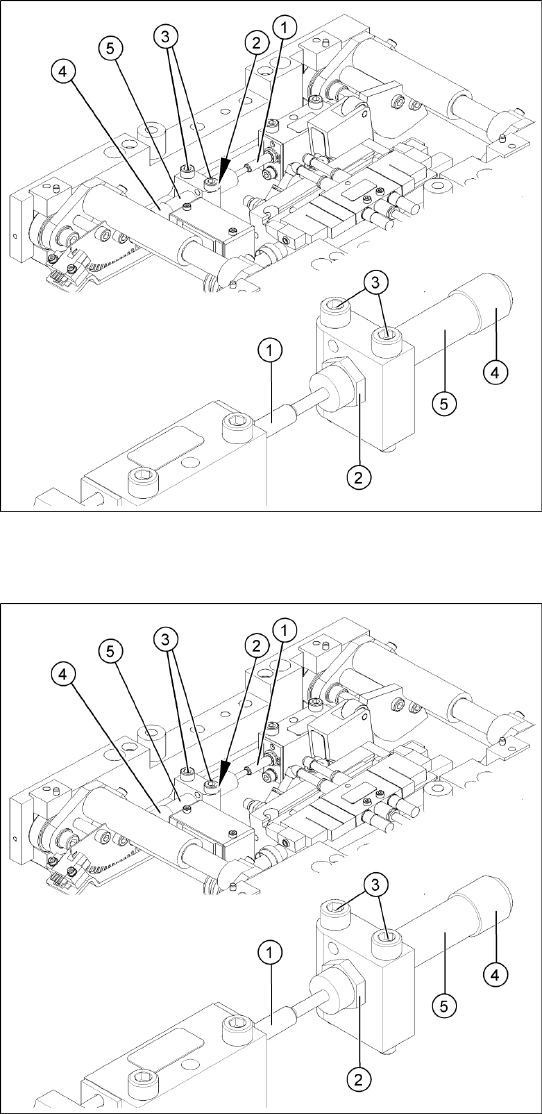

X Loosen the two screws (3) holding the
stabilizer (5).
X Undo the locknut (2) and take the stabilizer by
its handle (4), twisting it out of the mounting
block.
X Insert and twist the new stabilizer (5) until the
plunger just touches the actuator (1), so that
the lifting table can be gently moved upwards.
X Use a torque wrench:
Secure this position with the locknut (2)
tightened to 8Nm.
X Check whether the stabilizer has been fixed
onto the mounting block with the locknut and
that the stabilizer plunger has a gap of approx.
0.1 mm to the actuator (gap in untriggered
mode). In this default setting, the lifting table
should move up gently.
X If this is not the case, loosen the locknut and
turn the stabilizer approx. one rotation into the
mounting block.
X Fit the lifting table plate.
X Start SITEST and move the lifting table up.
X The lifting table should move up gently i.e. you
should not hear the PCB clamping device
audibly locking into place and no clamping
device error messages should be issued.
X Check the speed of the lifting table cylinder
and correct where necessary.
