Service Work Modular Conveyor Replacing the Light Bar riers for Transmitter and Receiver Modules [00370063] 138 Serv ice Manual SIPLACE D4 4.4.16 Replacing the Light Barriers for T ransmitter and Receiver Modules [003700…
Service Work
Replacing the Proximity Switch for the Adjustment System [00363268] Modular Conveyor
Service Manual SIPLACE D4
137
4.4.15 Replacing the Proximity Switch for the Adjustment System [00363268]
Parts
Proximity switch for adjustment unit 1 [00363268]
Proximity switch for adjustment unit 2 [00363292]
Overview
X Move the PCB conveyor to the position which gives you best access to the adjustment system.
X Move the Y gantries into the area outside the PCB conveyor.
X Switch off the machine and secure it to prevent unauthorized reactivation.
X Switch off the compressed air supply.
Removal/Installation
The proximity switch serves as a signal for
controlling the pneumatic valve of the adjustment
unit. Once the switching point has been reached,
the conveyor side is connected via the short-
stroke cylinder.

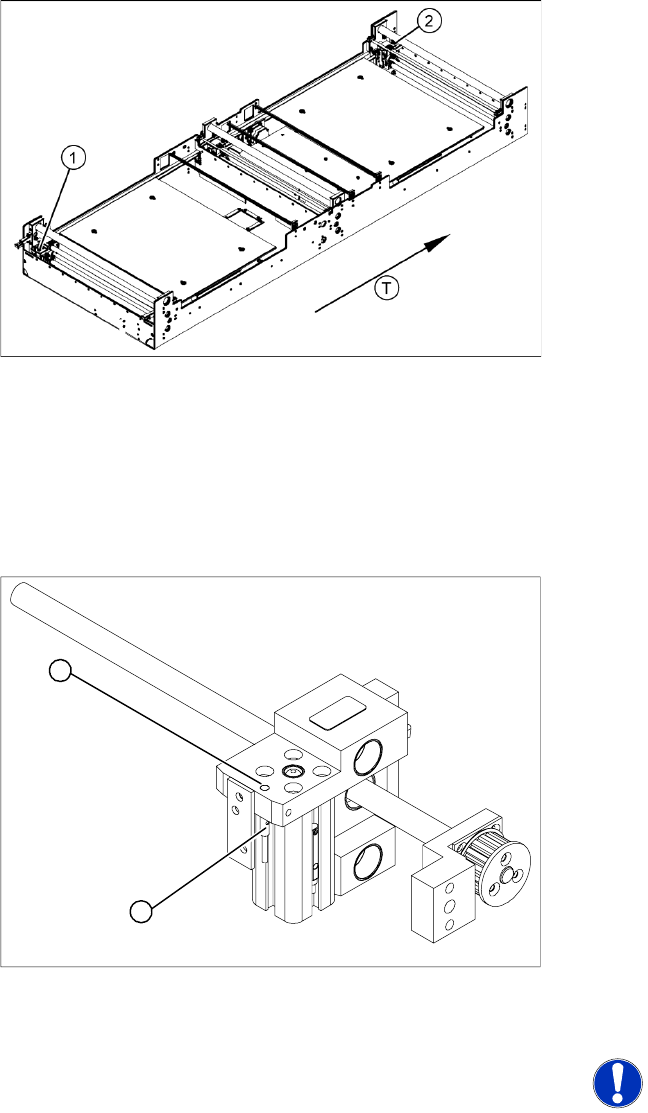

Legend
1. Adjustment unit 1
2. Adjustment unit 2
T = transport direction
X Loosen the grub screw on the clamping device
(1) and unthread the connection cable as far
as the conversion board of the assembly tray.
X Fit the new proximity switch and reconnect the
system to the electrical supply.
X Fix the proximity switch with the grub screw.
X The grub screw must be tightened with a
tightening torque of 20 Ncm (+ 3Ncm). The
proximity switch must to lie flat with the
housing (2) of the adjustment unit.
X The switching point is set at the actuator on the
conveyor side:
X Move the adjustment unit until it is under the
conveyor side.
X Place a 4/10 mm distance gauge on the
adjustment unit, press the actuator onto the
distance gauge and tighten the screw.
NOTE:
This setting must be performed at all
conveyor sides.
X Use the SITEST program to calibrate the
conveyor sides.
2
1
Service Work
Modular Conveyor Replacing the Light Barriers for Transmitter and Receiver Modules [00370063]
138 Service Manual SIPLACE D4
4.4.16 Replacing the Light Barriers for Transmitter and Receiver Modules [00370063]
Parts
Please note the different item numbers for the individual light barriers - these are for the different lengths
of the connection cable.
Please consult the parts catalogue for the individual article numbers.
Overview
Legend
1. Transmitter at input conveyor
2. Receiver at input conveyor
3. Transmitter at placement area 1
4. Receiver at placement area 1
5. Transmitter at intermediate conveyor
6. Receiver at intermediate conveyor
7. Transmitter at placement area 2
8. Receiver at placement area 2
9. Transmitter at output conveyor
10. Receiver at output conveyor
10
9
8
7
1
6
5
4
3
2
NOTE: Important instructions for replacing the light barrier
The transmitters are installed on the moveable side of conveyor models, while the receivers are
on the fixed side (applies to the standard conveyor system, fixed side - right).
Check whether it would be helpful to feed in the new cable with the aid of the old one, at least
in some areas.
The connection plug is equipped with contacts, which are pressed onto the wires. You may find
it helpful to remove the contacts from the connection plug, in order to run the cable better
through openings.
For replacement purposes, the connection cable must be unthreaded as far as the relevant
conversion board of the conveyor side. This might be somewhat complicated depending on the
routing of cables inside the machine base.
X You may wish to contact SIPLACE Service re
garding this work or proceed as follows.
Service Work
Replacing the Light Barriers for Transmitter and Receiver Modules [00370063] Modular Conveyor
Service Manual SIPLACE D4
139
4.4.16.1 Replacing the Transmitter or Receiver for Placement Areas 1 + 2
Receiver:
X Remove the stop rail.
X Remove the short guide rail.
X Dismantle the holder and the receiver.
X Dismantle the receiver from the holder.
X Unthread the connection cable as far as the relevant conversion board of the conveyor side.
X Unplug the conversion board of the conveyor side.
X Rerun the connection cable accordingly and reconnect the conversion board of the conveyor side to
the power supply.
X Fix the receiver at the holder.
X Fix the holder, together with the receiver, to the base so that the holder lies flat on the base.
X Mount the short guide rail and align it.
X Mount the stop rail.
Transmitter:
X Dismantle the holder and the receiver.
X Dismantle the receiver from the holder.
X Unthread the connection cable as far as the relevant conversion board of the conveyor side.
X Unplug the conversion board of the conveyor side.
X Rerun the connection cable accordingly and reconnect the conversion board of the conveyor side to
the power supply.
X Fix the new light barrier in the original position.
