Service Work
Replacing the C&P12 Head (D4) C&P12 Placement Head
Service Manual SIPLACE D4
147
4.5 C&P12 Placement Head
4.5.1 Replacing the C&P12 Head (D4)
Overview
Removal

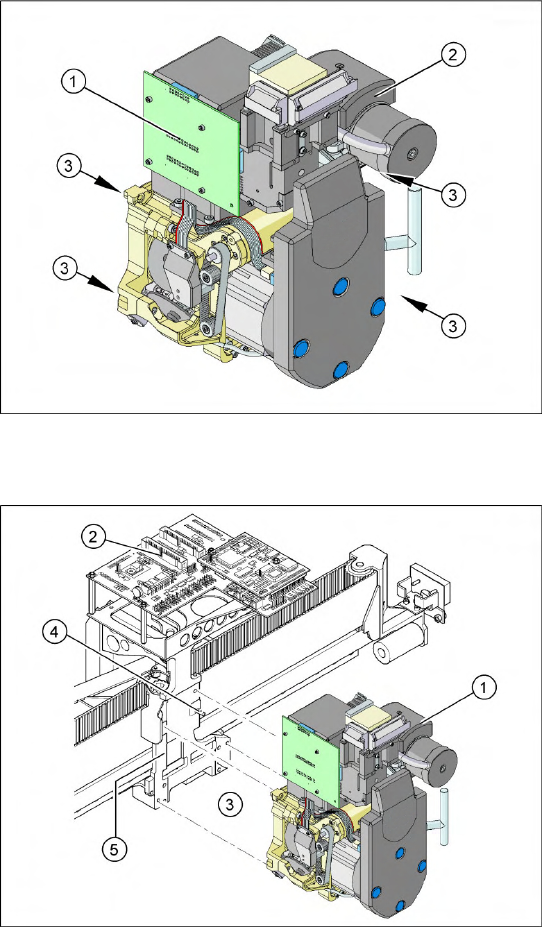

Legend
1. Illumination controller
2. Vacuum generator
3. 4 x fastening screws
Item number
C&P head DLM3 with 12 segments
[03041228-xx] (C&P12 head)
X Remove the compressed air hoses from the
pneumatic coupling of the pneumatic
distributor (1).
X Loosen the press-fit connection to the head
board (2) from the C&P head.
X Loosen the 4 screws (3) fastening the C&P
head.
X Carefully pull the C&P head off the parallel
pins (4) on the head mount (5) and remove the
head from the machine.
Service Work
C&P12 Placement Head Replacing the C&P12 Head (D4)
148 Service Manual SIPLACE D4
Installation
See also:
J
6.3.1 Calibrating the C&P Head and Cameras [
J
221]

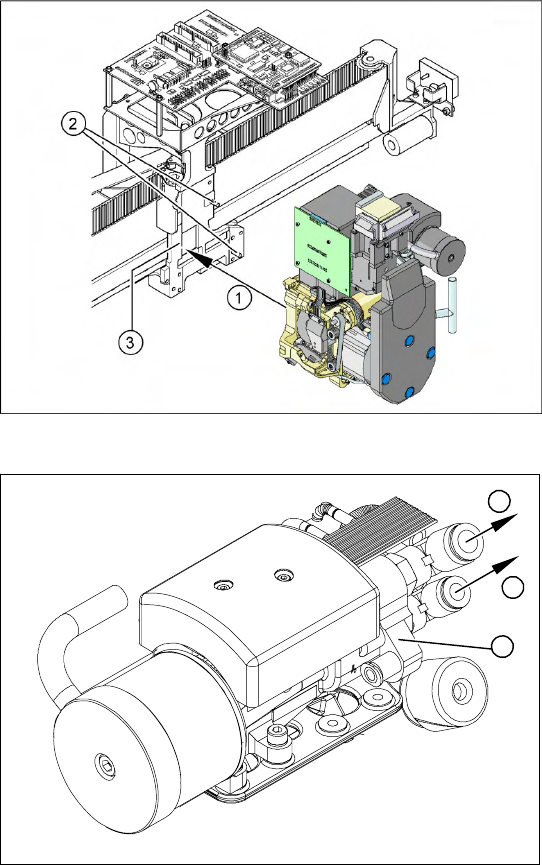

X Carefully move the C&P head towards the
head plate (3).
X Make sure that the parallel pins (2) on the
head mount slide into the holes drilled into the
back part of the C&P head.
X Carefully push the C&P head towards the
head plate until it lies flat against it.
X Fix the C&P head with the 4 screws provided
(1).
X Connect the compressed air hoses (1) to the
pneumatic coupling on the pneumatic
distributor (2).
X Reconnect to the electricity system.
X Use the SITEST program to calibrate the C&P
head.
1
1
2
Service Work
Removal/Installation of Head Front Part C&P12 Placement Head
Service Manual SIPLACE D4
149
4.5.2 Removal/Installation of Head Front Part
Removal
Legend
1. Front part
2. Back part
3. Intermediate distributor (under the cover)
4. 4 x fastening screws
X Switch off the machine and secure it to prevent
unauthorized reactivation.
X Remove the connecting cable plugs from the
sockets on the gantry head distributor or head
interface and the head adapter.
X Remove the compressed air hose for the air
blast (4).
X Loosen the four fastening screws (3).
ATTENTION: Hold on to the
placement head!
When you undo the last screw, hold the
C&P head so that it does not
accidentally drop off the back part.
ATTENTION: Make sure the star
position is correct!
When you remove the front part of the
C&P head, make sure that the star is
rotated roughly 30° or 15° out of the
vertical sleeve position. otherwise the
valve plunger will remain attached to
the valve adjustment drive.
X Pull the front part of the C&P head (1) off the
parallel pins on the back part (2) and place it
on a clean, soft surface.
