Service W ork Replacing the Valve Positioning Drive for the Placement Circuit [00368075] C&P12 Placement Head Service Manual SIPLACE D4 159 4.5.8 Replacing the V alve Positioning Dr ive for the Placeme nt Circuit [00…
Service Work
C&P12 Placement Head Replacing the Toothed Belt for the DLM Turning Station (from version 07)
158 Service Manual SIPLACE D4
4.5.7 Replacing the Toothed Belt for the DLM Turning Station (from version 07)
[00320041-xx]
Removal/Installation
NOTE:
The version 7 turning station should be available from early 2009 onwards.
4-42: Belt tensioning device for turning station DLM
Tools and equipment
Standard tool
Belt tensioning device for DLM turning station
Item No. [03063649-01]
Lubricant Isoflex Topas NCA52
Spare part: Synchroflex toothed belt 2.5 T2/90
[00320041-01]
X Remove the turning station as described in the
previous chapter.
NOTE:
X To loosen or tighten the fastening
screw on the rocker, hold the DP
station between your thumb and
index finger so that the swivel-in
rocker (1) can be moved to the left
and right.
X Remove the defective toothed belt.
X Loosen the two fastening screws (3) with a
size 0 screwdriver. Do not fully remove these
screws - leave them in the unit.
X Grease the new toothed belt slightly with
Isoflex Topas NCA52.
X Fit the new toothed belt onto the toothed
wheels.

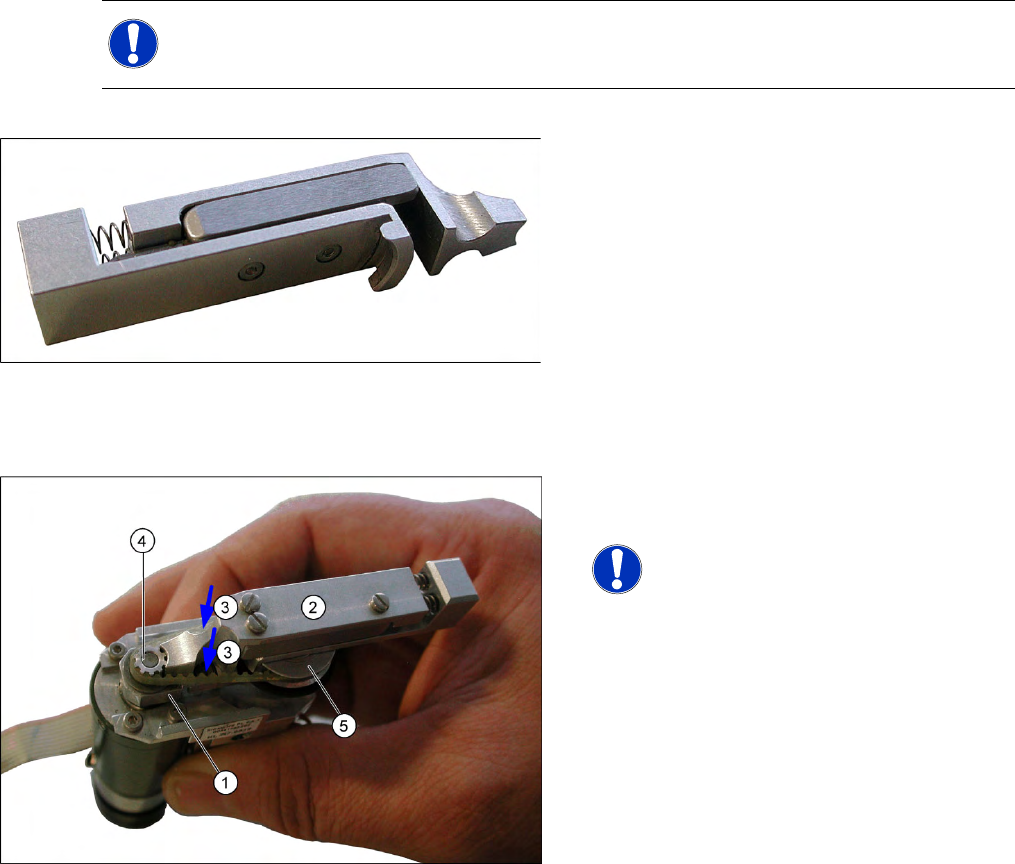

X Fit the adjustment aid (2) between the motor
drive toothed wheel (4) and the sleeve drive
wheel (5). The tension of the steel spring in the
tool sets the belt to the correct tension.
X Now tighten the two screws fastening (3) the
rocker with a size 0 screwdriver.
X Check the axis dynamics according to the
setting instructions for the machine and
relevant placement head..
X Refit the turning station as described in the
previous chapter.
Service Work
Replacing the Valve Positioning Drive for the Placement Circuit [00368075] C&P12 Placement Head
Service Manual SIPLACE D4
159
4.5.8 Replacing the Valve Positioning Drive for the Placement Circuit [00368075]
Tools and equipment
Standard tool
Distance gauge 0.2 mm [00325445-01] – used up to version 2:
Adjustment valve plunger – available from version 3, valid for DLM2 and DLM3 (use the 0.2 setting
gauge for DLM1)
Removal
4-43: C&P6/12 adjustment valve plunger

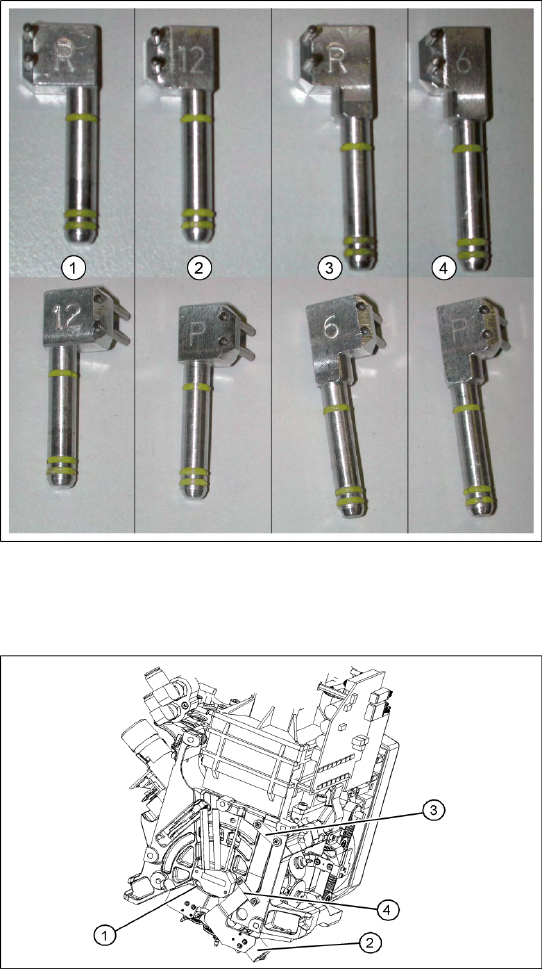

Legend
1. Adjustment valve plunger for reject circuit
C&P12 [03064290-01]
2. Adjustment valve plunger for placement circuit
C&P12 [03068816-01]
3. Adjustment valve plunger for reject circuit
C&P6 [03068854-01]
4. Adjustment valve plunger for placement circuit
C&P6 [03065628-01]
The labeling on the plungers has the following
meaning:
6 = C&P6
12 = C&P12
P = placement circuit
R = reject circuit

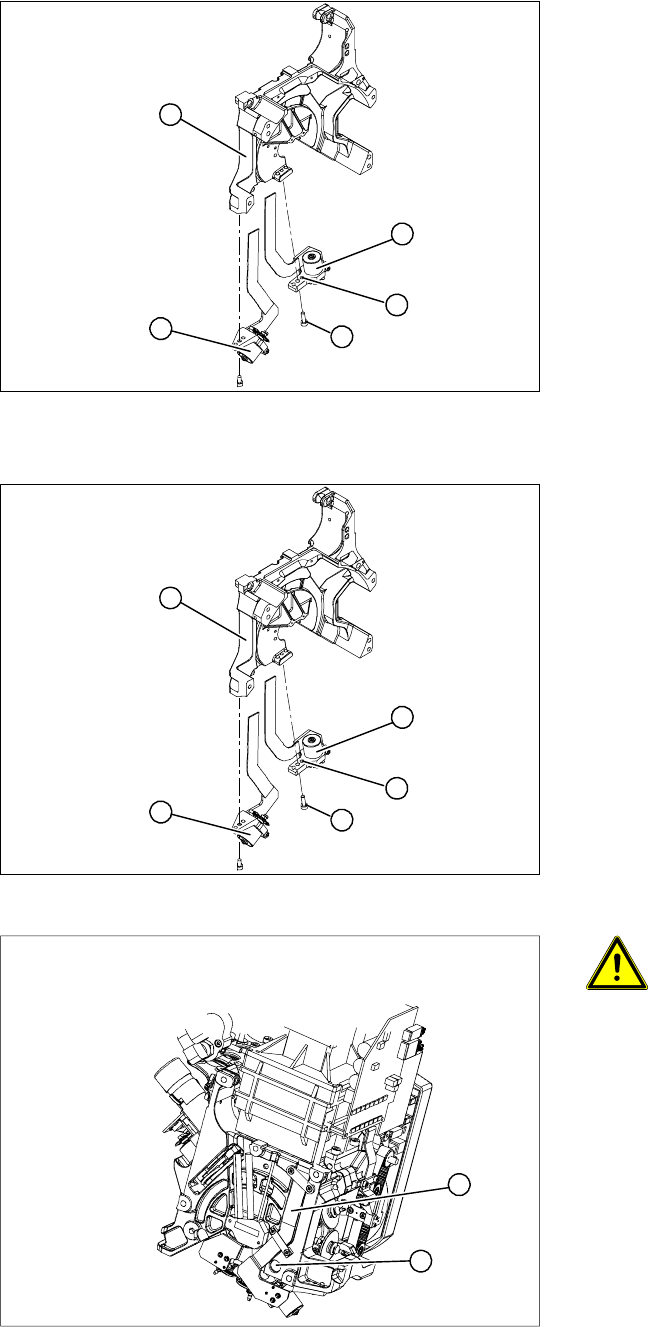

Legend
1. Valve positioning drive for the placement
circuit [00368075]
2. Valve positioning drive for the reject circuit
[00367768]
3. Flat ribbon cable clamp
4. Flat ribbon cable clamp
X Dismantle the C&P head.
X Loosen the two M2x6 Phillips screws on the
flat ribbon cable clamp (3) and (4).
Service Work
C&P12 Placement Head Replacing the Valve Positioning Drive for the Placement Circuit [00368075]
160 Service Manual SIPLACE D4
Installation
See also:
J
6.3.1 Calibrating the C&P Head and Cameras [
J
221]
Legend
1. Valve positioning drive for the placement
circuit [00368075]
2. Valve positioning drive for the reject circuit
[00367768]
X Loosen the fastening screw (4).
X Carefully remove the valve positioning drive
(1).
5
1
4
3
2
X Insert the valve positioning drive. Make sure
that it is seated correctly on the parallel pins
(5).
X Loosely screw in the hexagon socket-head
screw (4).
X Use the cable clamps to fix the ribbon cable in
position. Make sure that the ribbon cables are
not pinched.
5
1
4
3
2
ATTENTION: Check how the cables
are run!
Check that the ribbon cables are laid
correctly (1).
X The flat ribbon cable for the two
valve positioning units must be run
outside the holes (2). otherwise it will
be damaged when the C&P head is
fitted onto the head plate.
1
2
