Service W ork Replacing the Valve Positioning Drive for the Placement Circuit [00368075] C&P12 Placement Head Service Manual SIPLACE D4 163 4.5.8.3 Mechanical Adjustment (All V ersions) Setting the valve positioning …

Service Work

C&P12 Placement Head Replacing the Valve Positioning Drive for the Placement Circuit [00368075]

162 Service Manual SIPLACE D4

X Use the feeler gauge to set the distance

between the valve plunger and valve casing to

0.2 mm (A).

X Turn the cam disk (2) until the deep-groove

ball bearings (3) point towards the valve

casing.

X Move the valve positioning drive (7) so that the

deep-groove ball bearings (3) come into

contact with the valve plunger (4) at position

(B).

X Use the hexagon socket-head screw to fix the

adjustment unit in this position (6).

X Fit the C&P head.

X Use the SITEST program to test that the valve

positioning drive is functioning correctly.

X Use the SITEST program to calibrate the C&P

head.

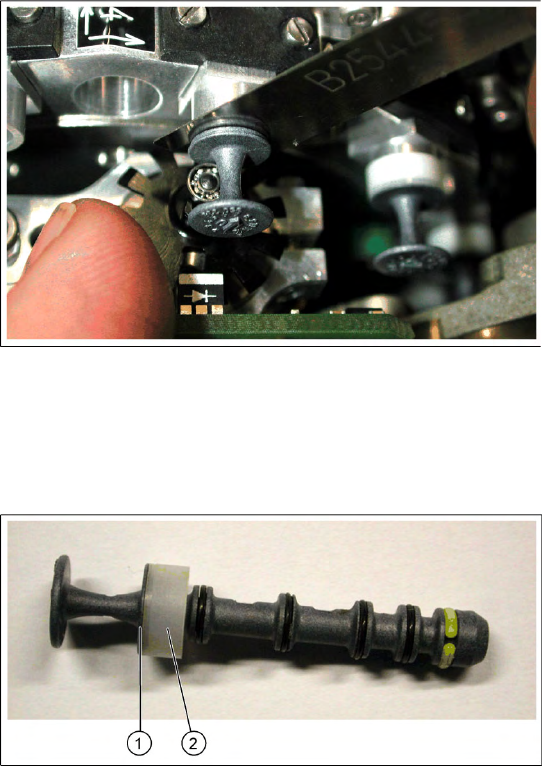

4-45: Valve plunger version 03 (C&P12: [00351498-03], C&P6: [00351500-

03])

X If the new valve plungers are used (s. diag. on

left) proceed as follows:

 Take out one valve plunger and remove the

sleeve (2).

 Insert the plunger without bushing and carry

out the following steps on this segment:

X Insert the distance gauge (0.2 mm) between

valve plunger and valve casing.

X Rotate the valve positioning drive 90 degrees

from its initial position. The eccentric of the

valve adjustment drive will just touch the inner

side (1) of the valve plunger.

X Fix the motor of the valve drive in this position.

X Remember to replace the tube on the valve

plunger.

Service Work

Replacing the Valve Positioning Drive for the Placement Circuit [00368075] C&P12 Placement Head

Service Manual SIPLACE D4

163

4.5.8.3 Mechanical Adjustment (All Versions)

Setting the valve positioning drive for the placement position

NOTE:

The DLM1 (placement position) and all valve positioning drives of the DLM2 and DLM3 heads

can be set with the adjustment valve plungers.

X Fit the dismantled placement head onto the

head mount and place both down on the front

or place the placement head down on a soft,

ESD conductible surface on its front.

X The lockscrew (1) and the fastening screw (2)

of the valve positioning drive need to be

loosened or are only screwed in slightly during

assembly of the drive.

X Instead of using a valve plunger, the

adjustment plunger is now inserted for the

placement position (P), as can be seen in the

diagram.

X Turn the adjustment valve plunger so that the

tips of the two centering pins are near to the

cam disk behind the ball bearing. Use a

pointed object to carefully turn the cam disk so

that it is in the "starting position" (ball bearing

horizontally aligned next to the drive shaft).

X Carefully turn the star to the valve positioning

drive so that the two centering pins behind the

ball bearing grasp the fixtures on the cam disk.

The adjustment valve plunger swivels into the

correct position (centering pins parallel to cam

disk).

Service Work

C&P12 Placement Head Replacing the Valve Positioning Drive for the Placement Circuit [00368075]

164 Service Manual SIPLACE D4

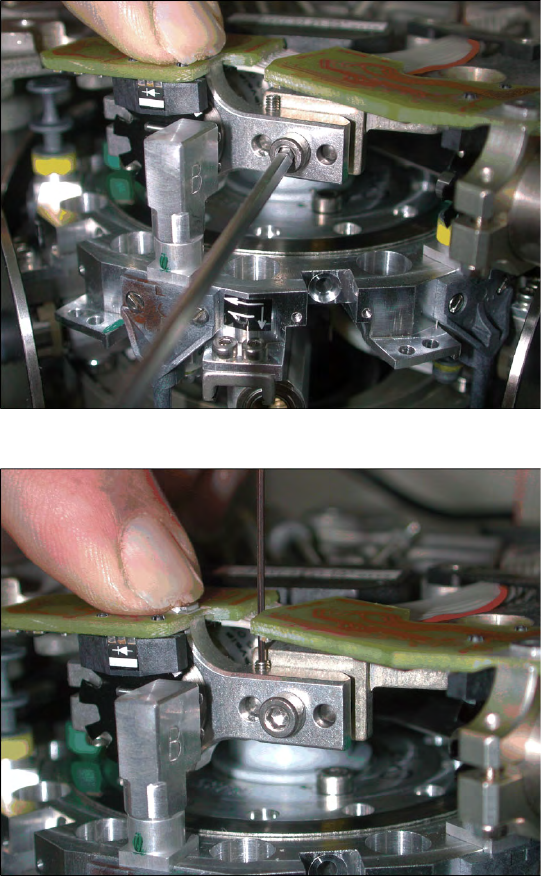

X Press the valve positioning drive in the

direction of the placement star and fasten the

drive holder with the 2.5 mm Allen key.

X Now tighten the locking threaded pin with an

Allen key of size 0.89 mm. Press the valve

positioning drive against it. Do not tighten

excessively as this could push the valve

positioning drive "backwards".

X Remove the adjustment plunger by turning the

placement star back and then rotating the

adjustment plunger out of the valve housing.
