Service W ork Replacing the Valve Positioning Drive for the Reject Circuit [00 367768] C&P12 Placement Head Service Manual SIPLACE D4 165 4.5.9 Replacing the V alve Positioning Drive for the Reje ct Circuit [00367768…
Service Work
C&P12 Placement Head Replacing the Valve Positioning Drive for the Placement Circuit [00368075]
164 Service Manual SIPLACE D4
X Press the valve positioning drive in the
direction of the placement star and fasten the
drive holder with the 2.5 mm Allen key.
X Now tighten the locking threaded pin with an
Allen key of size 0.89 mm. Press the valve
positioning drive against it. Do not tighten
excessively as this could push the valve
positioning drive "backwards".
X Remove the adjustment plunger by turning the
placement star back and then rotating the
adjustment plunger out of the valve housing.
Service Work
Replacing the Valve Positioning Drive for the Reject Circuit [00367768] C&P12 Placement Head
Service Manual SIPLACE D4
165
4.5.9 Replacing the Valve Positioning Drive for the Reject Circuit [00367768]
Tools and equipment
Standard tool
Used up to version 2: distance gauge 0.2 mm [00325445-01]
Available from version 3, valid for all versions: adjustment valve plunger
Removal
4-46: C&P6/12 adjustment valve plunger
Legend
1. Adjustment valve plunger for reject circuit
C&P12 [03064290-01]
2. Adjustment valve plunger for placement circuit
C&P12 [03068816-01]
3. Adjustment valve plunger for reject circuit
C&P6 [03068854-01]
4. Adjustment valve plunger for placement circuit
C&P6 [03065628-01]
The labeling on the plungers has the following
meaning:
6 = C&P6
12 = C&P12
P = placement circuit
R = reject circuit

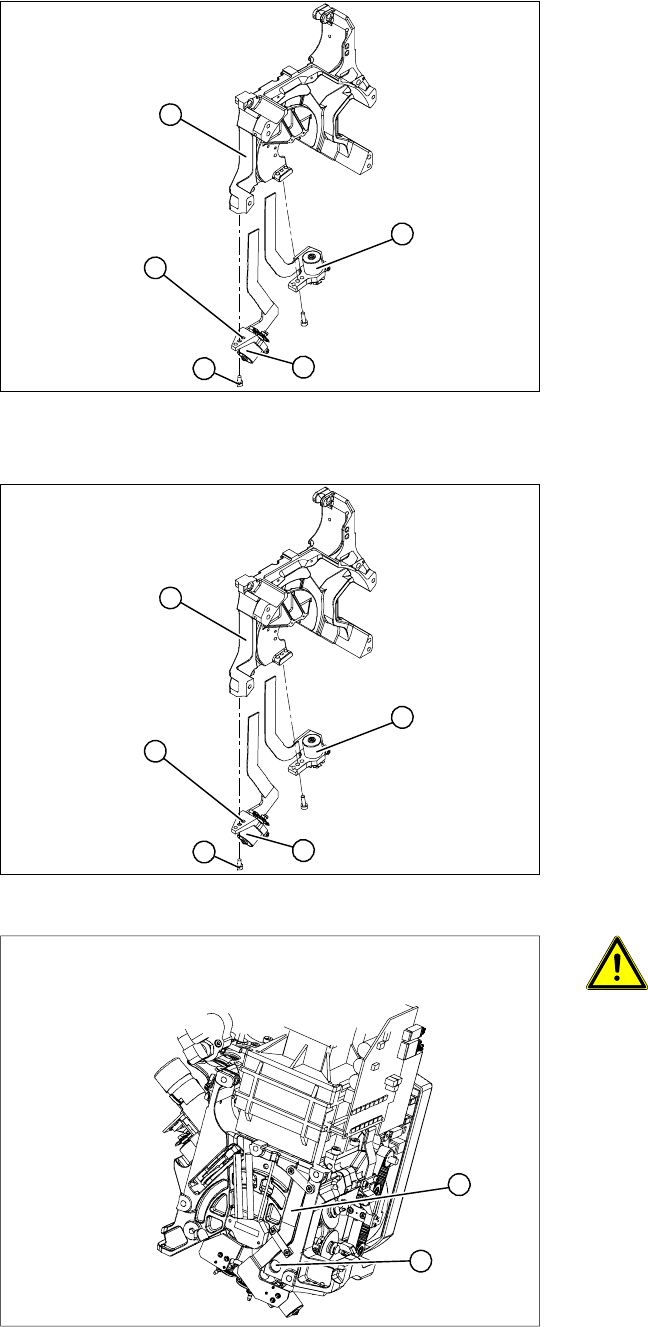

Legend
1. Valve positioning drive for the placement
circuit [00368075]
2. Valve positioning drive for the reject circuit
[00367768]
3. Flat ribbon cable clamp
4. Flat ribbon cable clamp
X Dismantle the C&P head.
X Loosen the two M2x6 Phillips screws on the
flat ribbon cable clamp (3) and (4).
Service Work
C&P12 Placement Head Replacing the Valve Positioning Drive for the Reject Circuit [00367768]
166 Service Manual SIPLACE D4
Installation
See also:
J
6.3.1 Calibrating the C&P Head and Cameras [
J
221]
Legend
1. Valve positioning drive for the placement
circuit [00368075]
2. Valve positioning drive for the reject circuit
[00367768]
X Loosen the fastening screw (4).
X Carefully remove the valve positioning drive
(2).
5
1
4
3
2
X Insert the valve positioning drive. Make sure
that it is seated correctly on the parallel pins
(5).
X Loosely screw in the hexagon socket-head
screw (4)
X Use the cable clamps to fix the ribbon cable in
position. Make sure that the ribbon cables are
not pinched.
5
1
4
3
2
ATTENTION: Check how the cables
are run!
Check that the ribbon cables are laid
correctly (1).
X The flat ribbon cable for the two
valve positioning units must be run
outside the holes (2). otherwise it will
be damaged when the C&P head is
fitted onto the head plate.
1
2
