Replacing the Star [00341181] C&P12 Placement Head
Service Manual SIPLACE D4
185
Installation
X Installation is performed by following the above instructions in the reverse order. Observe the
following points:
Check that the white connection pieces are seated firmly on the segments. If these are loose, you
will need to replace the entire star.
Make sure that there is an even space between the hoses:
When fitting the star, make sure that the silicone hoses are not pinched and/or damaged.

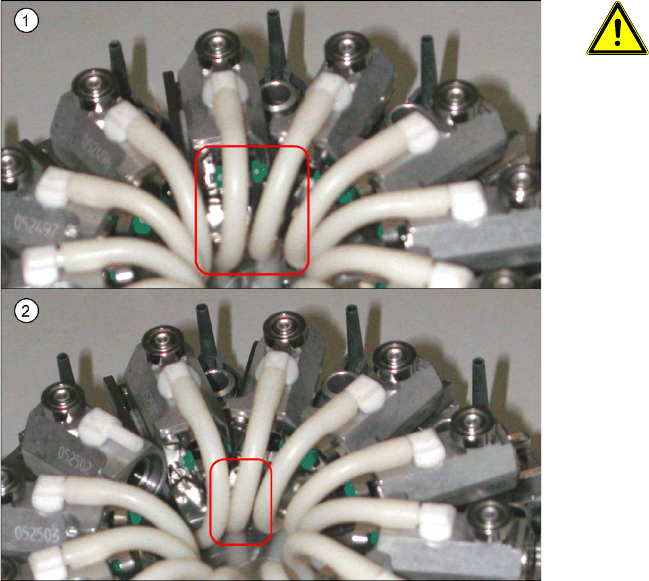

ATTENTION:
If the connecting silicone hoses
between the valve and segment are
replaced, make sure that they are not
damaged by rubbing against one
another (2) .
X To ensure this, make sure that the
silicone hoses have been cut to the
exact length and that they are
pushed onto the respective
connection pieces as far as possible
(up to the stopper).
X Make sure that the hoses do not
touch (1) one another. Check the
distance while pushing all segments
all the way in. Ideally, the distances
should all be the same.
Service Work
C&P12 Placement Head Replacing the Star Drive [03020626-xx]
186 Service Manual SIPLACE D4
4.5.18 Replacing the Star Drive [03020626-xx]
Removal
Installation
See also:
J
6.3.9 Determining the Zero Point Correction for the Star Axis of the C&P Head [
J
230]

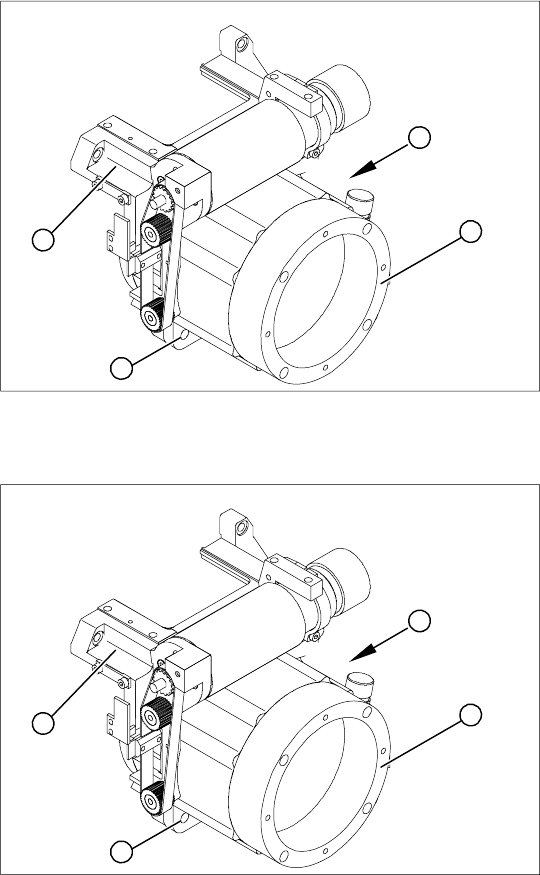

Legend
1. Star drive, digital / DLM3
2. 4 x M5x16 hexagon socket-head screws
3. Front section of C&P head
(A) Connecting cable for the star drive
X Dismantle the intermediate distributor.
X Dismantle the front part of the C&P head.
X Dismantle the star.
X Loosen the four M5x16 hexagon socket-head
screws (2).
X Lift the star drive off the front part of the C&P
head.
A
1
3
2
X Place the star motor onto the front part of the
C&P head, so that the star drive connection
cable points to the position marked (A).
X Fix the star drive in place with the four M5x16
hexagon socket-head screws (2).
X Fit and adjust the star. (See zero point
correction.)
X If you are unable to adjust the zero point
correction correctly, loosen the 4 star motor
screws and rotate the star motor in the
required direction, within the tightening
tolerance.
X Fit the front part of the C&P head.
A
1
3
2
Service Work
Replacing the RSF Digital Rotary Encoder (DP Axis) [00335990-xx] C&P12 Placement Head
Service Manual SIPLACE D4
187
4.5.19 Replacing the RSF Digital Rotary Encoder (DP Axis) [00335990-xx]
Removal
Installation

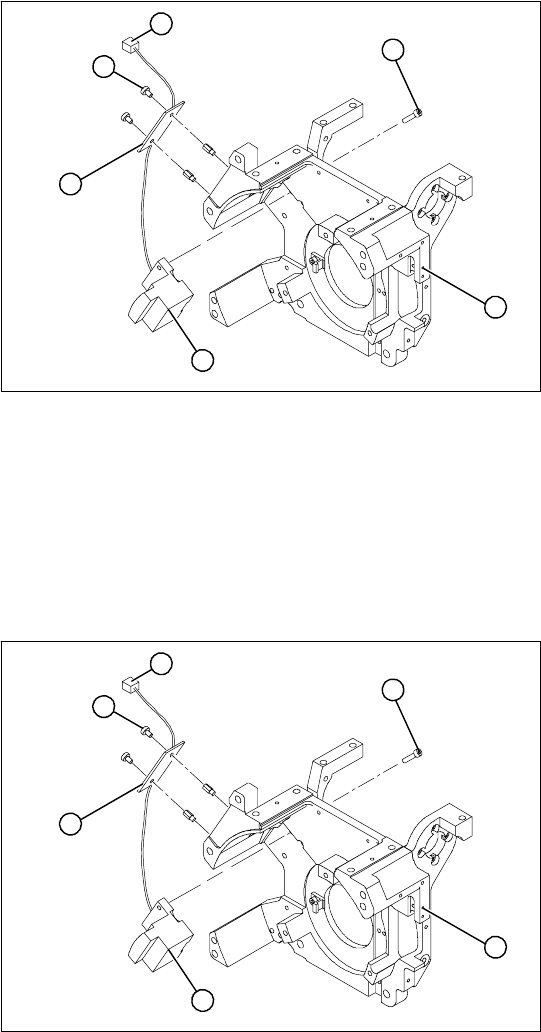

Legend
1. Front section of C&P head
2. RSF digital rotary encoder 12/DLM3
3. 2 x M2.5x8 hexagon socket-head screws 2 x
4. RSF board, type 950
5. 2 x M2.5x4 hexagon socket-head screws 2 x
6. Plug connector in the slot on the intermediate
distributor
X Dismantle the front part of the C&P head.
X Remove the black blanking cap over the RSF
board (4).
X Remove the plug connector (6) from the slot
on the intermediate distributor.
X Loosen the two M2.5x4 hexagon socket-head
screws (5) for fixing the RSF board.
X Dismantle the handle of the C&P head.
X Loosen the two M2.5x8 hexagon socket-head
screws (3) and remove the digital encoder.
1
6
5
4
3
2
X Insert the new rotary encoder and initially fix
loosely in place with the two M2.5x8 hexagon
socket-head screws (3).
X Fit the handle of the C&P head.
X Insert the sleeve into the star and turn the star,
with the sleeve, until it reaches the rotary
encoder.
X Fix the star in this position using the gauge for
the star.
1
6
5
4
3
2
