Measuring Equipment and Tools
SIPLACE Diagnosis Adapter A364 [03051220-01] Scope of Delivery
204 Service Manual SIPLACE D4
5.2 SIPLACE Diagnosis Adapter A364 [03051220-01]
Application:
The adapter card is used to check the A364 axis card dynamics.
The A364 axis card is equipped with two processors (module 1 and module 2) i.e. one processor controls
two axes.
NOTE:
This adapter is designed for all machines with A364 and as an adapter for the CAN test box with
force measuring tool.
5-3: Adapter card for A364
Legend
Module 1: Axis 1/2
Module 2: Axis 3/4
1. Bootstrap mode: m1 = module1 / m2 =
module2
2. Diagnosis – connector X6
3. Connection X3 SIPLACE AxisTester
4. Connection X2 Axis test box
5. Connection X1 to A364
6. Switches:
– S3: for the 7 segment display between
module 1 and 2
– S2: Selection module 2 axes 3 and 4
– S1: Selection module 1 axes 1 and 2
7. Diagnosis – 7 segment display
8. CAN bus connector (Sub-D)
9. BNC sockets:
– Position deviation 1/2 – 3/4 depending on
switch setting S1, S2
– Torque-forming current I
nominal
1/2 – 3/4
depending on switch setting S1, S2
– END 1 - 4 End position signal for axes 1 -
4
– Upstream end position signal: trigger m1
for axis 1/2, trigger m2 for axis 3/4,
depending on switch setting S1, S2
10. Reset both processors
Measuring Equipment and Tools
Scope of Delivery Axis Tester (Old Version) and Adapter Board
Service Manual SIPLACE D4
205
5.3 Axis Tester (Old Version) and Adapter Board
Article numbers
Axis tester, inc. adapter board [00303430-06]
Axis tester [00328041-05]
Cable [00304771-03]
Adapter board for axis tester [00328040-01]
Application:
Comparison of axis dynamics for placement head and gantry axes.
NOTE:
This axis tester is designed for all machines with A363. This function is limited for machines with
A364.
Adapter board for axis tester
Art.No. [00328040-01]
SIPLACE axis tester – front
Art.No. [00328041-05]
SIPLACE axis tester – back
Art.No. [00328041-05]
Measuring Equipment and Tools
Track Signal Tester [00343785-01] Scope of Delivery
206 Service Manual SIPLACE D4

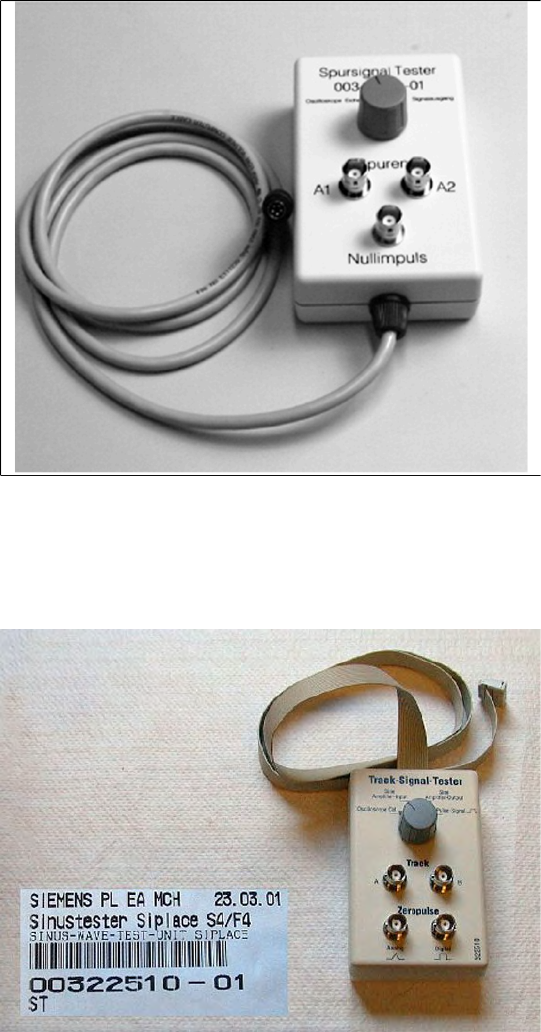

5.4 Track Signal Tester [00343785-01]
5.5 Track Signal Tester [00322510-01]
Application:
The track signal tester is used to test the track
signals of the incremental measurement
system for the gantry axes (from SIPLACE
HS50).
Application:
The track signal tester is used to test the track
signals of the incremental measurement
system - particularly for the head axes. It is
also used for the track signals of the gantry
axes on older SIPLACE machines (S20, F4).
