Measuring Equipment and Tools
Scope of Delivery Belt Tension Device [00326015-01]
Service Manual SIPLACE D4
207

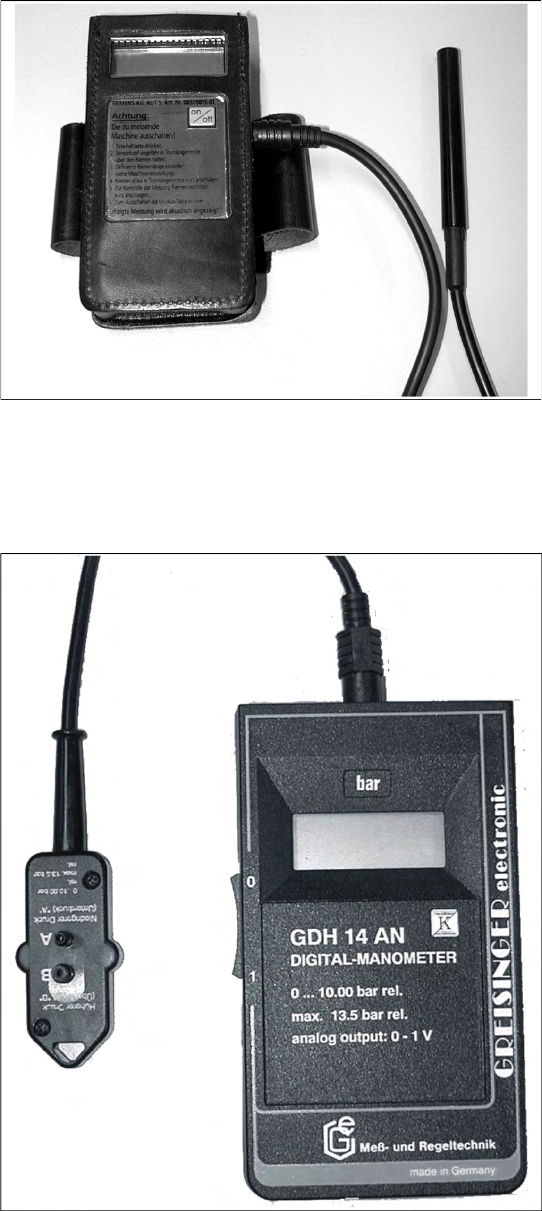

5.6 Belt Tension Device [00326015-01]
5.7 SIPLACE Compressed Air Tester [00311487-01]
Application:
The belt tension measuring device is used to
measure the belt tensions (toothed belt) at the
machine.
Application:
The compressed air tester is used to set the air
blast at the C&P6 and C&P12 placement
heads in the SIPLACE placement machines.
Measuring Equipment and Tools
Location Tester Scope of Delivery
208 Service Manual SIPLACE D4

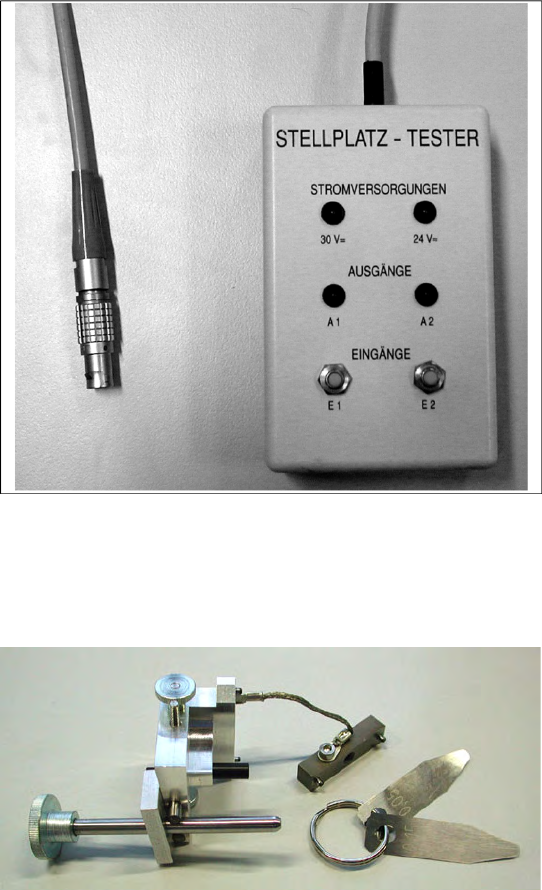

5.8 Location Tester
5.9 Z End Stopper Star Gauge for C&P6/12 [03019865-01]
Application:
The location tester is used to check the feeder
connections at the communication unit of the
changeover table.
Application:
The gauge is used to set the end stop position
of the C&P head Z axis.
Measuring Equipment and Tools
Scope of Delivery Adjustment Aid for C&P DLM [00327005-01]
Service Manual SIPLACE D4
209
5.10 Adjustment Aid for C&P DLM [00327005-01]
Complete set: Art. No. 00327005-01
1. Gauge for star [00326164-01]
2. Test probe 1.4 mm [00326160-01]
3. Test probe 1.5 mm [00326161-01]
4. Test probe 1.6 mm [00326162-01]
5. Test probe 1.0 mm [00376656-01]
6. Distance gauge [00325445-01]
Measurement tools Application type
Gauge for star Setting the zero point correction for the star
Test probe 1.4 mm Setting the distance between the DP station incremental encoder and the glass for
the sleeve
Test probe 1.5 mm
Test probe 1.6 mm
Test probe 1.0 mm Setting the distance from the Z axis light barrier down to the sleeve shaft
Distance gauge Setting the distance of the valve plunger to the star
