Settings

Conveyor Adjusting the Tension of the Conveyor Toothed Belt

242 Service Manual SIPLACE D4

6.5 Conveyor

6.5.1 Adjusting the Tension of the Conveyor Toothed Belt

NOTE:

The belt tension is measured at the strand center (i.e. the longest distance between the two

deflection pulleys) .

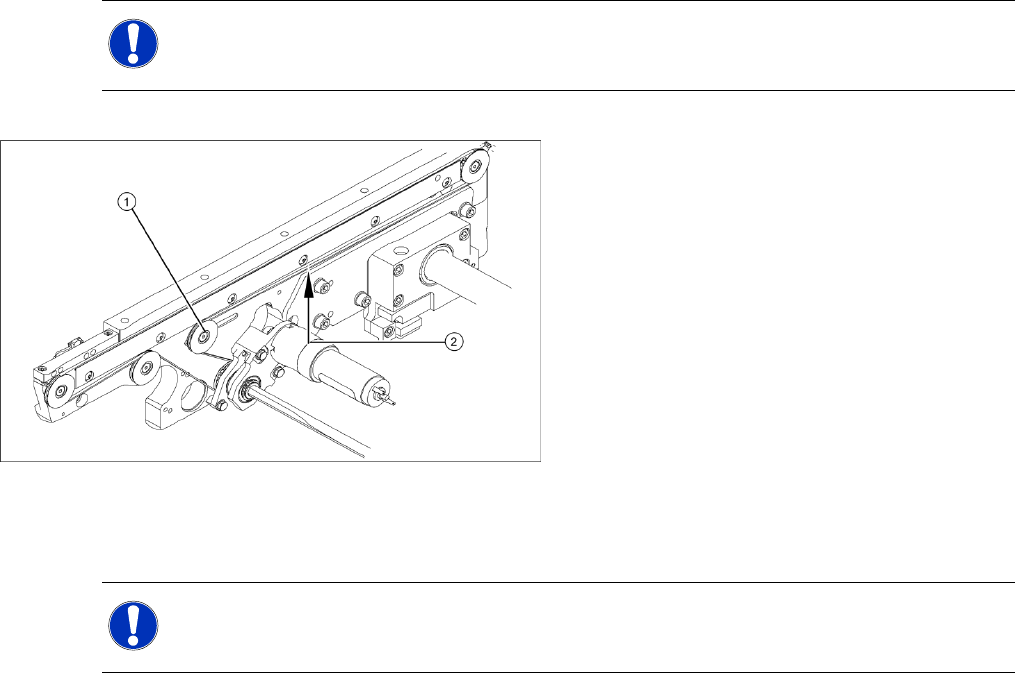

6-25: Measuring and setting the tension of the conveyor toothed belt

Legend

1. Deflection pulley with slot

2. Measuring point of the belt tension measuring

device (strand center )

X Each conveyor section contains a deflection

pulley (1), that can be moved. The tension of

the conveyor toothed belt can be adjusted by

moving this deflection pulley.

X Position the measuring point of the belt

tension device at the strand center (i.e. the

longest distance between the two deflection

pulleys) of the conveyor toothed belt.

X Set the tension of the drive toothed belt

according to the following values.

NOTE:

The tension frequencies per area may vary according to the different belt guides. The belt

tension always remains the same.

Settings

Adjusting the Tension of the Conveyor Toothed Belt Conveyor

Service Manual SIPLACE D4

243

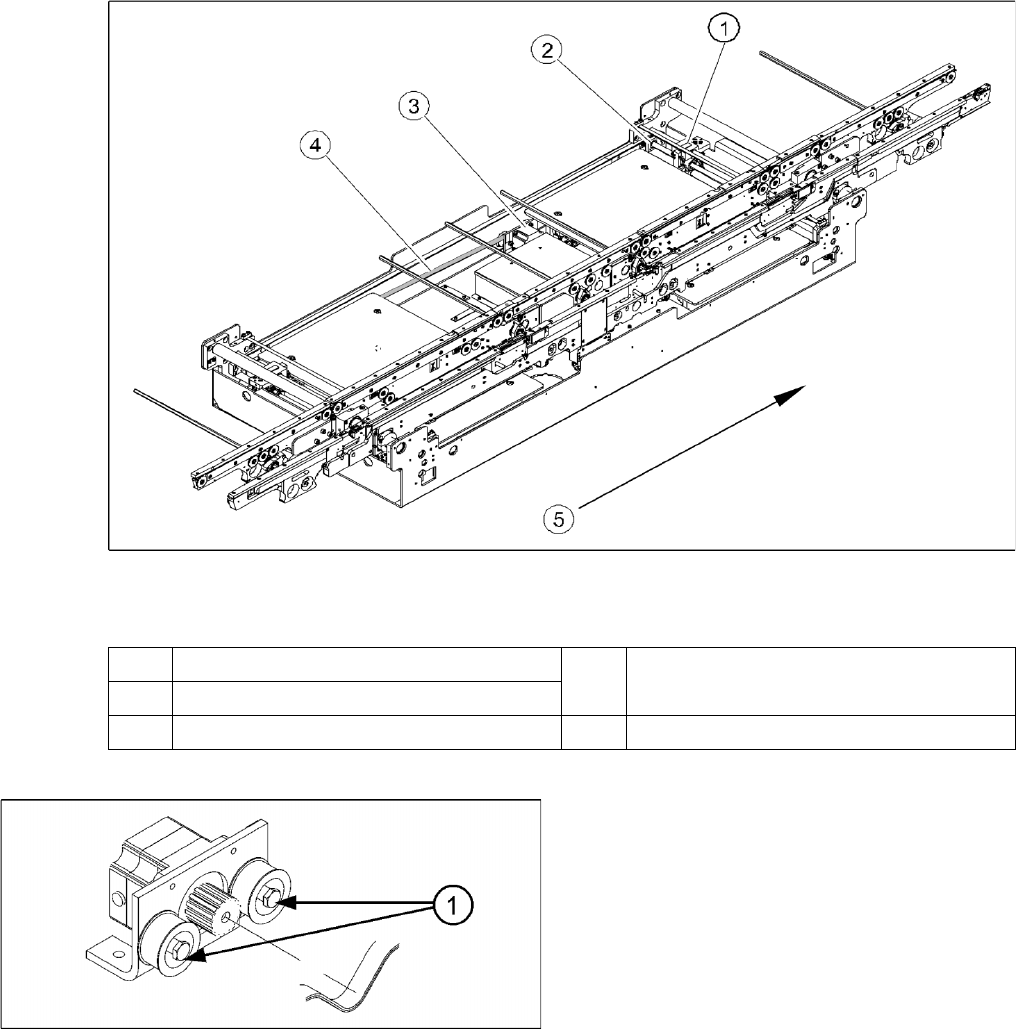

6-26: Measuring and setting the belt tension for the width adjustment

Legend

1 Adjustment unit 4 Toothed drive belt for adjusting the width /

measuring the belt tension

2 Spindle with toothed wheel

3 Width adjustment stepping motor 5 Transport direction

6-27: Width adjustment motor

The belt is tensioned by means of cams on the

idler pulleys. The idler pulleys are located on the

left and right of the motor.

Legend

1. Loosen the cam shaft on the idler pulley and

set the belt tension.

Settings

Conveyor Adjusting the Tension of the Conveyor Toothed Belt

244 Service Manual SIPLACE D4

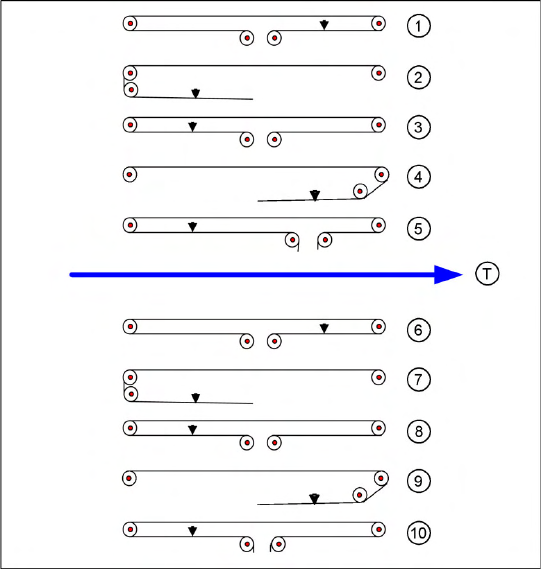

6.5.1.1 Measuring Points and Belt Tensions for D4 Conveyor

Legend

Measuring points (arrows) and measuring values

for conveyor belt tensions:

Single conveyor or dual conveyor lane 1

1. Input conveyor: 90 +/- 9 Hz

2. Processing area 1: 72 +/- 7 Hz

3. Intermediate conveyor: 144 +/- 14 Hz

4. Processing area 2: 90 +/- 9 Hz

5. Output conveyor: 90 +/- 9 Hz

Dual conveyor lane 2

1. Input conveyor: 90 +/- 9 Hz

2. Processing area 1: 72 +/- 7 Hz

3. Intermediate conveyor: 115 +/- 12 Hz

4. Processing area 2: 90 +/- 9 Hz

5. Output conveyor: 90 +/- 9 Hz

Width adjustment

 Width adjustment Limit switch, 24 +/- 2 Hz
