Settings
Conveyor Board Clamping Functions
256 Service Manual SIPLACE D4
6.5.10.1 Setting Board Clamping

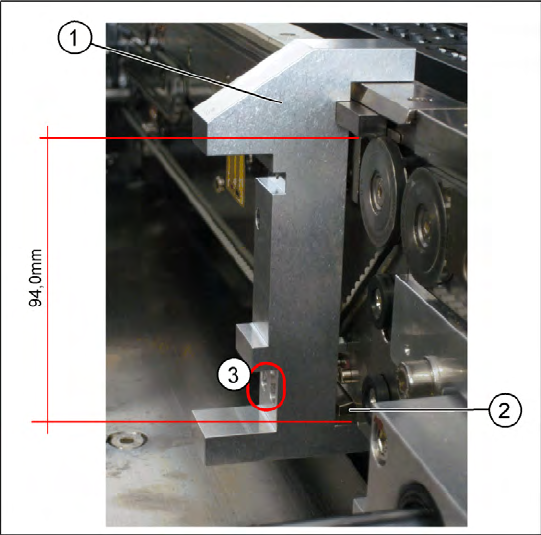

6-38: Setting the actuator
Legend
1. Gauge [00369202-01]
2. Actuator
3. Drilling, for fixing the actuator screws, when
the gauge is fitted
If the conveyor control issues the error
Clamping
error transport
, check the distance from the lifting
table actuator to the top edge of the conveyor belt.
Use the setting gauge to check and set the
actuator. The distance from the clamping actuator
(lifting table) to the top edge of the belt should be
94.0 mm at all four contact points. (see diagram)
Settings
Lifting Table Functions Conveyor
Service Manual SIPLACE D4
257
6.5.11 Lifting Table Functions
Lifting table up function
Requirements for detecting that the lifting table is up:
30-35 pulses from the incremental disc
Check performed by software (see Section (6.5.10 Board Clamping Functions
J
255 ) )
Dynamic response for board clamping of approx. 500 ms
Lifting table down function
Requirements for detecting that the lifting table is down:
30-35 pulses from the incremental disc
Proximity switch on the lifting table cylinder
Dynamic response for board release of approx. 480 ms
6.5.11.1 Adjusting the Speed of the Lifting Table (from SW 602)

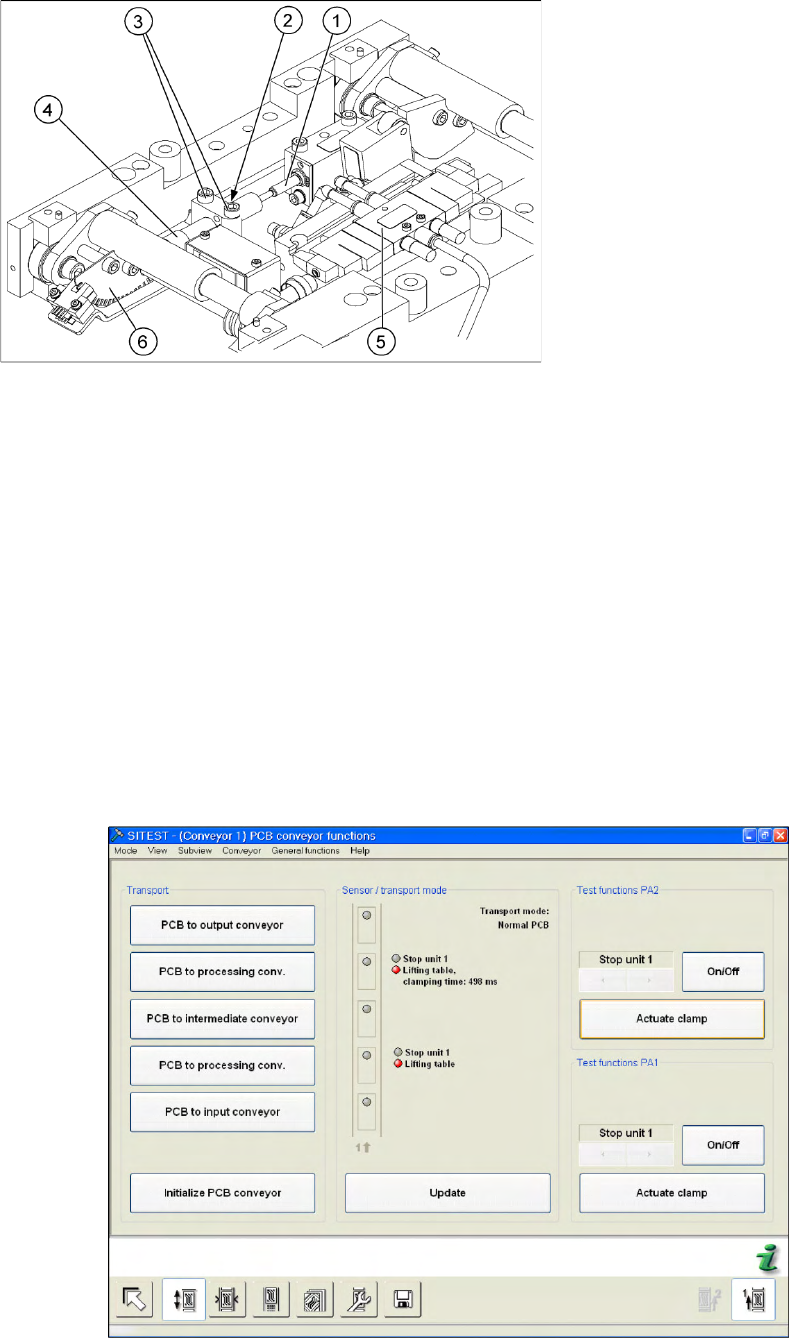

6-40: Time needed to move lifting table up with lifting table plate
6-39: Lifting table unit
Legend
1. Actuator
2. Lock nut damper
3. Fastening screws for mounting block
4. Damping unit
5. 3/5 way solenoid valve mounted on lifting table
drive cylinder
6. Fork-type light barriers / incremental disk
Settings
Conveyor Lifting Table Functions
258 Service Manual SIPLACE D4
X Switch the machine on and start the SITEST program.
X In the PCB conveyor functions menu (see adjacent diagram) you can see the travel time for the lifting
table (from SW 602 upwards).
X Click on
Actuate Clamp
.

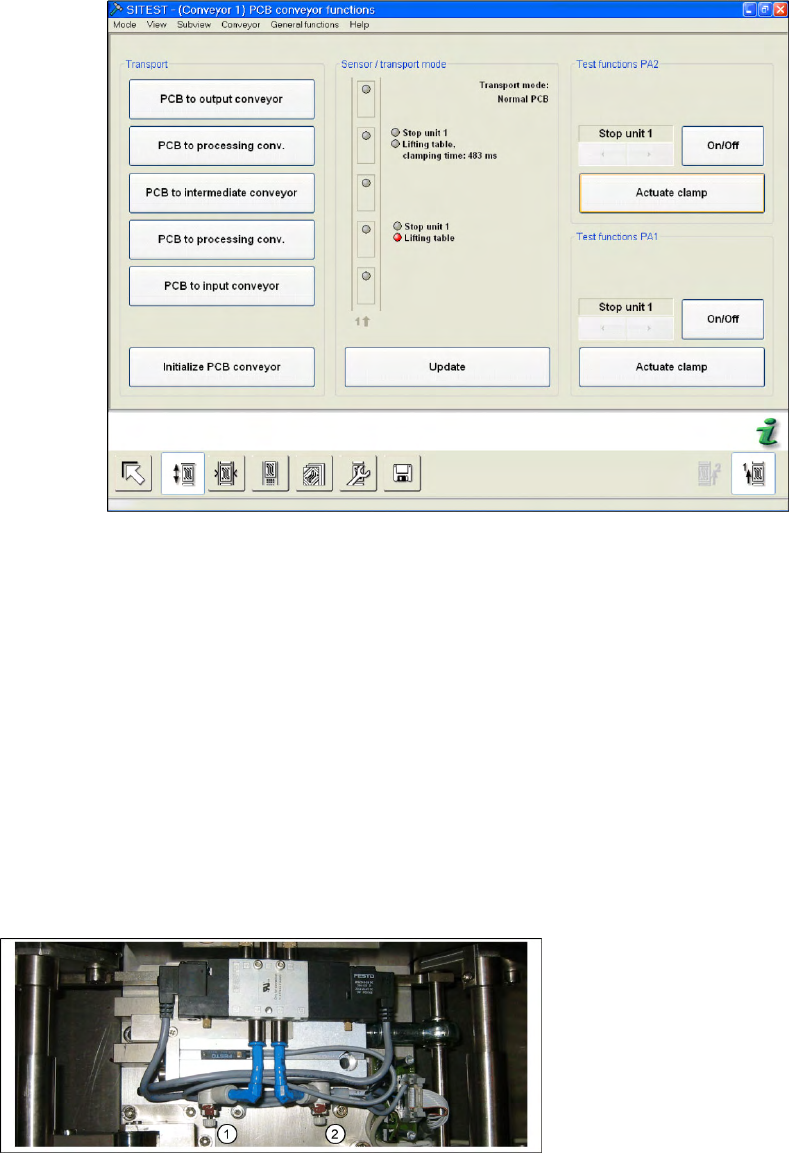

6-41: Time needed to move lifting table down with lifting table plate
X The lifting table will be moved up and the travel time will be displayed (see diagram).
X Press the
Actuate Clamp
button again to move the lifting table downwards and to view the travel
time for the downwards movement.
X If the travel times are not inside the tolerance range or if error messages appear during production,
adjust the travel times (displayed since SITEST 60x) as follows:
X Adjust the valve on the lifting table cylinder, so that you get the following values:
Lifting table up: 500 ms +/-20
ms (without lifting table plate ~450 +/-20 ms DT / ~360 +/-20 ms ET)
Lifting table down: 480 ms +/-20
ms (without lifting table plate ~550 +/-20 ms DT / ~600 +/-20 ms ET)
X If malfunctions occur during the downwards movement or if the board is shaken, reduce the lowering
speed accordingly.
Setting valve anticlockwise: Decrease the lifting table moving time
Setting valve clockwise: Increases the lifting table moving time
Legend
1. (3) adjust valve downwards
2. (4) adjust valve upwards
