Settings Conveyor Conveyor Contro l TSP 301 260 Serv ice Manual SIPLACE D4 *Switches 1-2 set the hardware ID 5 for D4 machines and hardware ID 6 fo r X machines , HF and D3. 6-44: Jumper J1, J2 "downstream/upstr eam…
Settings
Conveyor Control TSP 301 Conveyor
Service Manual SIPLACE D4
259
6.5.11.2 Setting the Lifting Table Unit [00358684-05]
6.5.12 Conveyor Control TSP 301
6.5.12.1 Jumper Settings for TSP 301

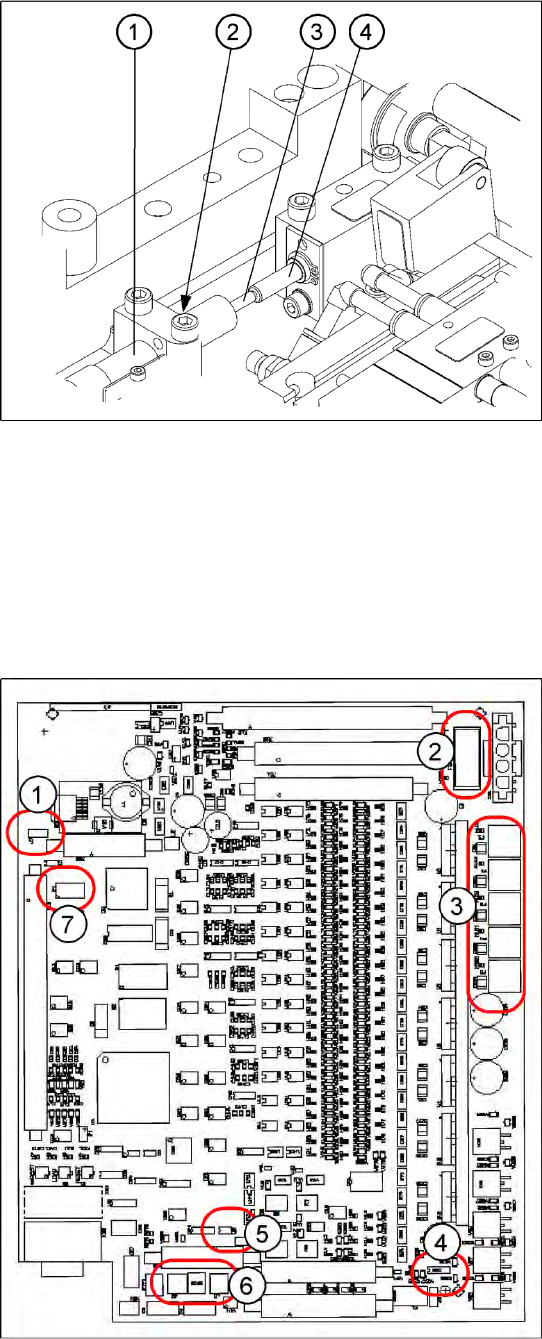

6-42: Setting the damping unit
The damping unit (1) allows the lifting table to
move gently upwards. When the PCB is clamped,
it also prevents excessive bounce by the PCB.
X Check whether the damping unit is fixed with
the locknut (2) in the mounting block and that
the plunger (3) of the damping unit is just
touching the actuator (4). In this default
setting, the lifting table should move up gently.
X If this is not the case, loosen the locknut at the
mounting block and turn the damping unit
approx. one rotation into the mounting block..
X Move the lifting table upwards, with the help of
the software.
X The lifting table should move gently upwards.
The PCB clamping should not engage audibly
and there should be no PCB clamping error
message.
X Check the speed of the lifting table and correct
where necessary.
6-43: Jumper positions for conveyor control TSP 301
Legend
1. J7 CAN bus 1 terminating resistor
2. F6 Main Fuse TSP 301
3. F1 - F5 Fuses for the conveyor motors
4. J3 interference loop
5. J6 CAN bus 2 terminating resistor (not used)
6. J2, J1 successor/predecessor station
7. S4 DIL switch
Settings
Conveyor Conveyor Control TSP 301
260 Service Manual SIPLACE D4
*Switches 1-2 set the hardware ID 5 for D4 machines and hardware ID 6 for X machines, HF and D3.

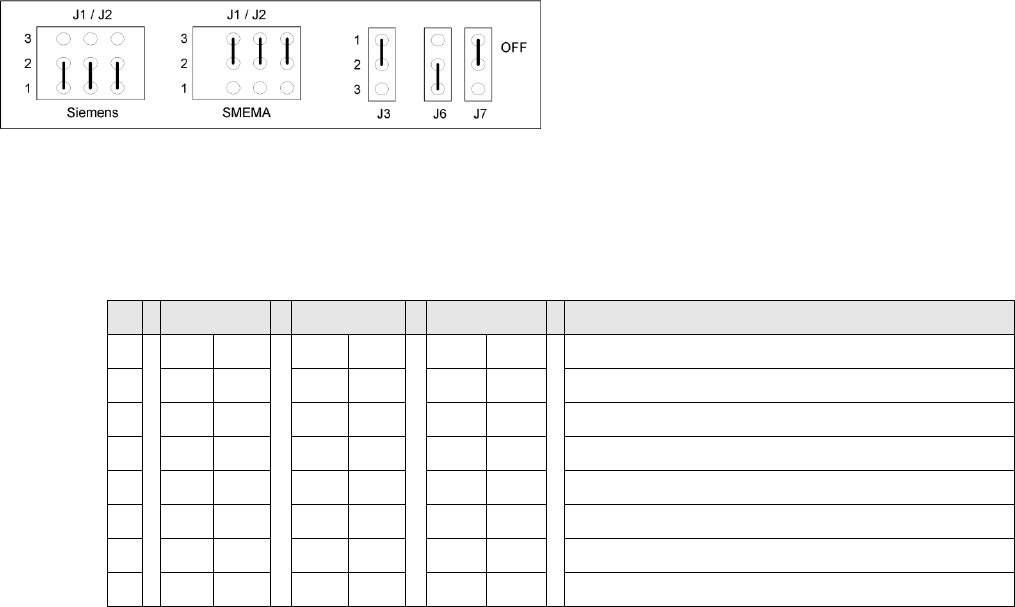

6-44: Jumper J1, J2 "downstream/upstream station" at TSP 301
Legend
J1 predecessor station
J2 successor station
J3 interference loop (emergency stop on
productivity lift switches the placement
machine off)
J6 CAN bus 2 terminating resistor (not used)
J7 CAN bus 1 terminating resistor
S X4I D4 X/D3/HF Comments
1ON ON ONON*
2OFF ON OFF ON* = SIPLACE D4, OFF: SIPLACE X, HF, D3
3OFF OFF OFF OFF= clamping sensor is no longer used
4ONOFFOFFON = X4I, OFF: SIPLACE D4, X, HF, D3
5OFF OFF OFF Not in use
6OFF OFF OFF Not in use
7OFF OFF OFF Not in use
8OFF OFF OFF Not in use
Settings
Conveyor Control TSP 301 Conveyor
Service Manual SIPLACE D4
261
6.5.12.2 Conveyor Control TSP 301 with Siemens Interface

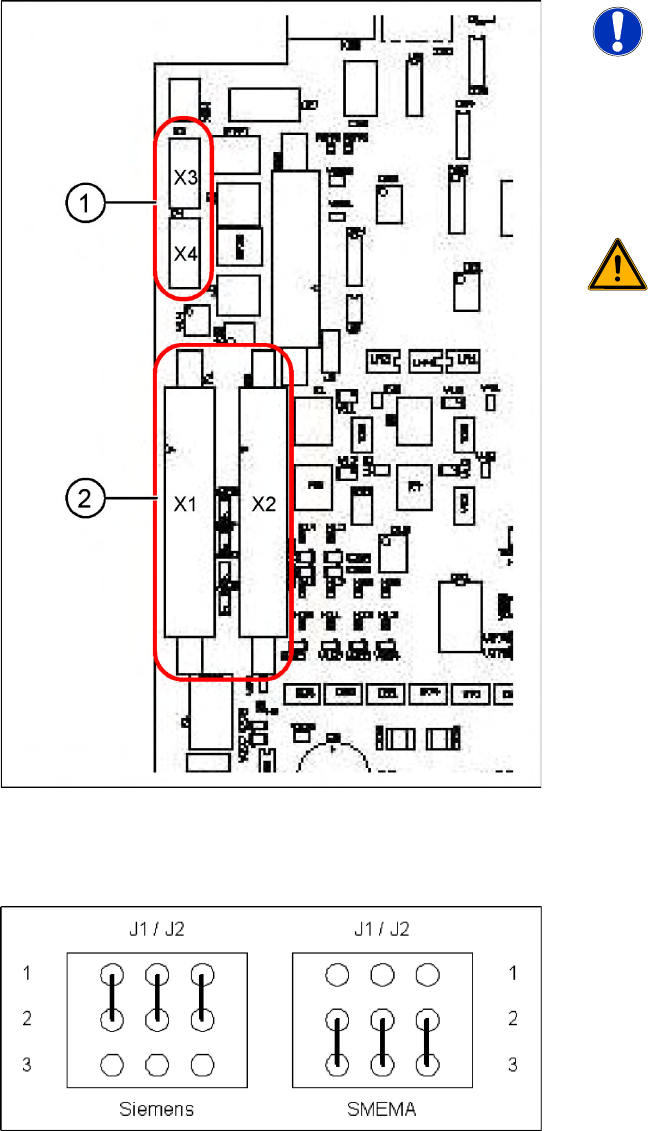

6-45: TSP 301 SMEMA --> Siemens
NOTE: Standard / Option
The SMEMA interface is a standard on
all X machines and the Siemens
interface is optional.
The Siemens interface is a standard on
all D machines and the SMEMA
interface is optional. The SMEMA
interface requires an adapter when
used with the D1/2/4.
WARNING: Risk of irreparable
damage to the TSP board!
The 10 pin Locking clip plug of SMEMA
connections must be disconnected
from the TSP 301!
Application: no modification.
Following modification are necessary for using the
Siemens interface:
X JumperJ1 / J2: need to be moved (see
following diagram).
X Disconnect the connector X3 and X4 on the
TSP 301!
X Connect the Siemens interface cable on the
connector X1 and X2.
Legend
1. 10-pin plug for SMEMA interface
X3: upstream station
X4: successor station
2. Connection for Siemens interface
X1: upstream station
X2: successor station
6-46: Jumper J1 and J2 (Siemens/SMEMA)
