Overview
Electrical System Distributors in Sectors 1-4
26 Service Manual SIPLACE D4
3.2.3 Distributors in Sectors 1-4

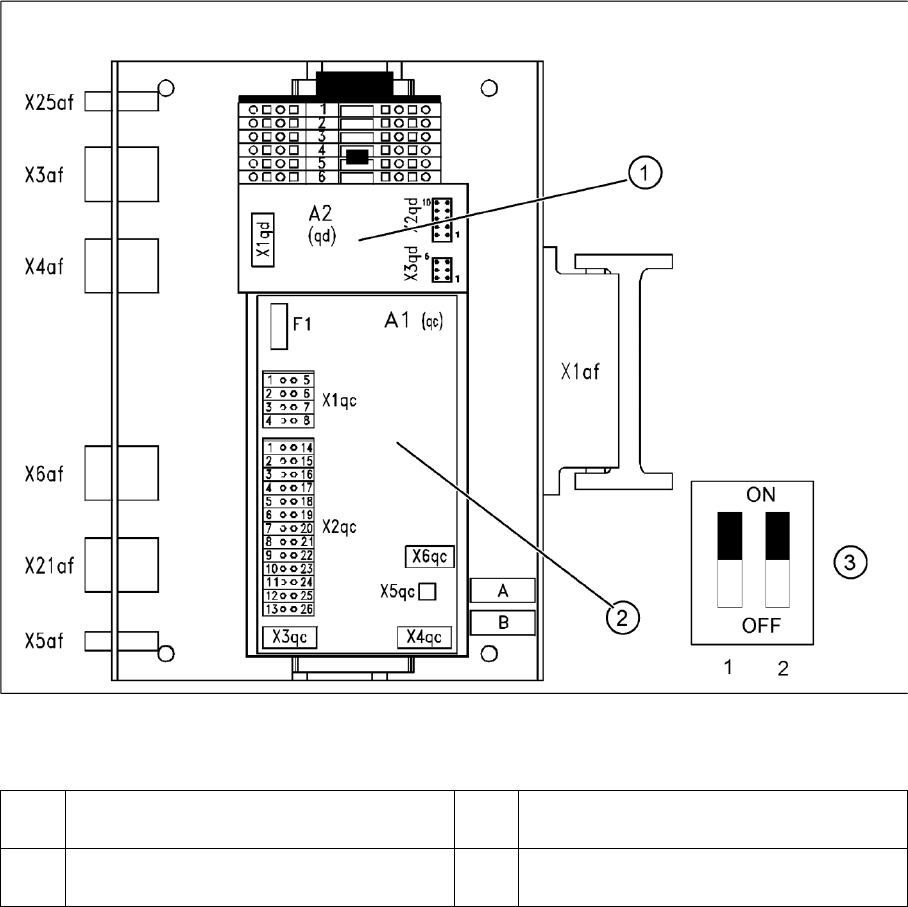

3.2.3.1 Distributors in Sector 1
3-10: Overview - distributors in sector 1
Legend
1 Vision DC/DC converter [03002280-xx] 3 DIP switch for CAN Bus terminator for CO table
in Sector 1
2 CAN Bus Terminator Board for Changeover
Table [03046863-xx]
Overview
Distributors in Sectors 1-4 Electrical System
Service Manual SIPLACE D4
27

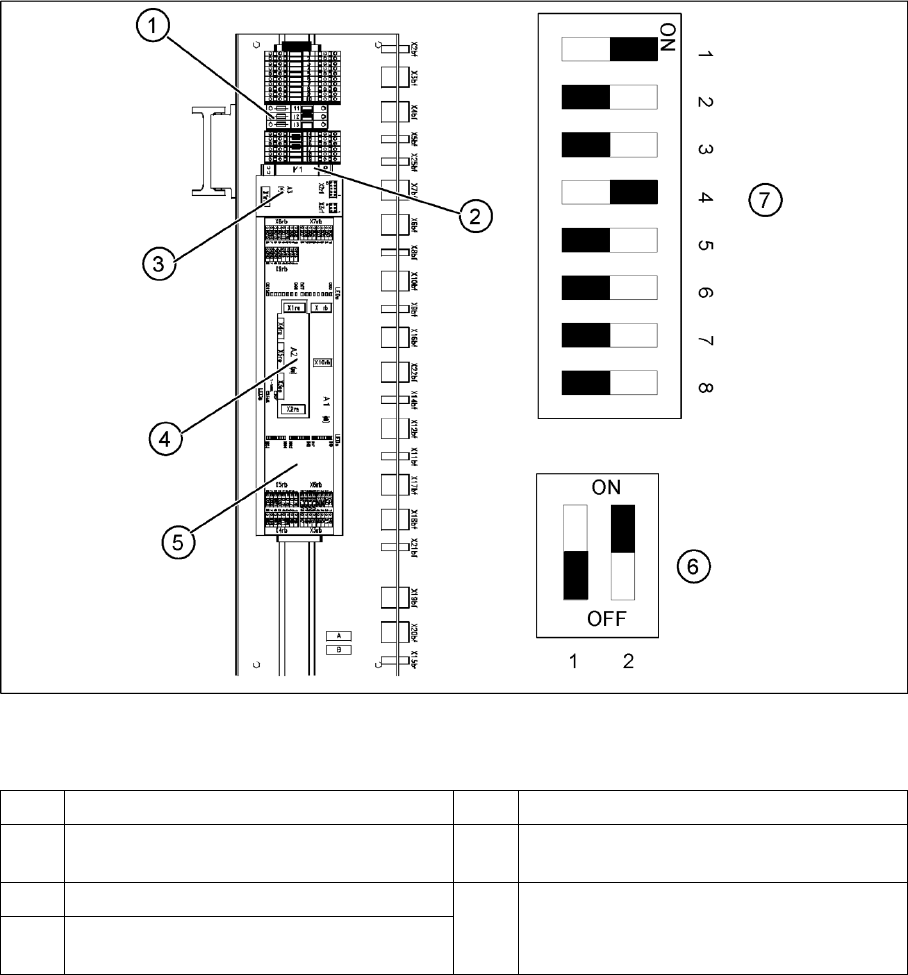

3.2.3.2 Distributors in Sector 2
3-11: Overview - distributors in sector 2
Legend
1 Fine fuse 5x20 MT 3.15 A [00302999-xx] 5 CAN I/O module [00355051-xx]
2 Relay RS30 24 V [00309645-01] 6 DIP switch for CAN Bus terminator for CO table
in Sector 2
3 CAN interface [03032364-xx] 7 DIP switch for configuration of CAN I/O module
in sector 2
4 CAN Bus Terminator Board for Changeover
Table [03046863-xx]
Overview
Electrical System Distributors in Sectors 1-4
28 Service Manual SIPLACE D4

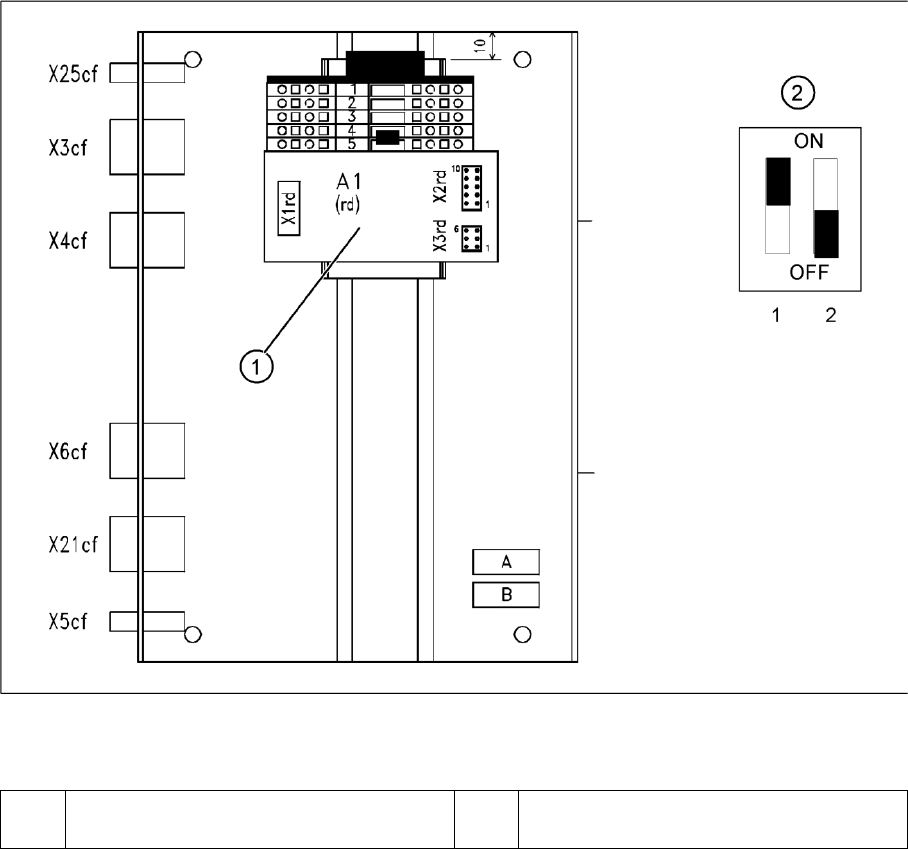

3.2.3.3 Distributors in Sector 3
3-12: Overview - distributors in sector 3
Legend
1 CAN Bus Terminator Board for Changeover
Table [03046863-xx]
2 DIP switch for CAN Bus terminator for CO table
in Sector 3
