Service Work Component Handling Cutter 88 Serv ice Manual SIPLACE D4 Removing the Cutter X Turn the m achine and then the f low of compresse d air ON. X Disconnect the movable changeo ver table from the machine and move …
Service Work
Cutter Component Handling
Service Manual SIPLACE D4
87
*) Loosen these screws only when removing/installing the cutter.
See also:
J
6.4.3 Check the gap between the empty-tape baffle, inside and the leading edge of the tape deflector.
[
J
241]
J
4.3.2.14 Final Steps [
J
114]
Tightening Torques for Cutter Screws
4.3.2.5 Exchanging the Pneumatic Cutter
CAUTION: Tighten the screws to the correct torque.
Thread Tightening torque (Nm)
M3 1.0 – 1.3
M4 2.7 – 3.0
M5 5.5 – 6.0
M6 9.5 – 10.2
WARNING:
X Wear thick protective gloves
X When removing the cutter, hold it only on the left and right, on the outside.
X Never support the cutter on your body (e.g. on your knee or thighs). Do not place your feet
under the cutter.
X You could injury yourself severely or at least damage your clothing.
X Make certain that no one can injury themselves on the cutter, after it has been dismantled.
Service Work
Component Handling Cutter
88 Service Manual SIPLACE D4

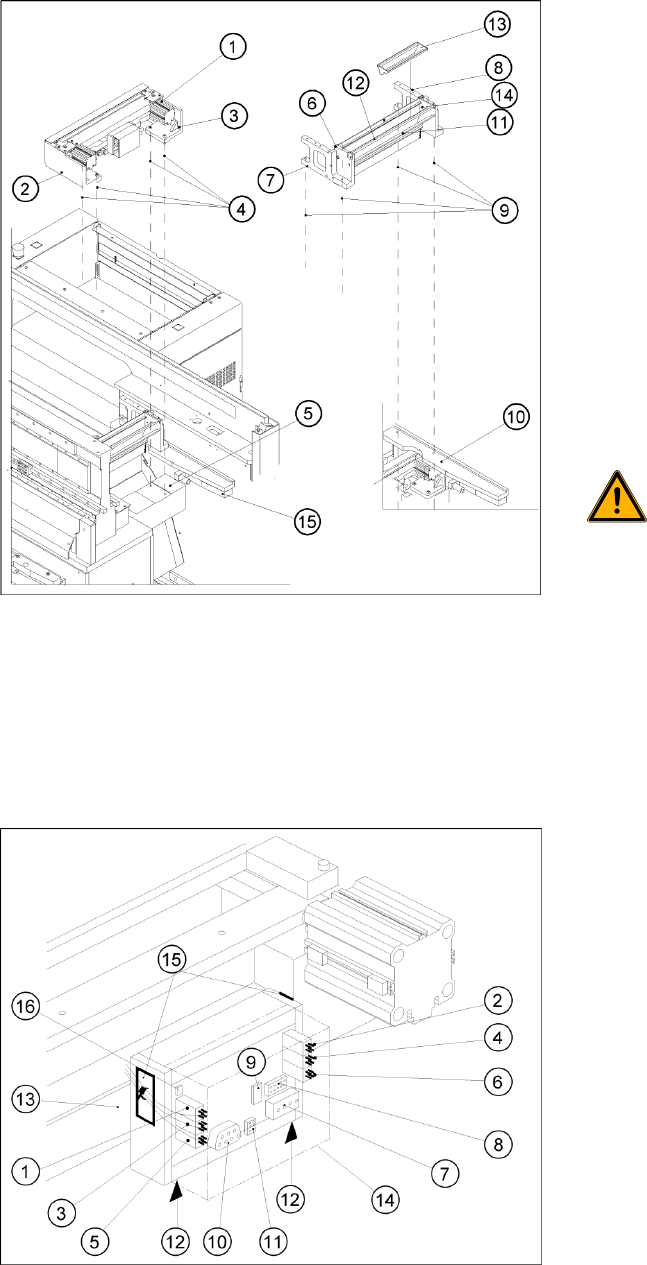

Removing the Cutter
X Turn the machine and then the flow of
compressed air ON.
X Disconnect the movable changeover table
from the machine and move it out of the
machine.
X Switch off the supply of compressed air at the
compressed air unit and actuate the needle
valve on the compressed air unit to bleed the
compressed air lines.
X Turn the machine OFF, disconnect the
machine from the line and turn off the flow of
compressed air at the compressed air unit.
X Loosen the screws fastening the empty-tape
duct assembly (6) (M6x35), lift the empty-tape
duct and place it carefully down on the PCB
conveyor. The nozzle changer remains fixed
to the empty-tape duct.
WARNING:
There is always a risk of injuring
yourself on the cutting edge of the
blades.
X For this reason, the deflector plate,
the cover and the protective sheet
must be left in place.
X Undo the fixtures for the stop buffer assembly
(15) (two hexagon-socket head screws M8x25
on each side) on the left and right-hand sides
of the machine base, under the surface
supporting the changeover table.
X Remove the cover from the control board (14).
X Unplug the press-fit connection of the power
supply and the drive from the control board
(11, 10).
Service Work
Cutter Component Handling
Service Manual SIPLACE D4
89

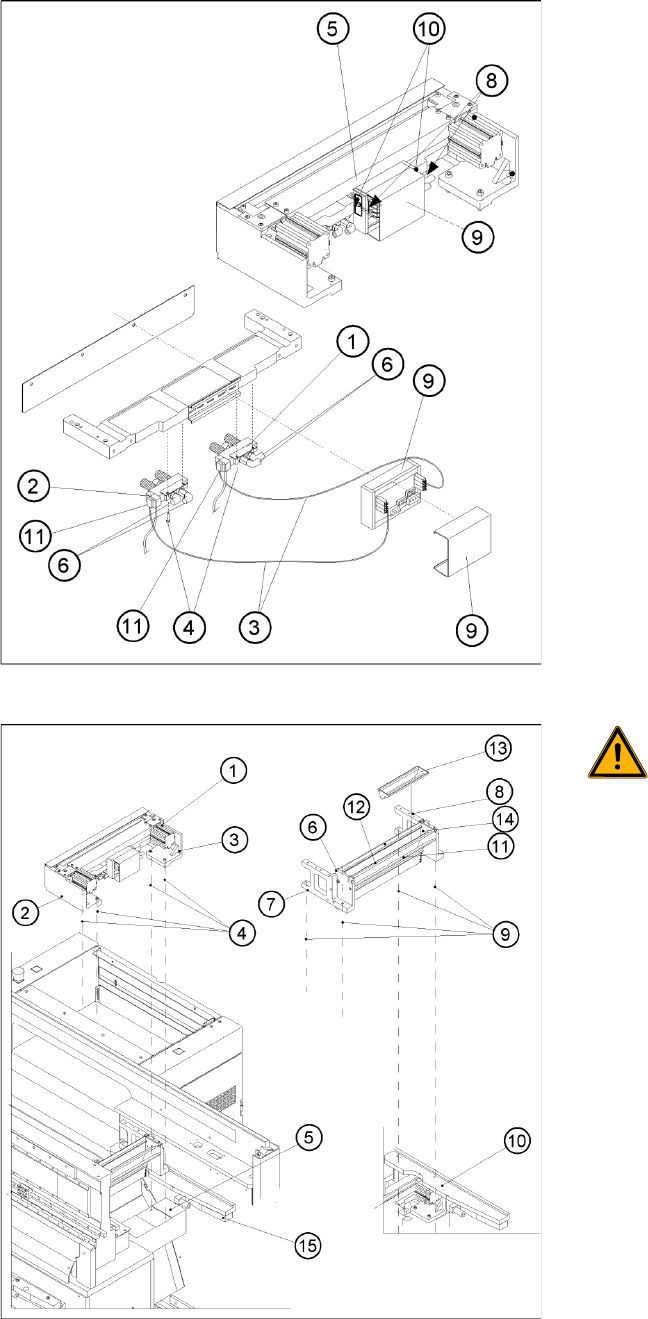

X Remove the cover from the cable duct (5).
X Disconnect the compressed air connection (9)
(Y socket union) for the cutter in the cable duct
(5).
X Unplug the plug-and-socket connection of the
power supply and the drive on the control
board (see -> 11, 10).
X Carefully undo the corresponding cable tie
(10) on the outside of the control board box.->
Do not damage the cables in this process.
WARNING:
The area under the cutter must be
clear.
X (e.g., do not place your feet under it
either).
X Loosen the screws fastening the cutter to the
machine base
2 M6x25 screws each (4), on the left (2) and
right cutter holders (3).
In exceptional cases, disks or plates may have
been installed between the contact surface of
the cutter on the machine base and the cutter
itself.
-> Save these disks / plates and re-install them
later.
X Securely hold the cutter tight at both ends.
X Pull the cutter out away from the contact
surfaces (on the machine base) towards the
outside of the machine (towards your body).
X Set the cutter down such that it does not pose
a risk of injury to uninvolved personnel either.
Put it in its own crate / container immediately.
