KMB-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KMB-M1309-A0 …
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。

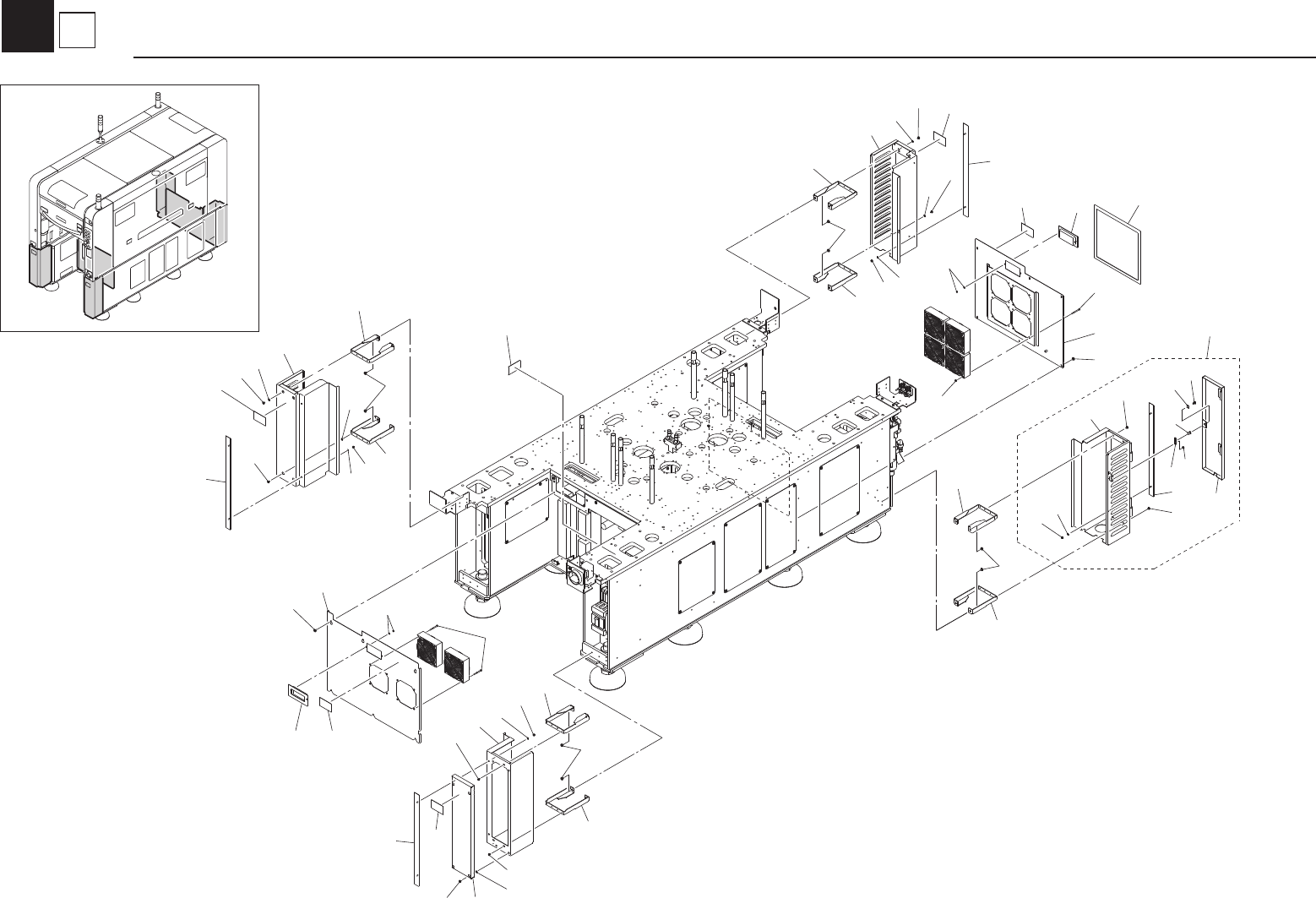

No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KMB-M1309-A0 COVER 9 ASSY. 2 /
Í
2 KLF-M1309-01 COVER 9-1 1 /
3 KMB-M130A-00 COVER 9-2 1 /
4 KMB-M130K-00 BRKT. 1,COVER 9 1 /
Í
5 KMB-M130L-00 BRKT. 2,COVER 9 1 /
Í
6 KMB-M130R-00 WINDOW,COVER 9 1 /
Í
7 KMB-M130S-00 PLATE,WINDOW 1 2 /
Í
8 KMB-M130T-00 PLATE,WINDOW 2 1 /
Í
9 KLF-M1347-00 COVER 9-4 1 /
10 KLF-M1345-00 PLATE,LINK 2 /
Í
11 KLF-M1324-00 KNOB 1 /
12 KLF-M134A-00 BRKT. NUT L 1 /
Í
13 KLF-M134B-00 BRKT. NUT R 1 /
Í
14 KLF-M1328-00 BRACKET, GAS DAMPER 2 /
Í
15 KGS-M1348-00 GAS,SPRING 2 A
16 K46-M1374-12 HINGE 2 3 /
Í
17 KLF-M1374-00 HINGE 2 /
Í
18 KLF-M1373-00 BRACKET 1, SCHMEASAL 1 /
Í
19 KL0-M1374-00 PLATE 1, SCHMEASAL 1 /
Í
20 KGS-M1360-00 BOLT 4 /
Í
21 KHT-M1346-00 BUSH 4 /
Í
22 90172-00J040 WASHER,EXTL.TOOTHED 15
23 90990-12J002 SCREW BIN.HEAD W/W 18
24 90990-28J003 WASHER, PLAIN 2
25 90990-28J166 WASHER,PLAIN 8
26 90990-31J006 BOLT, SHOULDER 8
27 90990-46J001 BOLT THIN HEAD 4
28 91312-04005 BOLT,HEX.SOCKET HEAD 12
29 91312-05008 BOLT,HEX.SOCKET HEAD 4
30 91312-05012 BOLT HEX.SOCKET HEAD 4
31 91312-06010 BOLT,HEX.SOCKET HEAD 2
32 92902-04200 WASHER,PLAIN 2
33 92902-05200 WASHER, PLAIN 4
34 92902-06200 WASHER,PLAIN 6
35 95307-06600 NUT, HEXAGON 2
36 95702-04500 NUT FLANGE 15
37 97602-04306 SCREW,BIN.HEAD W/W. 8
38 KLF-M26F4-00 PLATE 4 2 /
Í
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 KLF-M26F5-00 PLATE 5 2 /
Í
40 KKX-M13D7-00 SEAL 2(YAMAHA) 2 /
41 KMB-M13D8-00 LABEL(Z:TAR) 2 /
42 90K41-001250 LABEL,WARNING 2 /
43 90K41-001420 LABEL,WARNING 2 /
44 KLF-M1392-00 LABEL,WARNING 2 /
45 91312-05008 BOLT,HEX.SOCKET HEAD 18
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
2
2
Door
Cover
