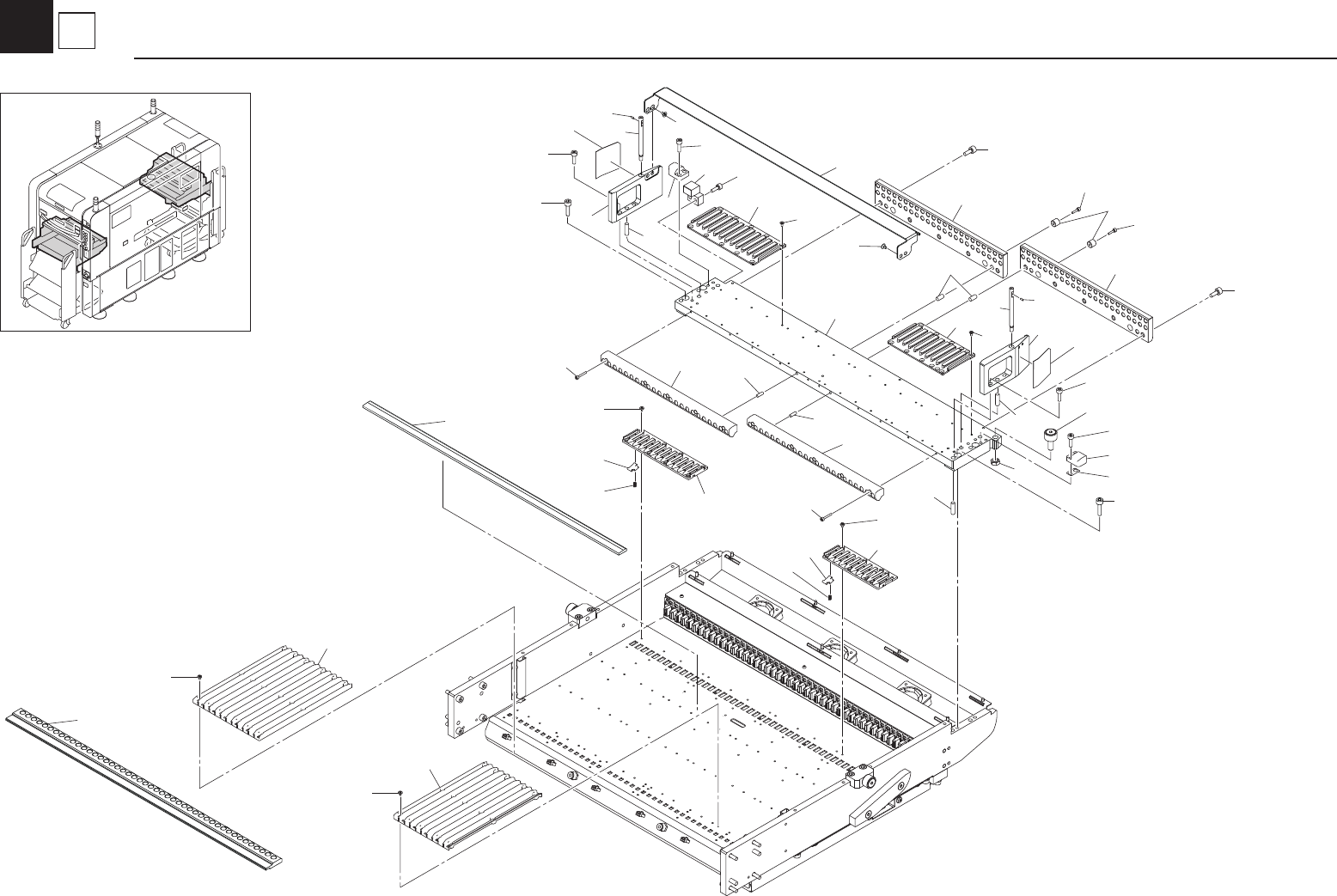

KMB-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KLF-M1310-02 …
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M1310-02 COVER 10 1 /
Í
2 KLF-M1311-A1 COVER 11 ASSY. 1 /
Í
3 KLF-M1311-02 COVER 11 1 /
Í
4 KLF-M132D-01 COVER 11-1 1 /
5 KLF-M137A-01 COVER,PANEL A 1 /
6 KGJ-M1350-00 SPACER,MINI LATCH 1 /
7 KGJ-M1351-01 PLATE,MINI LATCH 1 /
8 KW3-M1349-00 MINI LATCH 1 /
9 90990-12J006 SCREW BIND HEAD W/W 2
10 90172-00J040 WASHER,EXTL.TOOTHED 8
11 95702-04500 NUT FLANGE 14 /
Í
12 KMB-M1312-00 COVER 12 1 /
Í
13 KLF-M1313-02 COVER 13 1 /
Í
14 KLF-M1314-02 COVER 14 1 /
Í
15 KLF-M1315-04 COVER,15 1 /
Í
16 KHU-M1117-00 PULL 2 /
Í
17 KLF-M132A-01 COVER 10-1 1 /
18 KLF-M137A-01 COVER,PANEL A 3 /
19 KLF-M13E1-00 BRKT.,COVER 8 /
Í
20 KLF-M131J-00 FILTER,REAR BASE FAN 1 E
21 90K41-001270 LABEL,WARNING 6 /
22 KH1-M1396-00 WASHER 12
/
23 90990-12J001 SCREW,BIN. HEAD W/W 20
24 90990-12J004 SCREW, BIN. HEAD W/W 16
25 91312-04045 BOLT,HEX.SOCKET HEAD 8
26 95302-04600 NUT,HEXAGON 16
27 98502-04050 SCREW PAN HEAD (+) 16
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
2
3
Base
Cover
