KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KMB-M3751-01 PLATE,FEEDER 1
/
Í
2 KLF-M3754-01 PLATE,FRONT 2 /
Í
3 KMB-M3755-00 PLATE,UPPER 2 /
Í
4 KLF-M3757-00 SHAFT,GUIDE 2 /
Í
5 KLF-M375H-00 RAIL,GUIDE 12P 1 /
Í
6 KLF-M375N-00 GUIDE,FEEDER UNDER 1 /
Í
7 KMB-M375T-01 PLATE,UPPER L 1 /
Í
8 KMB-M375T-51 PLATE,UPPER R 1 /
Í
9 KLF-M375X-00 GUIDE,FEEDER UNDER 3 /
Í
10 KLF-M375X-50 GUIDE,FEEDER UNDER 1 /
Í
11 KMB-M3761-00 PLATE,MAIN 1 /
Í
12 KLF-M3763-00 CAM FOLLOWER 1 /
Í
13 KLF-M3764-00 PIN 2 /
Í
14 KMB-M3765-00 TAPE 2 /
Í
15 KMB-M3714-00 PIN,MARK 2 /
Í
16 KHY-M371R-00 RAIL GUIDE 12P 3 /
Í
17 KHY-M372P-00 SUPPORT,LEVER 46 /
Í
18 KHY-M372R-00 GUIDE,FEEDER UNDER 3 /
Í
19 KHY-M372S-01 SPRING,SUPPORT 46 /
Í
20 91312-03012 BOLT,HEX.SOCKET HEAD 2
21 91317-03018 BOLT,HEX.SOCKET HEAD 10
22 91312-05014 BOLT,HEX.SOCKET HEAD
2
23 91312-05016 BOLT,HEX.SOCKET HEAD 8
24 91312-06014 BOLT,HEX.SOCKET HEAD 10
25 91312-06022 BOLT,HEX.SOCKET HEAD 4
26 91609-20005 PIN, SPRING 2
27 95302-08700 NUT, HEXAGON 1
28 98702-03006 SCREW, FLAT HEAD 40
29 98902-03004 SCREW, BINDING HEAD 101
30 99480-04012 PIN, PARALLEL 2
31 99480-06012 PIN, PARALLEL 2
32 99480-06020 PIN, PARALLEL 8
33 90990-30J097 SHIMS 1
34 KMB-M3767-00 PLATE,SUPPORT ASSY. 1
35 KMB-M3773-00 PLATE,GUIDE ASSY. 1
36 KMB-M3712-00 COVER,TAPE GUIDE 1
37 98702-04006 SCREW,FLAT HEAD 4
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
3
1

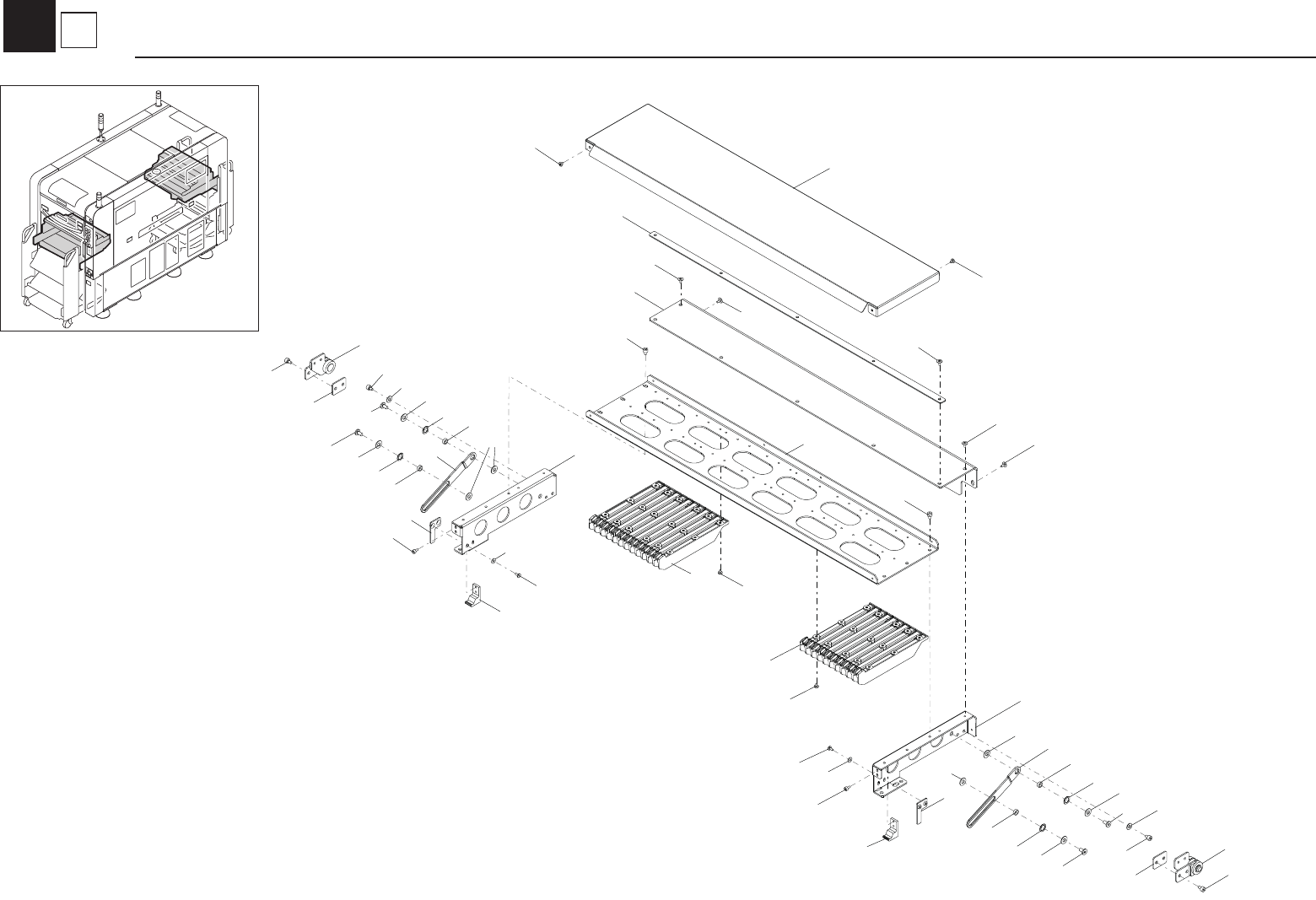

Bank FES46 Rail Guide
Feeder Holder
KMB-1712
26
15
25
28
24
10
17
20
23
27
19
19
27
27
20
20
7
7
6
5
2
18
22
11
23
3
14
18
5
8
27
13
6
7
1
7
4
22
27
26
27
19
21
19
23
16
9
23
28
21
21
26
15
25
28
24
10
17
20
23
27
19
19
27
27
20
20
7
7
6
5
2
18
22
11
23
3
14
18
5
8
27
13
6
7
1
7
4
22
27
26
27
19
21
19
23
16
9
23
28
21
21
3
2
Cover FES46 Moving Part
Feeder Holder
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M374N-00 DOG,SENSOR R 1 /
Í
2 KLF-M374N-50 DOG,SENSOR L 1 /
Í
3 KLF-M374S-00 GUIDE,FEEDER UPPER 3 /
Í
4 KLF-M374T-00 GUIDE,FEEDER UPPER 1 /
5 KLW-M374B-00 PLATE,CLAMP 2 /
Í
6 KMB-M3741-00 PLATE,STOPPER 2 /
Í
7 KMB-M3742-00 SPACER 4 /
8 KMB-M3744-00 PLATE,HOLD 1 A
Í
9 KMB-M3746-00 HINGE R 1 /
Í
10 KMB-M3746-50 HINGE L 1 /
Í
11 KMB-M374H-01 PLATE,OBSTRUCTIVE 1 /
Í
12 KMB-M374M-00 COVER,TOP 1 /
Í
13 KMB-M374P-00 PLATE,UPPER 1 /
Í
14 KMB-M374R-01 ARM,UPPER GUIDE R 1 /
Í
15 KMB-M374R-51 ARM,UPPER GUIDE L 1 /
Í
16 KMB-M374Y-01 BASE,ARM R 1 /
Í
17 KMB-M374Y-51 BASE,ARM L 1 /
Í
18 90990-01J039 BOLT HEX,SOCKET HEAD 4
19 90990-01J074 BOLT HEX,SOCKET HEAD 4
20 90990-28J193 WASHER,PLAIN 4
21 90990-46J005 BOLT, THIN HEAD 9
22 91312-03006 BOLT HEX,SOCKET HEAD 4
23 91312-04005 BOLT HEX,SOCKET HEAD 10
24 91312-04006 BOLT HEX,SOCKET HEAD 4
25 92902-03200 WASHER,PLAIN 4
26 92902-04200 WASHER,PLAIN 4
27 92902-05200 WASHER,PLAIN 8
28 98902-03004 SCREW BINDING HEAD 73
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
3
2
Cover FES46 Moving Part
Feeder Holder
