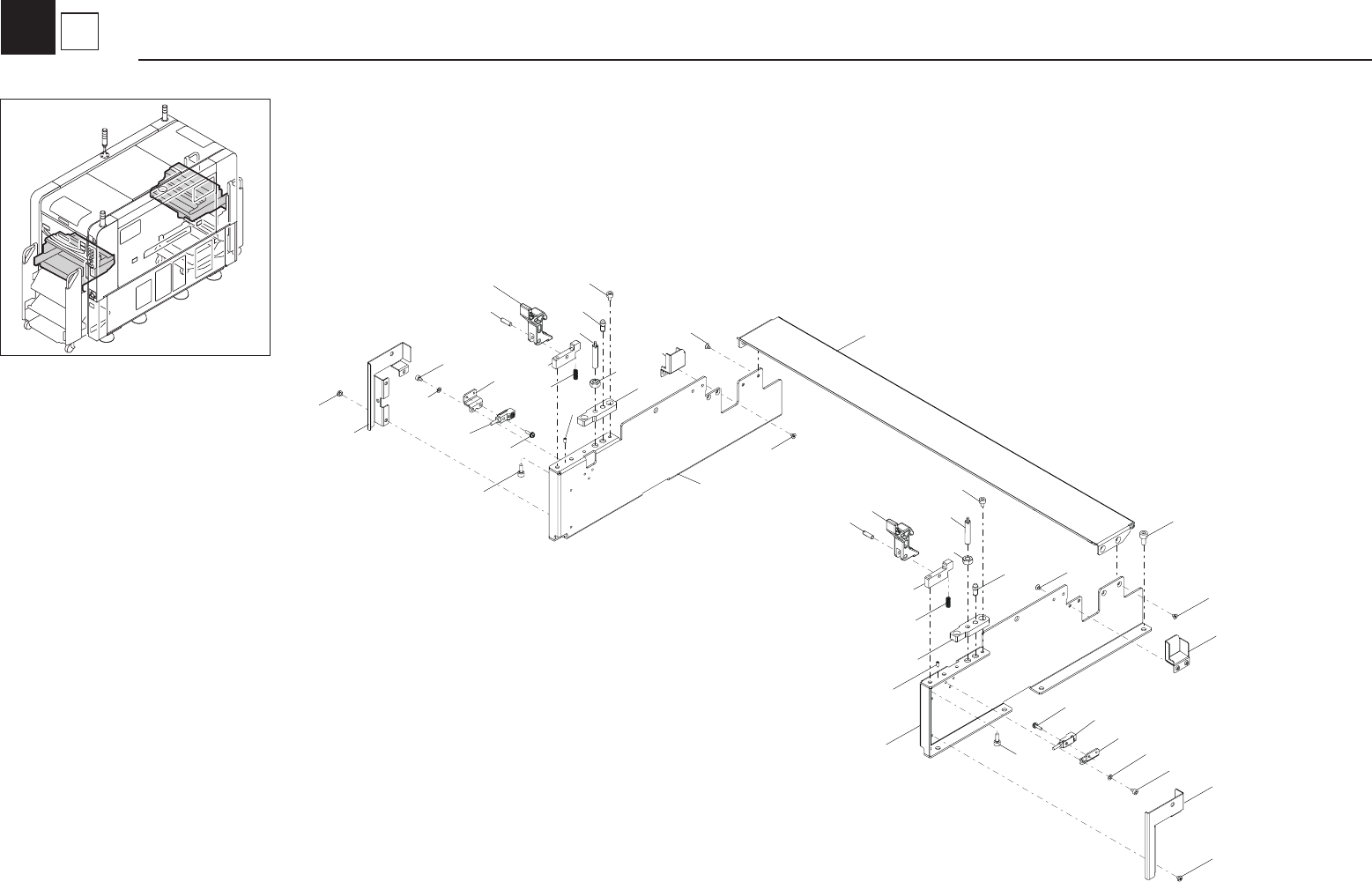

YSM40R_KMB_mpl - 第18页
KMB-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KLF-M374N-00 …
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M374N-00 DOG,SENSOR R 1 /
Í
2 KLF-M374N-50 DOG,SENSOR L 1 /
Í
3 KLF-M374S-00 GUIDE,FEEDER UPPER 3 /
Í
4 KLF-M374T-00 GUIDE,FEEDER UPPER 1 /
5 KLW-M374B-00 PLATE,CLAMP 2 /
Í
6 KMB-M3741-00 PLATE,STOPPER 2 /
Í
7 KMB-M3742-00 SPACER 4 /
8 KMB-M3744-00 PLATE,HOLD 1 A
Í
9 KMB-M3746-00 HINGE R 1 /
Í
10 KMB-M3746-50 HINGE L 1 /
Í
11 KMB-M374H-01 PLATE,OBSTRUCTIVE 1 /
Í
12 KMB-M374M-00 COVER,TOP 1 /
Í
13 KMB-M374P-00 PLATE,UPPER 1 /
Í
14 KMB-M374R-01 ARM,UPPER GUIDE R 1 /
Í
15 KMB-M374R-51 ARM,UPPER GUIDE L 1 /
Í
16 KMB-M374Y-01 BASE,ARM R 1 /
Í
17 KMB-M374Y-51 BASE,ARM L 1 /
Í
18 90990-01J039 BOLT HEX,SOCKET HEAD 4
19 90990-01J074 BOLT HEX,SOCKET HEAD 4
20 90990-28J193 WASHER,PLAIN 4
21 90990-46J005 BOLT, THIN HEAD 9
22 91312-03006 BOLT HEX,SOCKET HEAD 4
23 91312-04005 BOLT HEX,SOCKET HEAD 10
24 91312-04006 BOLT HEX,SOCKET HEAD 4
25 92902-03200 WASHER,PLAIN 4
26 92902-04200 WASHER,PLAIN 4
27 92902-05200 WASHER,PLAIN 8
28 98902-03004 SCREW BINDING HEAD 73
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
3
2
Cover FES46 Moving Part
Feeder Holder
