YSM40R_KMB_mpl - 第27页
KMB-1712 17 25 7 20 20 12 4 29 30 15 15 9 19 28 24 24 21 23 23 18 10 2 1 26 19 19 19 22 6 8 11 27 16 5 20 3 28 13 14 31 5 1 Head (MU) Head
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KMB-M0201-A0 X AXIS A,D SUB ASSY. 1 /
Í
2 KMB-M2227-00 BRKT.,STOPPER 1 /
Í
3 KMB-M2228-00 BRKT.,A FAN Y-M 1 /
Í
4 KMB-M2229-00 BRKT.,B FAN Y-M 1 Type B, C /
Í
5 KMB-M222D-00 PLATE,NUT X MOTOR 2 /
Í
6 KMB-M2233-00 BRKT.,A SENSOR 1 /
Í
7 KMB-M2234-00 BRKT.,B SENSOR 1 Type B, C /
Í
8 KMB-M223D-00 STAY,R HEAD 1 /
Í
9 KMB-M223E-00 STAY,L HEAD 1 Type B, C /
Í
10 KLF-M224L-00 BRKT.,CONN. 1 /
Í
11 KMB-M224V-00 BRKT.,A FAN XM 1 /
Í
12 KMB-M224W-00 BRKT.,B FAN XM 1 Type B, C /
Í
13 KMB-M2258-00 BRKT.,FIX XS AXIS 1 /
Í
14 KMB-M227A-00 COVER,BS.A-1 1 /
15 KMB-M227D-00 COVER,BS.B-1 1 Type B, C /
16 KMB-M227B-00 COVER,BS.A-2 1 /
Í
17 KMB-M227E-00 COVER,BS.B-2 1 Type B, C /
Í
18 KMB-M22M0-00 AC SERVO MOTOR 1 B
Í
19 KV7-M2651-00 DAMPER, STOPPER 1 /
Í
20 KHW-M2654-00 PLATE,DAMPER 1 /
Í
21 KMB-M266A-00 PLATE,PIPE 1 /
Í
22 KHY-M266C-00 BLOCK,JOINT 1 /
Í
23 KMB-M266S-XX SHIM,SEL 1
0.1t 90990-29J092 0.2t 90990-29J093
/
Í
24 KLF-M2671-00 HOLDER,1 Y-RH 1 /
Í
25 KLF-M2672-00 DOG,YR 2ND-LIMIT 1 /
Í
26 KMB-M2673-00 DOG,Y ORG 1 /
Í
27 KMB-M2674-00 BRKT.,Y DOG 1 /
Í
28 KLF-M2675-01 HOLDER,2 Y-RH 1 /
Í
29 KMB-M2696-00 DOG,COL. 1 /
Í
30 KGT-M71ST-00 STICKER,HEAD 1 /
Í
31 KLV-M750A-00 COUPLING 10X14 1 /
Í
32 KMB-M653A-00 SENSOR,X ORG ASSY 1 B
Í
33 KMB-M653B-00 SENSOR,X OT-1 ASSY 1 B
Í
34 KMB-M653B-10 SENSOR,X OT-2 ASSY 1 B
Í
35 KMB-M653C-00 SENSOR,Y SAFE ASSY 1 Type B, C B
Í
36 $BF4U JOINT 1
37 90K41-001730 LABEL,CAUTION 1
38 90K81-000001 GREASE NIPPLE 1
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 90990-01J156 BOLT HEX,SOCKET HEAD 4
40 90990-01J157 BOLT HEX,SOCKET HEAD 6
41 90990-41J180 COLLAR 2
42 90112-2AJ020 BOLT, HEX.SOCKET HEAD 2
43 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
44 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
45 91312-04006 BOLT,HEX.SOCKET HEAD 4 M4X6
46 91312-04008 BOLT,HEX.SOCKET HEAD 7 M4X8
47 91312-04010 BOLT HEX.SOCKET HEAD 14 M4X10
48 91312-04012 BOLT HEX.SOCKET HEAD 2 M4X12
49 91312-04014 BOLT HEX.SOCKET HEAD 5 M4X14
50 91312-04016 BOLT,HEX.SOCKET HEAD 3 M4X16
51 91312-04018 BOLT,HEX.SOCKET HEAD 4
M4X18 Y-MOTOR
52 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
53 91312-04030 BOLT HEX.SOCKET HEAD 4 M4X30
54 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
55 91312-05018 BOLT HEX.SOCKET HEAD 2 M5X18
56 91312-05020 BOLT HEX.SOCKET HEAD 9
M5X20 Y-MOTOR
57 91312-05025 BOLT HEX.SOCKET HEAD 2 M5X25
58 91312-05035 BOLT HEX.SOCKET HEAD 2 M5X35
59 91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12
60 91312-08012 BOLT HEX.SOCKET HEAD 8 M8X12
61 97602-03308 SCREW,PAN HEAD W/W 4
62 97602-03310 SCREW,PAN HEAD W/W 4
63 98902-04006 SCREW, BINDING HEAD 8
64 98902-04008 SCREW, BINDING HEAD 7
65 92902-03200 WASHER, PLAIN 4
66 92902-04200 WASHER, PLAIN 2
67 95302-03600 NUT, HEXAGON 2
68
69
70
71
72
73
74
75
76
4
1
X-axis Motor / Sensor / Cover
Moving-axis
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M71K0-00 Z AXIS ASSY.1 2 B
Í
2 KLF-M71L0-00 Z AXIS ASSY.2 2 B
Í
3 KLF-M715A-A2 VALVE,ASSY. 1 B
Í
4 KLF-M7150-B0 VALVE,PRESS. 1 B
Í
5 KLF-M7109-00 BASE,VALVE 1 /
Í
6 KLF-M71C1-00 COVER,CABLE 1 /
Í
7 KLF-M71C4-00 BRACKET,CONNECTOR 1 /
Í
8 KLF-M71C8-00 BRACKET,COVER 1 /
Í
9 KLF-M71C9-01 COVER,HEAD 1 /
10 KLF-M71CD-00 CLAMP,HARNESS 2 /
Í
11 KLF-M71Y0-00 LABEL,HEAD SERIAL 2 /
Í
12 KLF-M7152-00 VALVE, SPARE 1 Spare B
Í
13 KLF-M7153-00 VALVE 1 Spare B
14 KLF-M7154-00 JOINT 1 Spare /
Í
15 90990-01J058 BOLT,HEX.SOCKET HEAD 6
16 90990-46J007 BOLT,THIN HEAD 4
17 97602-04306 SCREW,BIN.HEAD W/W. 4
18 98902-03004 SCREW BINDING HEAD 6
19 91312-04005 BOLT HEX.SOCKET HEAD 8 M4X5
20 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
21 91312-04016 BOLT,HEX.SOCKET HEAD 4 M4X16
22 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
23 91312-04045 BOLT HEX.SOCKET HEAD
16 M4X45
24 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
25 $NK-4N NYLON CLIP 4
26 KLF-M712A-00 TUBE(TUS0425N) 6 /
Í
27 KLF-M712B-00 TUBE(TUS0425N) 4 /
Í
28 KLF-M712C-00 TUBE(TUS0425N) 10 /
Í
29 KLF-M712D-00 TUBE(TUS0425N) 4 /
Í
30 $UB0850-R URETHANE TUBE 2 (200mm) /
Í
31 KLF-M7153-10 VALVE 1 Spare B
Í
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
5
1

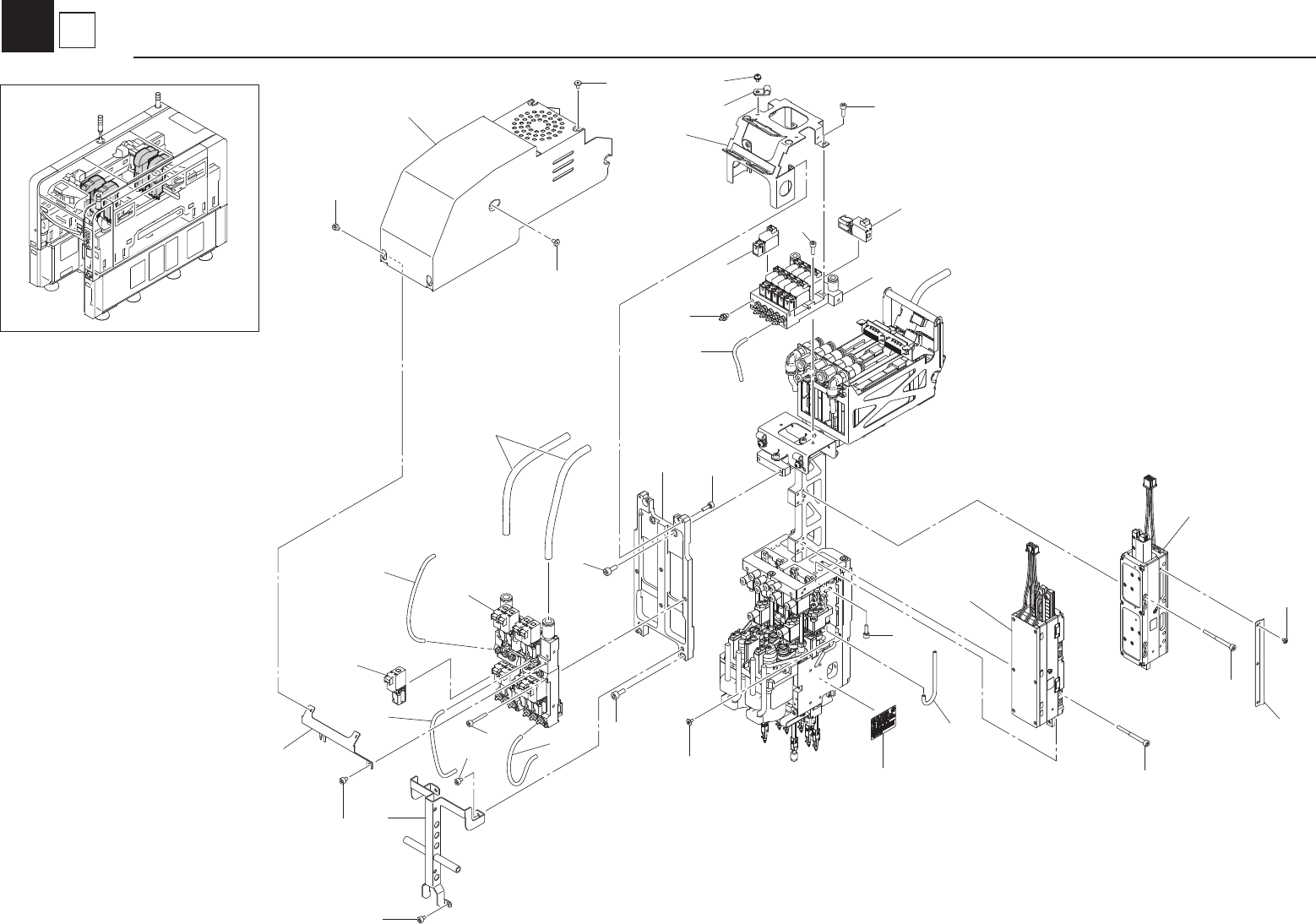

Head (MU)
Head
