KMB-1712 9 9 10 10 14 15 17 15 9 9 10 10 14 15 16 15 9 9 10 10 14 15 16 15 9 9 10 10 14 15 16 15 9 9 10 10 14 15 16 15 1 9 13 11 12 9 10 10 2 3 4 5 6 13 11 12 13 11 12 13 11 12 2 5 6 5 6 2 1 1 4 3 13 11 12 13 11 12 7 7 8…

100%1 / 79
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M71K0-00 Z AXIS ASSY.1 2 B
Í
2 KLF-M71L0-00 Z AXIS ASSY.2 2 B
Í
3 KLF-M715A-A2 VALVE,ASSY. 1 B
Í
4 KLF-M7150-B0 VALVE,PRESS. 1 B
Í
5 KLF-M7109-00 BASE,VALVE 1 /
Í
6 KLF-M71C1-00 COVER,CABLE 1 /
Í
7 KLF-M71C4-00 BRACKET,CONNECTOR 1 /
Í
8 KLF-M71C8-00 BRACKET,COVER 1 /
Í
9 KLF-M71C9-01 COVER,HEAD 1 /
10 KLF-M71CD-00 CLAMP,HARNESS 2 /
Í
11 KLF-M71Y0-00 LABEL,HEAD SERIAL 2 /
Í
12 KLF-M7152-00 VALVE, SPARE 1 Spare B
Í
13 KLF-M7153-00 VALVE 1 Spare B
14 KLF-M7154-00 JOINT 1 Spare /
Í
15 90990-01J058 BOLT,HEX.SOCKET HEAD 6
16 90990-46J007 BOLT,THIN HEAD 4
17 97602-04306 SCREW,BIN.HEAD W/W. 4
18 98902-03004 SCREW BINDING HEAD 6
19 91312-04005 BOLT HEX.SOCKET HEAD 8 M4X5
20 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
21 91312-04016 BOLT,HEX.SOCKET HEAD 4 M4X16
22 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
23 91312-04045 BOLT HEX.SOCKET HEAD
16 M4X45
24 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
25 $NK-4N NYLON CLIP 4
26 KLF-M712A-00 TUBE(TUS0425N) 6 /
Í
27 KLF-M712B-00 TUBE(TUS0425N) 4 /
Í
28 KLF-M712C-00 TUBE(TUS0425N) 10 /
Í
29 KLF-M712D-00 TUBE(TUS0425N) 4 /
Í
30 $UB0850-R URETHANE TUBE 2 (200mm) /
Í
31 KLF-M7153-10 VALVE 1 Spare B
Í
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
5
1
Head (MU)
Head
KMB-1712
9
9
10
10
14
15
17
15
9
9
10
10
14
15
16
15
9
9
10
10
14
15
16
15
9
9
10
10
14
15
16
15
9
9
10
10
14
15
16
15
1
9
13
11
12
9
10
10
2
3
4
5
6
13
11
12
13
11
12
13
11
12
2
5
6
5
6
2
1
1
4
3
13
11
12
13
11
12
7
7
8
8
8
8
14
15
17
15
5
2

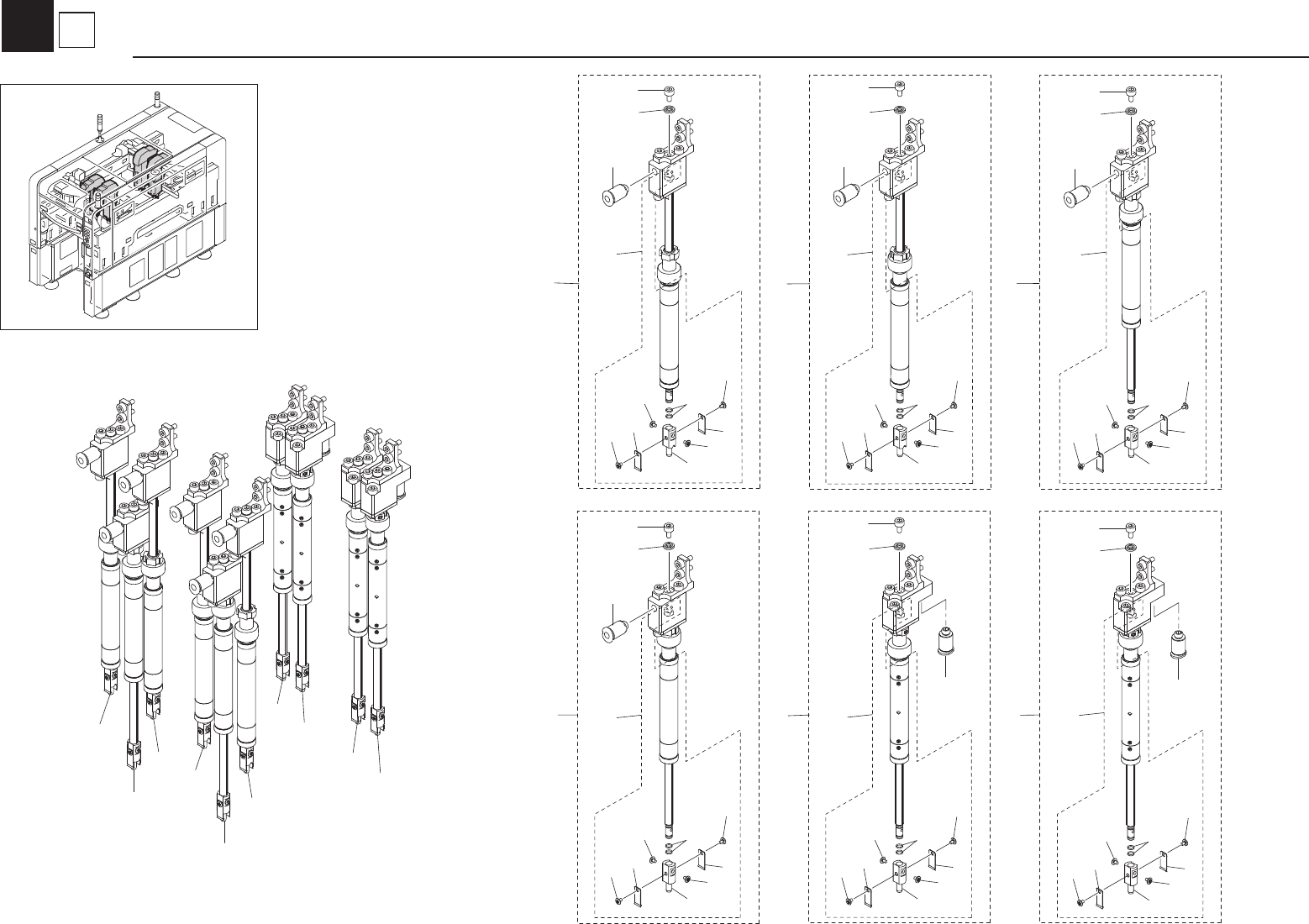

Head Shaft Assy (MU)
Head
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M7106-A0 HEAD SHAFT 1 ASSY. 2 /
Í
2 KLF-M7106-B0 HEAD SHAFT 1 ASSY. 2 /
Í
3 KLF-M7106-C0 HEAD SHAFT 1 ASSY. 1 /
Í
4 KLF-M7106-D0 HEAD SHAFT 1 ASSY. 1 /
Í
5 KLF-M7107-A0 HEAD SHAFT 2 ASSY. 2 /
Í
6 KLF-M7107-B0 HEAD SHAFT 2 ASSY. 2 /
Í
7 KLF-M711S-A0 SHAFT 1,SPARE 1 Spare /
Í
8 KLF-M712S-A0 SHAFT 2,SPARE 1 Spare /
Í
9 KG7-M7137-A0 LEAF SPRING 20 A
10 90990-08J016 SCREW,PAN HEAD 20
11 91317-03005 BOLT HEX.SOCKET HEAD 10 M3X5
12 90990-36J007 WASHER,SEAL 10
13 $TSH4-M5M JOINT 4
14 90990-17J053 O-RING 12
15 90990-08J016 SCREW,PAN HEAD 12
16 KLF-M7105-00 HOLDER,NOZZLE 4 /
Í
17 KLF-M7105-10 HOLDER,NOZZLE 2 V-groove /
Í
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
5
2
Head Shaft Assy (MU)
Head
