KMB-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KMB-M7010-00 …
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KMB-M7010-00 ROTARY ASSY. 1 No Nozzle /
Í
2 KMB-M7006-A0 HEAD SHAFT 1 ASSY. 9 /
Í
3 KMB-M7006-00 BALL SPLINE 1 /
Í
4 KMB-M7008-00 SHAFT,NOZZLE 1 /
Í
5 KMB-M7015-01 SPRING 1 /
Í
6 KMB-M7016-00 SPRING,NOZZLE 1 /
Í
7 KMB-M7018-00 NUT,SHAFT 1 /
Í
8 KMB-M702C-02 NUT,SPLINE 1 /
Í
9 KMB-M70ER-00 WASHER 1 /
Í
10 KMB-M7070-00 FILTER 1 /
Í
11 KMB-M7007-A0 HEAD SHAFT 2 ASSY. 9 /
Í
12 KMB-M7007-00 BALL SPLINE 1 /
Í
13 KMB-M7012-00 HOLDER,DIFF. 1 /
Í
14 KMB-M7013-01 DIFFUSER 1 /
Í
15 KMB-M7014-01 NUT,BRG. 1
/
Í
16 KMB-M7022-00 WASHER,SHAFT 1 /
Í
17 KMB-M702G-00 LABEL,SHAFT NUMBER 1
/
Í
18 KMB-M7026-00 NUT,GEAR 3 1 /
Í
19 KMB-M7027-00 NUT,GEAR 2 1 /
Í
20 KMB-M7032-00 COUPLING,R 1 /
Í
21 KMB-M7034-00 GEAR,R3
1 /
Í
22 KMB-M7042-00 HOLDER,MAIN 1 /
Í
23 KMB-M70V0-00 VALVE,ASSY. 18 C
24 90990-01J031 BOLT,HEX.SOCKET HEAD 18
25 90990-01J155 BOLT,HEX.SOCKET HEAD 2
26 90990-18J035 PIN,PARALLEL 18
27 90990-08J035 SCREW,PAN HEAD 3
28 90990-08J038 SCREW,PAN HEAD 36
29
30 90115-02J008 BOLT,HEX.SOCKET HEAD 3
31 90112-02J012 BOLT,HEX.S.H: M2X12 4
32 91312-03012 BOLT,HEX.SOCKET HEAD 2
33 99480-03008 PIN, PARALLEL 1
34 90933-01J803 BEARING 1
35 90933-01J809 BEARING 1
36 KMB-M7017-00 COVER,ROTARY 1
37 KMB-M701A-00 COVER,NUT 1
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
5
4

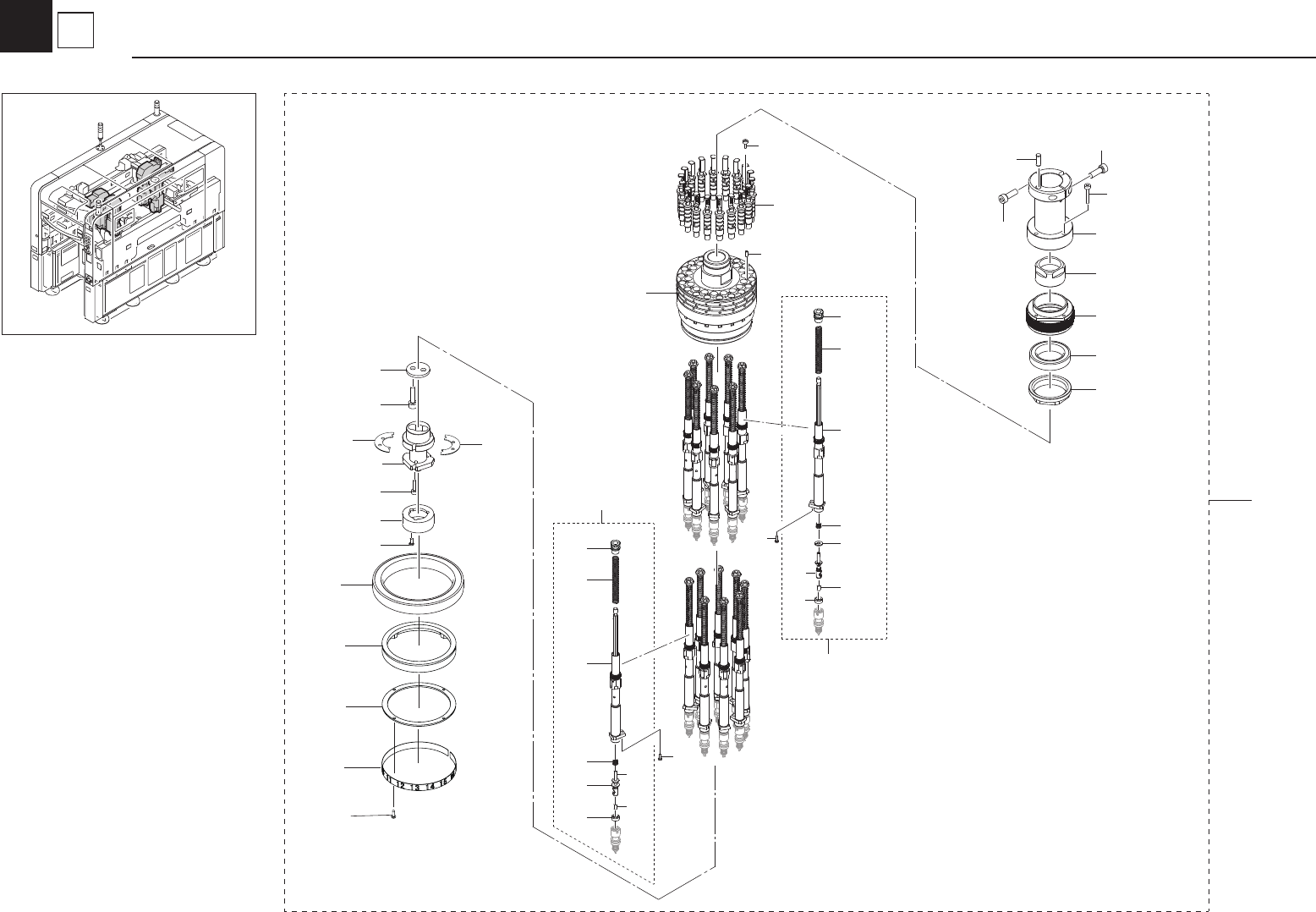

Rotary shaft Assy (RS)
Head
KMB-1712
1

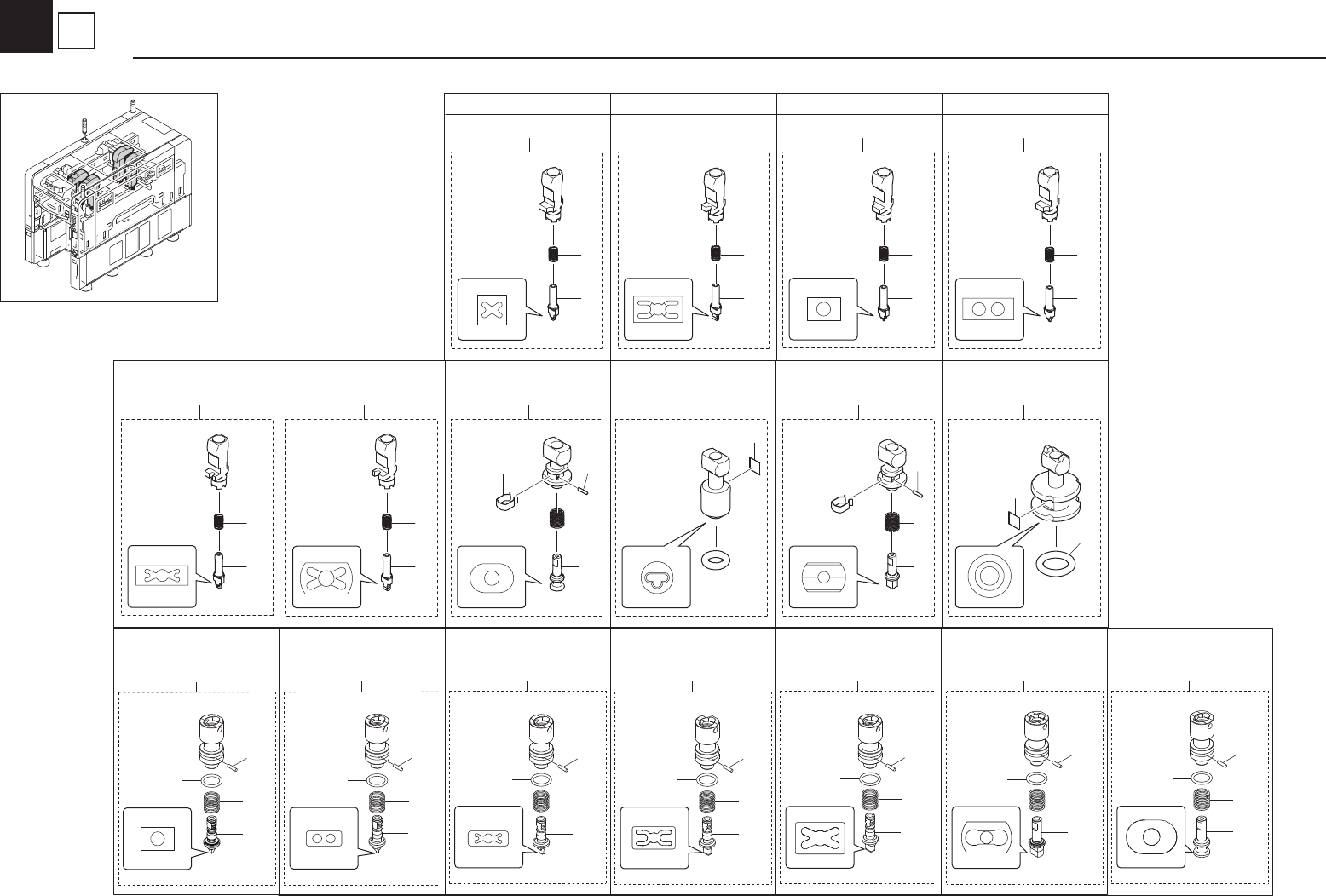

NOZZLE 501A ASSY.
2
3
10
NOZZLE 512A ASSY.
11
3
12
NOZZLE 513A ASSY.
13
3
17
18
14
NOZZLE 503A/514A ASSY.
15
16
4
NOZZLE 502A ASSY.
5
3
6
NOZZLE 510A ASSY.
7
3
8
NOZZLE 511A ASSY.
9
3
20
19
NOZZLE 504A/515A ASSY.
21
17
18
22
NOZZLE 506A/515A ASSY. NOZZLE 507A/518A ASSY.
23
16
24
20
25
30
31
33
35
41
27
42
29
28
28
27
36
29
28
27
34
29
28
27
32
29
28
27
26
29
NOZZLE M7730 ASSY. NOZZLE M7740 ASSY. NOZZLE M7750 ASSY. NOZZLE M7760 ASSY. NOZZLE M7770 ASSY.
39
28
27
40
29
NOZZLE M7720 ASSY.
37
27
38
29
28
NOZZLE M7780 ASSY.
6
1
Nozzle
Nozzle
