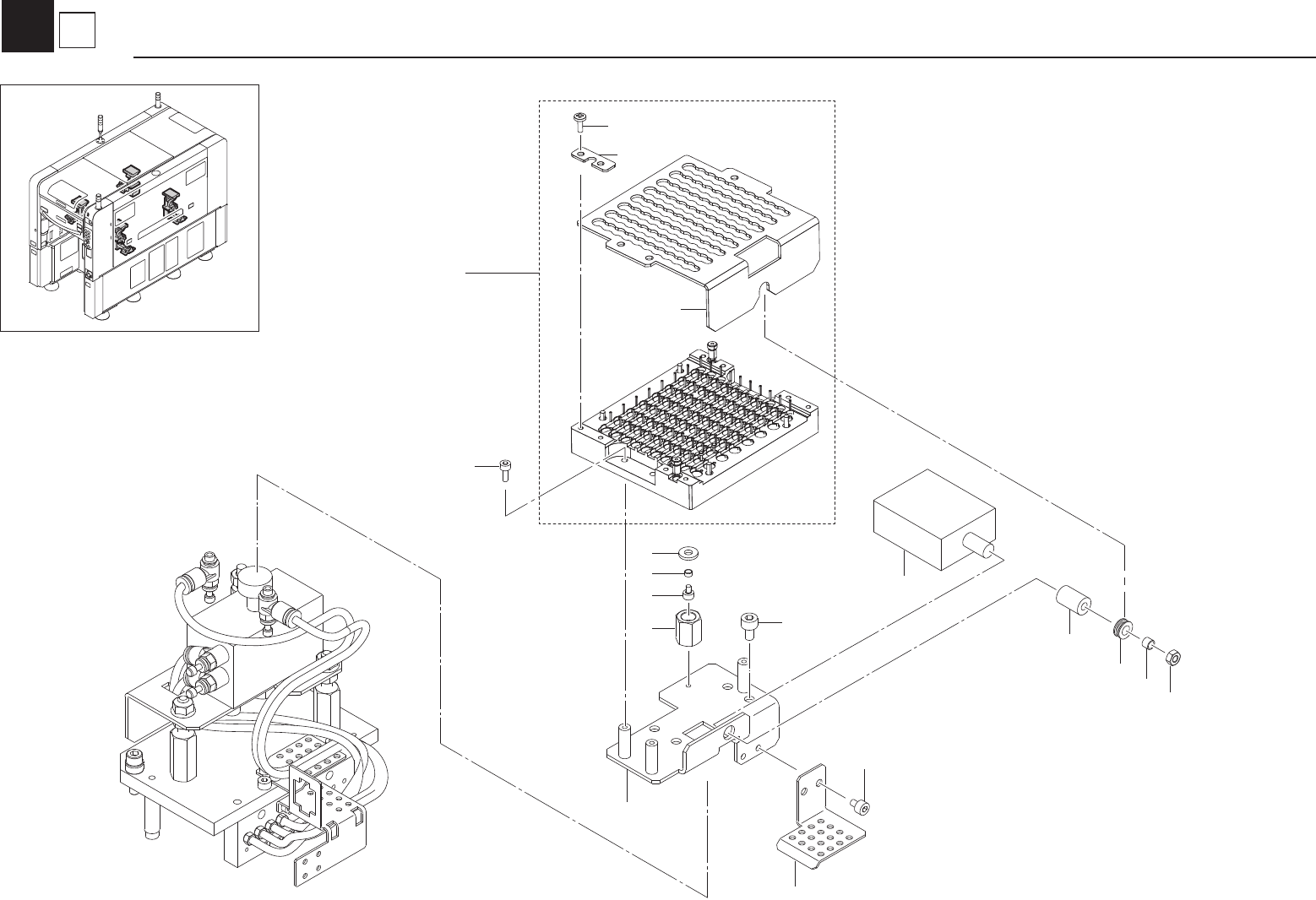

KMB-1712 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 KMB-M653G-00 …
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KMB-M653G-00 CYL.ANC OP/CL ASSY 1 /
Í
2 KMB-M9614-00 JOINT,CYL. 1 /
Í
3 KMB-M9615-00 PLATE 1 1 /
Í
4 KMB-M9619-00 BRACKET 1 1 /
Í
5 KMB-M9625-00 STOPPER 1 /
Í
6 KMB-M9626-00 STOPPER 1 /
Í
7 KMB-M9660-A0 CLAMP HOLDER ASSY. 1 /
Í
8 KHY-M9614-00 STOPPER,CYLINDER 1
9 90990-41J042 COLLAR 1
10 90990-41J134 COLLAR 1
11 91312-03004 BOLT,HEX.SOCKET HEAD 1
12 91312-03008 BOLT,HEX.SOCKET HEAD 3
13 91312-04005 BOLT,HEX.SOCKET HEAD 2
14 91312-05008 BOLT,HEX.SOCKET HEAD 4
15 95302-04600 NUT,HEXAGON 1
16 KMB-M9611-00 PLATE, CLAMP 1 /
Í
17 KMB-M9612-00 SHEET, CLAMP GUIDE 4 /
Í
18 98902-03008 SCREW, BINDING HEAD 12
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
