YSM40R_KMB_mpl - 第45页

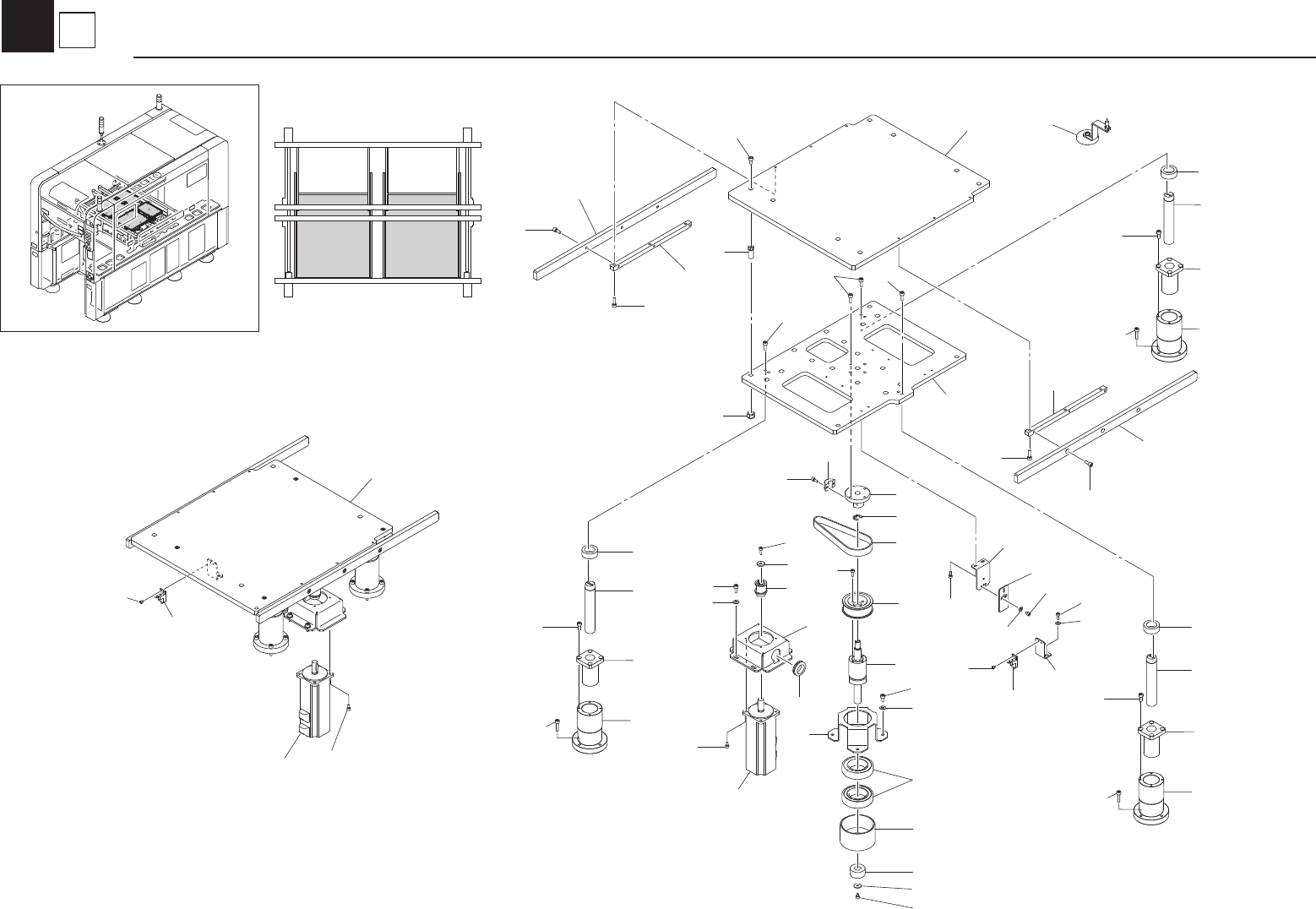

KMB-1712 44 3 3 6 6 2 1 37 D A B C 37 39 39 38 38 38 43 35 35 5 15 23 36 42 29 17 10 10 13 18 32 28 8 34 34 31 34 16 20 31 21 41 24 7 32 41 19 37 42 33 33 26 27 22 4 9 30 25 36 14 46 46 45 10 46 12 11 37 40 12 11 37 40 1…
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M99D0-01 DUMP BOX ASSY 1 /
2 KLF-M99D1-02 DUMP BOX 1 /
3 KLF-M99D2-02 DIFFUSE PLATE 1 /
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
6
5
Dump Box
Nozzle
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KMB-M920A-00 PLATE 1(357X400) 1 A-Table /
Í
2 KLF-M920B-00 STAY 1 /
Í
3 KLF-M920C-00 PLATE,ARM 2 /
Í
4 KLF-M9212-00 HOUSING 1 /
Í
5 KLF-M921D-00 BELT 342-3GT-15 1 /
Í
6 KLF-M921G-00 PLATE 2 /
Í
7 KLF-M921H-01 PLATE,DOG 1 L=58mm /
Í
8 KLF-M921N-00 JOINT A 1 /
Í
9 KLF-M921S-00 BRKT.,MOTOR 1 /
Í
10 KLF-M9226-00 SHAFT 3 /
Í
11 KLF-M9227-02 HOUSING SLEEVE 3 /
Í
12 KLF-M9232-00 BALL BUSH 3 /
Í
13 KLF-M9238-00 COLLAR 1 /
Í
14 KGA-M921T-00 BOLT 4 /
Í
15 KHW-M9215-00 PULLEY:P60-3GT 1 /
Í
16 KHW-M921K-00 BRKT.,SENSOR 1 /
Í
17 KHY-M9211-00 HOUSING,BRG. 1 /
Í
18 KHY-M921M-01 WASHER 1 /
Í
19 KHY-M921P-00 JOINT B 1 /
Í
20 KLF-M653L-10 SENSOR PU1 ORG ASSY 1 A-Table B
Í
21 KLF-M653L-20 SENSOR PU2 ORG ASSY
1 C-Table B
Í
22 KKE-M9218-00 GROMMET 1 /
Í
23 KKE-M9B00-00 BALL SCREW PU 1 /
Í
24 KKT-M921G-00 BRKT.,DOG 1 /
Í
25 KV7-M9205-01 PULLEY 1:P22-3GT 1 /
Í
26 90K65-332625 AC SERVO MOTOR 1 A-Table B
Í
27 90K65-332626 AC SERVO MOTOR 1 C-Table B
Í
28 90440-01J090 CIRCLIP 1
29 90933-01J007 BEARING 2
30 90990-28J076 WASHER 1
31 91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
32 91312-04006 BOLT HEX.SOCKET HEAD 3 M4X6
33 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
34 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
35 91312-04012 BOLT,HEX.SOCKET HEAD 5 M4X12
36 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
37 91312-05012 BOLT HEX.SOCKET HEAD 22 M5X12
38 91312-05014 BOLT HEX.SOCKET HEAD 10 M5X14
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
40 91312-05020 BOLT HEX.SOCKET HEAD 12 M5X20
41 92902-04200 WASHER PLAIN 6
42 92902-05200 WASHER PLAIN 8
43 95602-10100 NUT U 4
44 KKV-M920D-00 PUSH UP PIN UNIT 1 /
45 KMB-M920A-00 PLATE 1(357X400) 1
C-Table (Plate only)
/
Í
46 KMB-M9221-00 DAMPER PU 3 /
Í
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
7
1
Push-UP A / C
Conveyor
