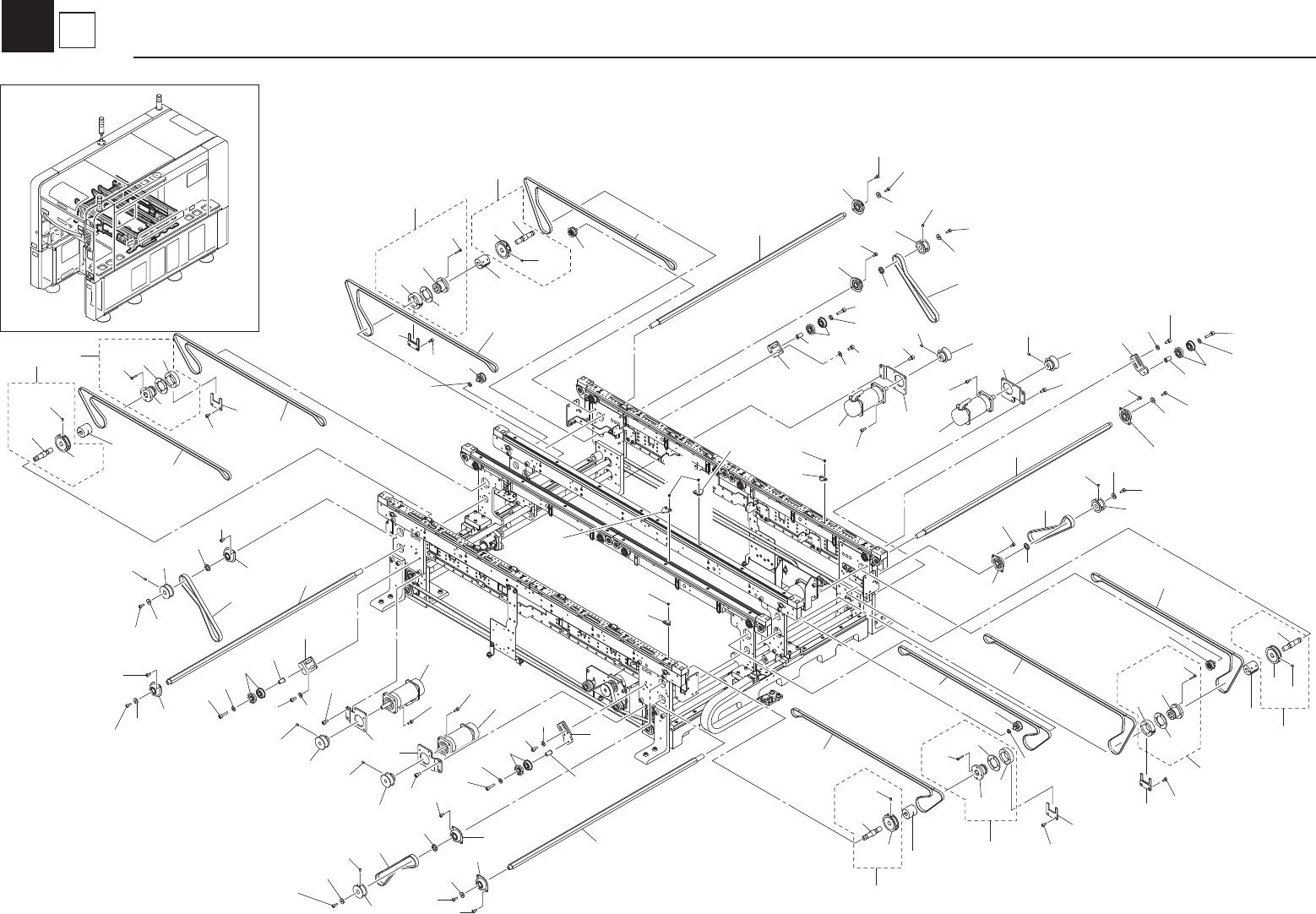

Transport

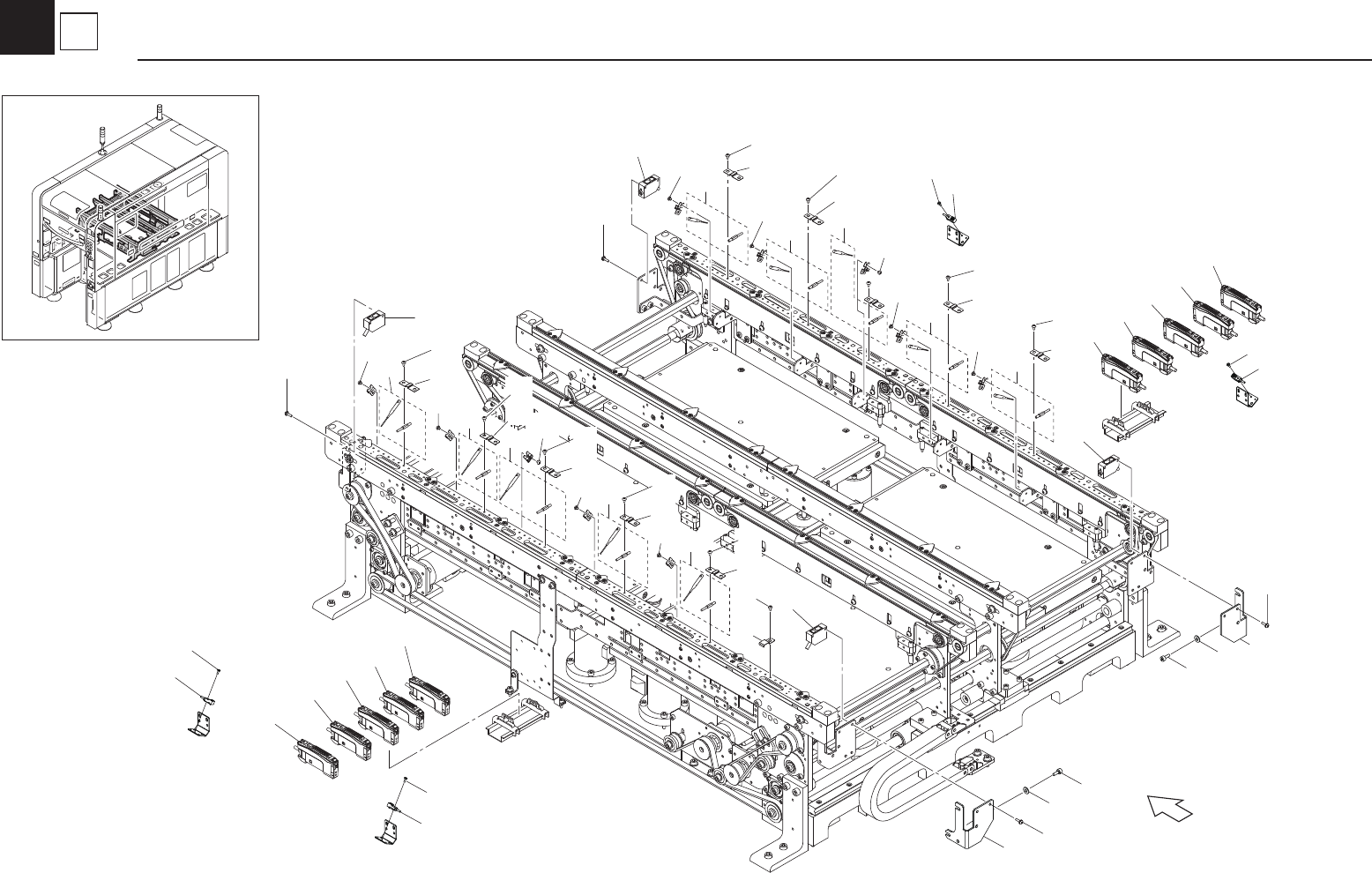

Conveyor
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M9106-00 SPLINE 1 4 /
Í
2 KLF-M9107-00 COUPLING 4 /
Í
3 KLF-M911A-00 BELT,CONVEYOR 1 4 E
4 KLF-M9111-00 STAY,MOTOR 1 1 /
Í
5 KLF-M9111-10 STAY,MOTOR 2 1 /
Í
6 KLF-M9115-00 BELT 387-3GT-9 2 /
Í
7 KLF-M9116-00 BELT 399-3GT-9 2 /
Í
8 KLF-M911B-00 BELT,CONVEYOR 2 4 E
9 KLF-M9118-00 STAY,MOTOR 3 1 /
Í
10 KLF-M9118-10 STAY,MOTOR 4 1 /
Í
11 KLF-M911E-A1 PULLEY,SPLINE ASSY 4
/
Í
12 KLF-M911E-00 PULLEY 2,CONVEYOR 1 /
Í
13 KLF-M911G-00 GUIDE 1,PULLEY 1 /
Í
14 KG2-M9108-11 COLLAR,CONVEYOR 1 /
Í
15 KLF-M911H-A0 PULLEY SUB ASSY. 4 /
Í
16 KLF-M911K-00 SHAFT,DRIVE 1 /
Í
17 KLF-M911H-00 PULLEY 1,CONVEYOR 1 /
Í
18 KLF-M9128-01 SPACER 4
/
Í
19 KLF-M9137-00 BRKT.,TENSIONER 4 /
Í
20 KLF-M9150-A0 PULLEY,CONV. ASSY 4 /
Í
21 KG7-M9111-01 PULLEY 1 4
/
Í
22 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 4 /
Í
23 KH2-M9121-00 BEARING 8 /
Í
24 KHW-M9137-00 COLLAR,BRG. 4 /
Í
25 KKE-M9135-01 PLATE,EDGE 2 16 /
26 KLF-M9135-01 PLATE,EDGE 2 16 /
27 90KC1-011502 AC SERVO MOTOR CV1 1 B
Í
28 90KC1-011503 AC SERVO MOTOR CV2 1 B
Í
29 90KC1-011504 AC SERVO MOTOR CV3 1 B
Í
30 90KC1-011505 AC SERVO MOTOR CV4 1 B
Í
31 90990-25J024 BEARING 8
32 90990-28J016 WASHER,PLAIN 2
33 90990-28J070 WASHER,PLAIN 8
34 90990-28J110 WASHER,PLAIN 4
35 91312-03014 BOLT,HEX.SOCKET HEAD 4 M3X6
36 91312-04008 BOLT HEX.SOCKET HEAD 24 M4X8
37 91312-04010 BOLT HEX.SOCKET HEAD 24 M4X10
38 91312-05010 BOLT HEX.SOCKET HEAD 16 M5X10
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
40 92902-05200 WASHER PLAIN 12
41 92A08-04306 SCREW. SET 12
42 92A08-03304 SET SCREW 2
43 98702-03005 SCREW FLAT HEAD 32
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
7
3
Transport
Conveyor
