Set Up ST on MC
FDR
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level

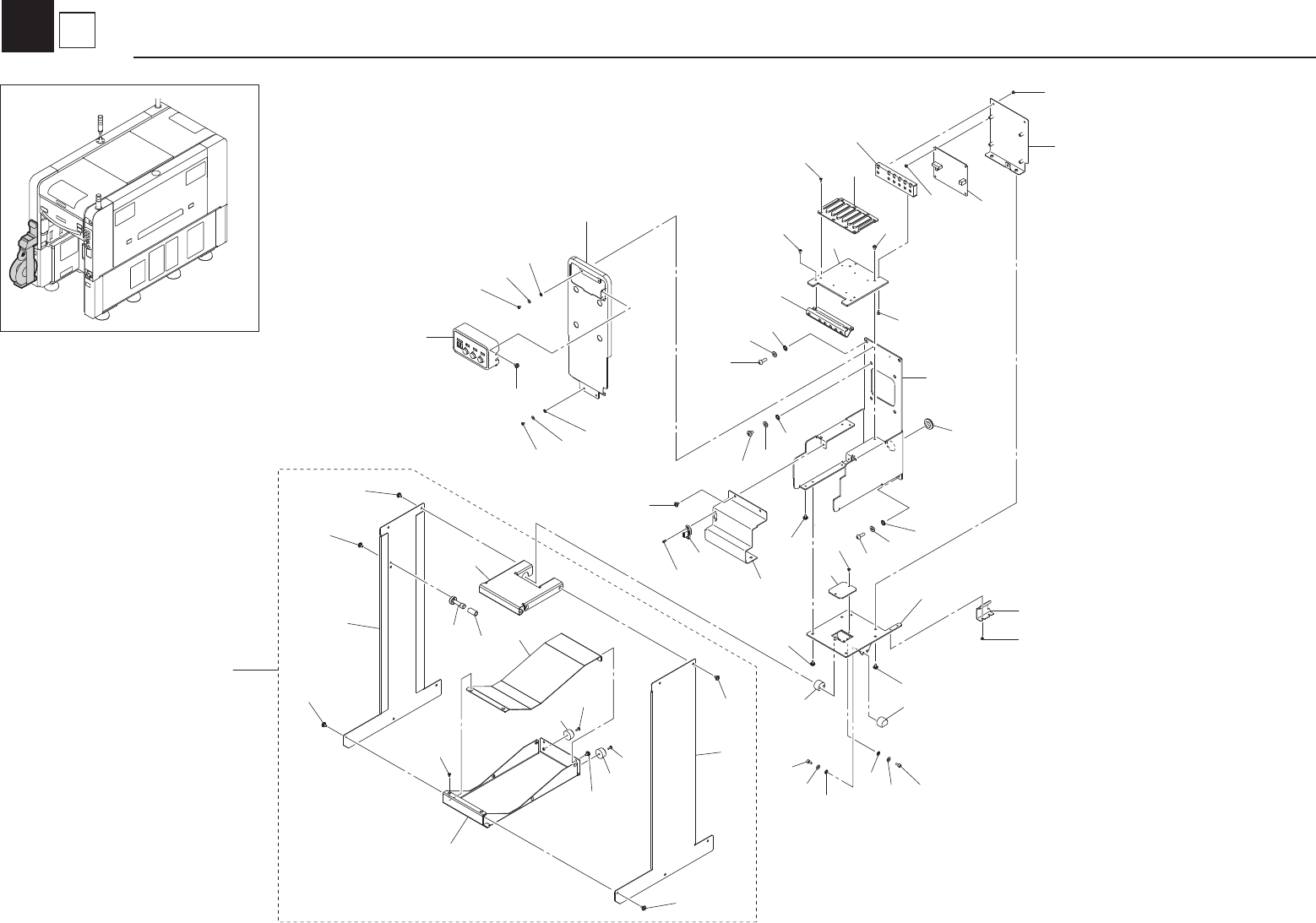

1 KLF-MD101-00 FEEDER PLATE 1 /
Í
2 KLF-MD102-00 COVER,HNS 1 /
Í
3 KLF-MD103-00 COVER,SIDE 1 /
Í
4 KLF-MD104-00 CLAMP PLATE 1 /
Í
5 KLF-MD105-00 FEEDER STOPPER 1 /
Í
6 KLF-MD106-00 CONNECTOR PLATE 1 /
Í
7 KLF-MD107-00 COVER,BACK 1 /
Í
8 KLF-MD108-00 COVER 1 /
Í
9 KLF-MD1B0-00 SWITCH ASSY 1 /
Í
10 KLF-MD111-00 RAIL GUIDE 16P 1 /
11 KLF-MD112-00 PLATE, UNDER COVER 1 /
Í
12 KLF-MD113-00 HUNGER 1 /
Í
13 KLW-MD1C0-00 REELHOLDER EQUIP. 1 /
14 KHY-M372M-00 SCREW,STAD 2 /
Í
15 KHJ-MD115-00 PIN,HUNG R 2 /
16 KHJ-M4484-02 FDR.ST.BOARD ASSY 1 /
Í
17 KLF-M66TE-10 HNS,F.CTRL - FDR. 1 /
Í
18 90172-00J030 WASHER, EXTL.TOOTHED 4
19 90172-00J040 WASHER, EXTL.TOOTHED 4
20 90172-00J060 WASHER, EXTL.TOOTHED 6
21 90990-12J001 SCREW BIN.HEAD W/W 12
22 90990-23J029 GROMMET 1
23 91312-03006 BOLT HEX. SOCKET HEAD 2
M3X6
24 91312-04008 BOLT HEX. SOCKET HEAD 4 M4X8
25 92902-03200 WASHER PLAIN 4
26 92902-04200 WASHER PLAIN 4
27 92902-06200 WASHER PLAIN 6
28 98702-03008 SCREW FLAT HEAD 7
29 98902-03004 SCREW BINDING HEAD 14
30 98902-03008 SCREW BINDING HEAD 2
31 98902-04006 SCREW BINDING HEAD 2
32 98902-06010 SCREW BINDING HEAD 4
33 KLW-MD121-00 SIDE PLATE,L 1
34 KLW-MD122-00 SIDE PLATE,R 1
35 KLW-MD123-00 PLATE,REELHOLDER 1
36 KLW-MD124-00 PLATE,REEL SET LOWER 1
37 KLW-MD125-00 PLATE,REEL SET UPPER 1
38 KLW-MD126-00 SHAFT 1 /
Í
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 KLW-MD127-00 TUBE 1
40 KHJ-MD210-00 FOOT 2 /
41 90990-12J001 SCREW,BIN. HEAD W/W 14 /
Í
42 98780-03006 SCREW FLAT HEAD 2 /
Í
43 98902-03008 SCREW, BINDING HEAD 2 /
Í
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
9
1
Set Up ST on MC
FDR
