YSM40R_KMB_mpl - 第7页

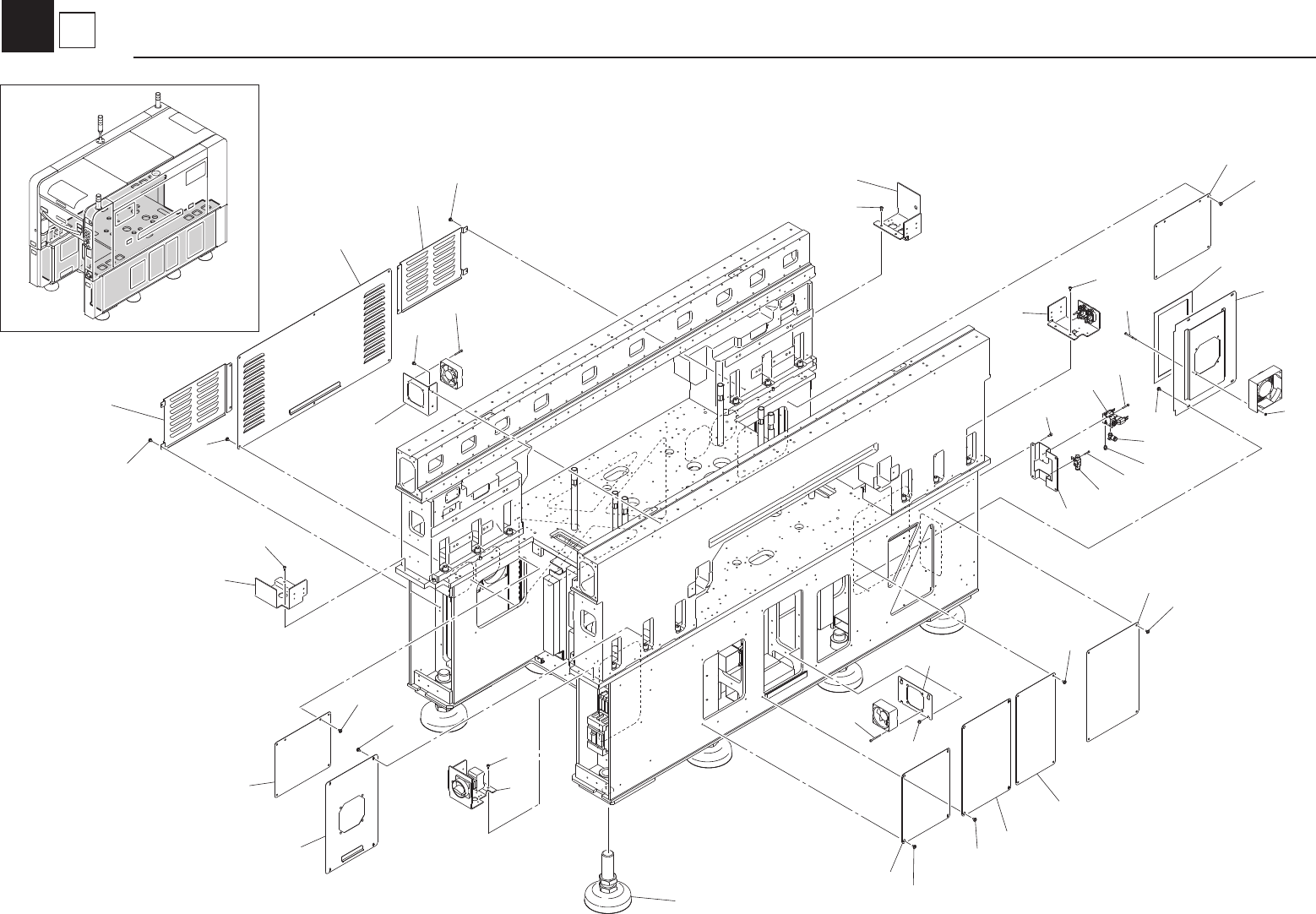

KMB-1712 11 8 33 21 16 17 18 23 30 11 11 4 13 30 20 15 19 22 14 30 25 31 3 5 11 11 1 12 11 11 11 26 31 24 30 7 8 11 11 9 2 10 29 28 27 6 32 11 1 2 Sub Assy Base
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLF-M8501-00 PUMP,VACUUM 2 /
Í
2 KLF-M8536-01 MUFFLER 4 /
Í
3 KLF-M8537-00 JOINT 4 /
Í
4 KLF-M11K3-00 ANTIVIB.RUBBER 8 /
Í
5 KLF-M11K5-00 PLATE,PUMP 1 2 /
Í
6 KLF-M11K6-00 PLATE,PUMP 2 1 /
Í
7 KLF-M11N1-00 BRKT.,PUMP 1 2 /
Í
8 KLF-M11N2-00 PLATE,PUMP 1 /
Í
9 KLF-M11N3-01 PLATE,PUMP 1 /
Í
10 KLF-M11N4-00 SLIDE RAIL 2 /
Í
11 KLF-M11N7-01 PLATE,CONNECTOR 1 /
Í
12 KLF-M11N9-00 STAY,HNS. 1 /
Í
13 KJX-M1105-00 PLATE,HOLD 1 /
Í
14 91312-04005 BOLT,HEX.SOCKET HEAD 4
15 91312-05006 BOLT,HEX.SOCKET HEAD 6
16 91312-05010 BOLT,HEX.SOCKET HEAD 8
17 91312-06010 BOLT,HEX.SOCKET HEAD 4
18 92012-04006 BOLT, BUTTON HEAD 16
19 97602-04308 SCREW,PAN HEAD W/W 2
20 92902-04200 WASHER,PLAIN 2
21 92902-05200 WASHER, PLAIN 14
22 95302-06600 NUT, HEXAGON 8
23 92902-06100 WASHER,SPRING 8
24 $UP10 JOINT 4
25 KLF-M11P4-00 BRKT.,COVER12 1
/
Í
26 90990-12J004 SCREW, BIN. HEAD W/W 7
27 KMB-M91E1-00 PLATE,BASE 1 /
Í
28 97602-05310 SCREW, PAN HEAD W/W 8
29 KLF-M91E5-00 STAY 1 /
Í
30 92902-04200 WASHER,PLAIN 2
31 91312-04005 BOLT,HEX.SOCKET HEAD 6
32 KLF-M1128-00 PLATE 28 1 /
Í
33 90990-11J003 SCREW,PAN HEAD W/W 12
34 KMB-M1111-00 PLATE 11 1
/
Í
35 KLF-M1125-01 PLATE 25 1 /
Í
36 KLW-M8502-01 FILTER ASSY 1 /
Í
37 KLF-M8511-01 EXT.VALVE 1
/
Í
38 KLF-M8512-00 REGULATOR 1 /
Í
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 KLF-M8513-01 PRECISION REGULATOR 1 /
Í
40 KLF-M13D1-00 SEAL,PRESSURE GAUGE 2 /
Í
41 91312-04006 BOLT,HEX.SOCKET HEAD 8
42 91312-06010 BOLT,HEX.SOCKET HEAD 2
43 92902-06200 WASHER,PLAIN 2
44 $UYD10-8 JOINT 2
45 $AUY10 JOINT 1
46 KHY-M11B0-00 AIR TAG 1 /
Í
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
1
1
Base
Base
KMB-1712
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KMB-M1151-00 PLATE,SIDE 1 1 /
Í
2 KLF-M1152-00 PLATE,SIDE 2 1 /
Í
3 KLF-M1153-00 PLATE,SIDE 3 1 /
Í
4 KLF-M1154-00 PLATE,SIDE 4 1 /
Í
5 KMB-M1155-00 PLATE,SIDE 5 1 /
Í
6 KMB-M1156-00 PLATE,SIDE 6 1 /
Í
7 KMB-M1157-00 PLATE,SIDE 7 1 /
Í
8 KLF-M1159-00 PLATE,SIDE 9 2 /
Í
9 KMB-M1164-00 COVER,FAN 1 1 /
Í
10 KMB-M1165-00 COVER,FAN 2 1 /
Í
11 90990-12J004 SCREW, BIN. HEAD W/W 46 /
Í
12 KLW-M1180-00 LEVELING BOLT ASSY. 8 /
13 KLF-M1339-00 BRKT.,FL 1 /
Í
14 KLF-M1338-00 BRKT.MAIN SWITCH 1 /
Í
15 KMB-M1113-00 PLATE 13 1 /
Í
16 KMB-M653Y-01 VALVE ASSY 1 B
Í
17 $SL8-01 JOINT 1
18 $KM-10 MUFFLER 1
19 $FVU8-8 JOINT 1
20 91312-05010 BOLT,HEX.SOCKET HEAD 4
21 91312-04025 BOLT,HEX.SOCKET HEAD 2
22 91312-03020 BOLT,HEX.SOCKET HEAD 2
23 KLF-M1337-00 BRACKET 1 /
Í
24 KLF-M1337-51 BRACKET 1 /
Í
25 KMB-M11P7-00 PLATE,FAN R 1 /
Í
26 KMB-M11P8-00 PLATE,FAN L 1 /
Í
27 KLF-M115J-00 FILTER,CP FAN 1 E
28 91312-04030 BOLT HEX,SOCKET HEAD 4
29 91312-04045 BOLT,HEX.SOCKET HEAD 16
30 91312-05010 BOLT,HEX.SOCKET HEAD 28
31 97602-05310 SCREW, PAN HEAD W/W 57
32 95302-04600 NUT,HEXAGON 4
33 98502-04050 SCREW PAN HEAD (+) 4
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
1
2
Sub Assy
Base
