Head Reconfiguration Kit 2 Assembly Instructions Head Reconfiguration Kit CPP for the SIPLACE X Series

Issue 03/2010 2.8 Removing the Placement Head

115

2.8.3 Removing the CPP Placement Head

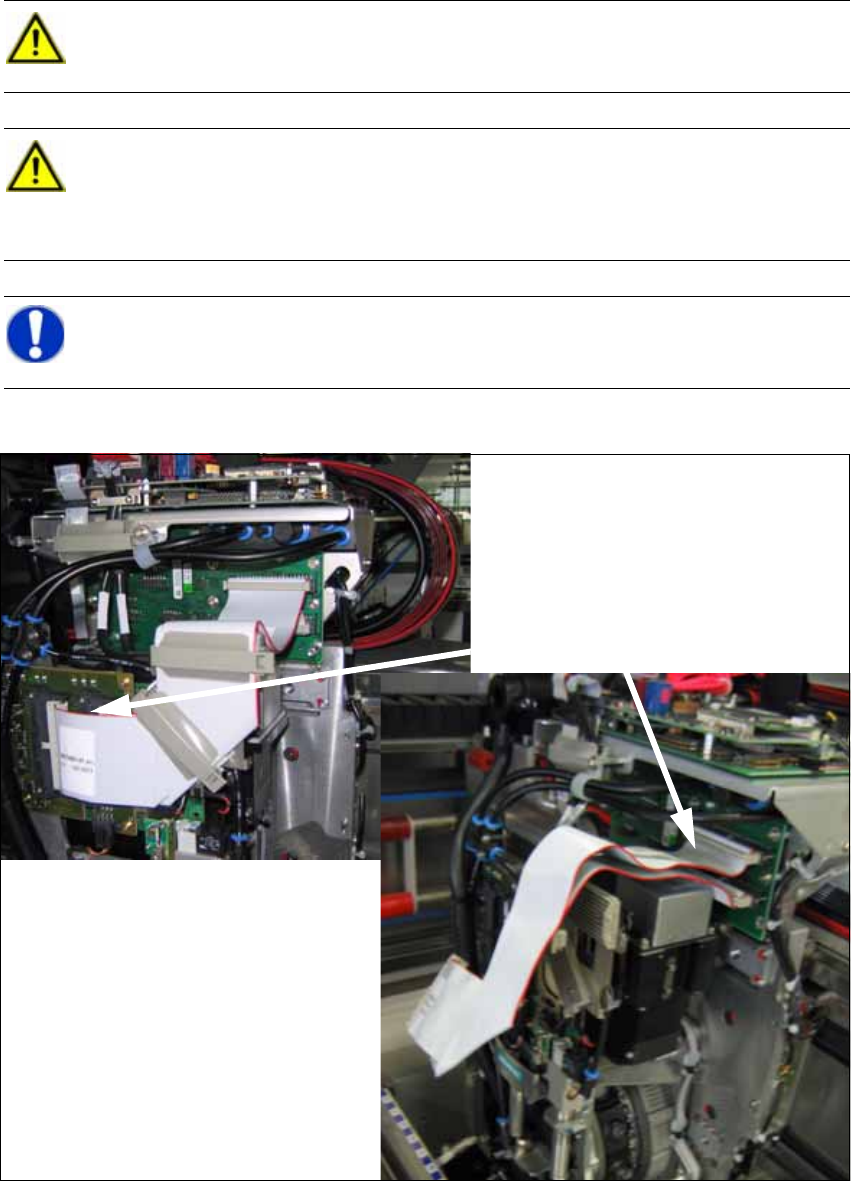

X Disconnect the two flat ribbon cables.

CAUTION:

Wear an ESD wrist strap during the whole work on the placement head and the servos!2

CAUTION:

Remove the axis and servo cards.

For this purpose, observe the overviews in the annex in Chapter 2.9.1 Configuration Axis

Unit A364. 2

NOTE:

The reconfiguration can most conveniently be performed via locations 2 and 4. 2

Disconnecting the flat ribbon cables

2 Assembly Instructions Head Reconfiguration Kit CPP for the SIPLACE X Series Head Reconfiguration Kit

2.8 Removing the Placement Head Issue 03/2010

116

X Disconnect all pressured air hoses.

Disconnecting the pressured air hoses

Head Reconfiguration Kit 2 Assembly Instructions Head Reconfiguration Kit CPP for the SIPLACE X Series

Issue 03/2010 2.8 Removing the Placement Head

117

X Open the clips and disconnect the component camera plugs.

Opening the

clips

Disconnecting the plugs
