Head Reconfiguration Kit 2 Assembly Instructions Head Reconfiguration Kit CPP fo r the SIPLACE X Ser ies Issue 03/2010 2.7 Installing the CPP Placement H ead 93 2 CAUTION: The place ment head can be installed at two diff…

2 Assembly Instructions Head Reconfiguration Kit CPP for the SIPLACE X Series Head Reconfiguration Kit

2.7 Installing the CPP Placement Head Issue 03/2010

2.7.4.2 Preparing the Head for the Installation Height

X Prepare the head for its required installation height. The four bushings and the retaining

bracket must be fixed in their correct top or bottom position.

Should it be necessary to replace the bushings, loosen the fixing screws of the bushings and

place the bushing at its correct position (top or bottom). Carry out this step for all four fixing

bushings and the holding bracket of the head.

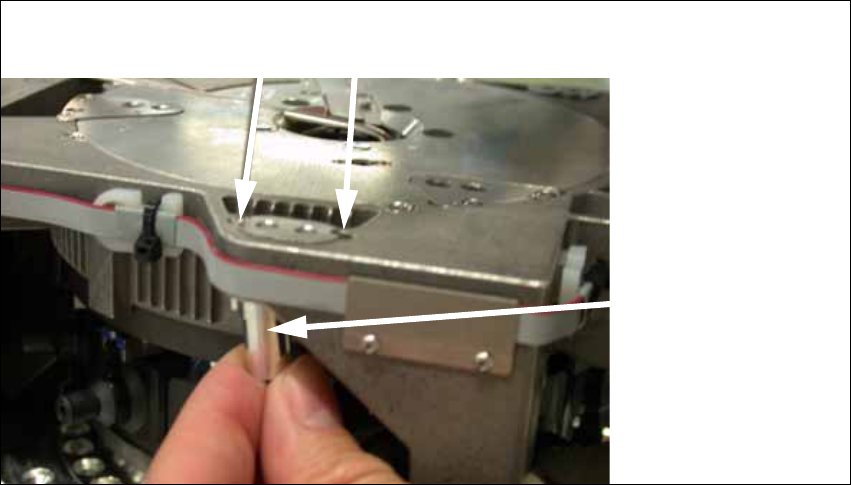

Holes for the fixing screws of the bushings 2

bushing 2

top 2

bottom2

Head Reconfiguration Kit 2 Assembly Instructions Head Reconfiguration Kit CPP for the SIPLACE X Series

Issue 03/2010 2.7 Installing the CPP Placement Head

CAUTION:

The placement head can be installed at two different heights. CPP_L corresponds to a

component height of 6 mm. CPP_H corresponds to a height of 11.5 mm.

If the CPP head is used in a placement area with a stationary camera, a TwinHead or an

MTC, it must be installed in the high position only. 2

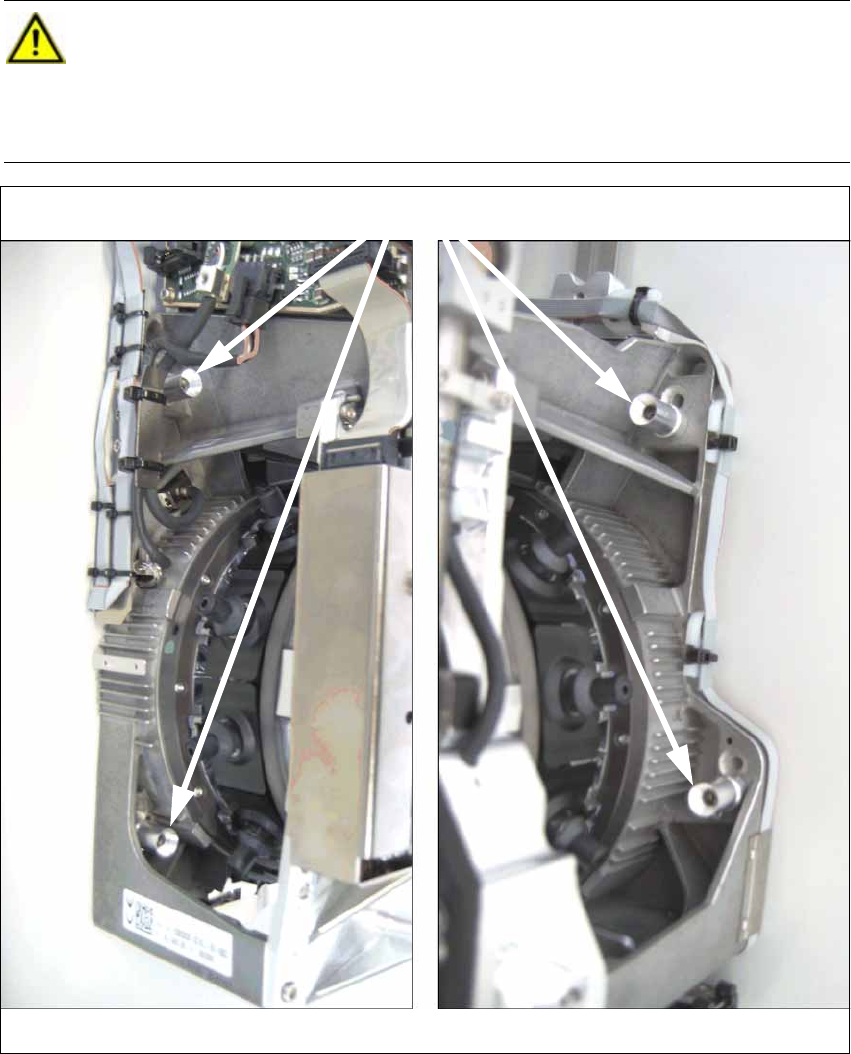

Head screws (here in "head high" position)

on the left on the right

2 Assembly Instructions Head Reconfiguration Kit CPP for the SIPLACE X Series Head Reconfiguration Kit

2.7 Installing the CPP Placement Head Issue 03/2010

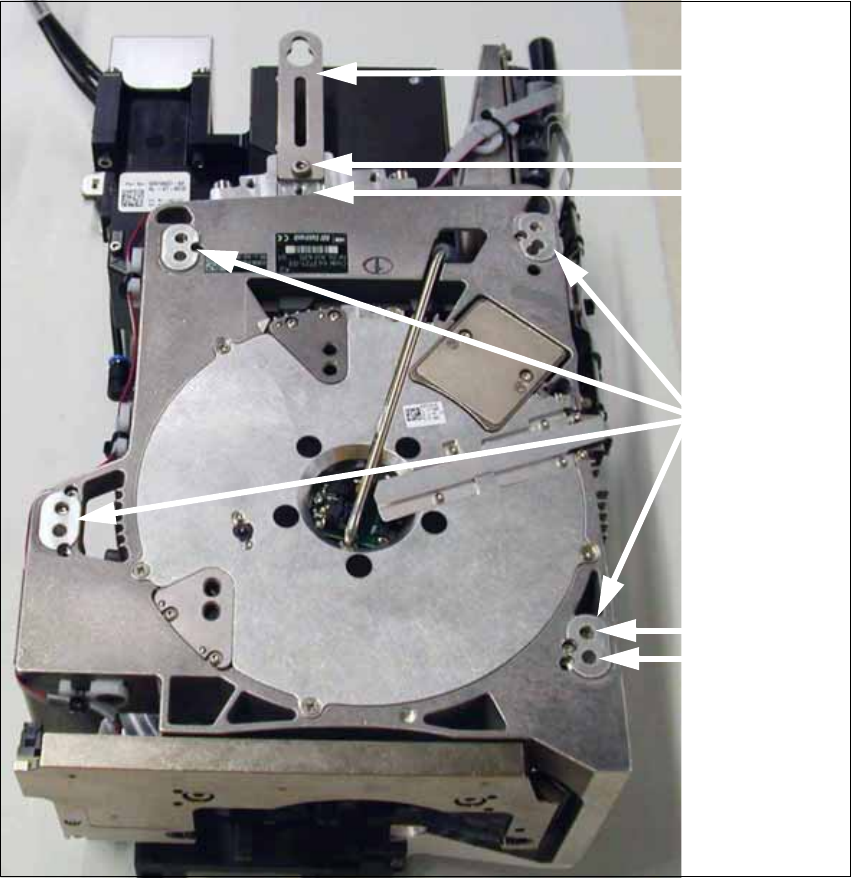

Head low

Head high

Fixing holes with

bushings

Retaining

bracket

Head low

Head high
