MODEL TPM-100F/R 0102-001 8 テーブル部 TABLE SECTION Fig. B-1 テーブルベース上中部 Table Base Upper/Middle Section 65 66 64 68 7 68 67 74 3 64 66 65 1 11 68 64 66 65 65 1 11 9 2 69 12 15 5 4 61 6 6 70 67 11 1 64 66 65 14 65 66 64 10 11…
MODEL TPM-100F/R
0102-001
7

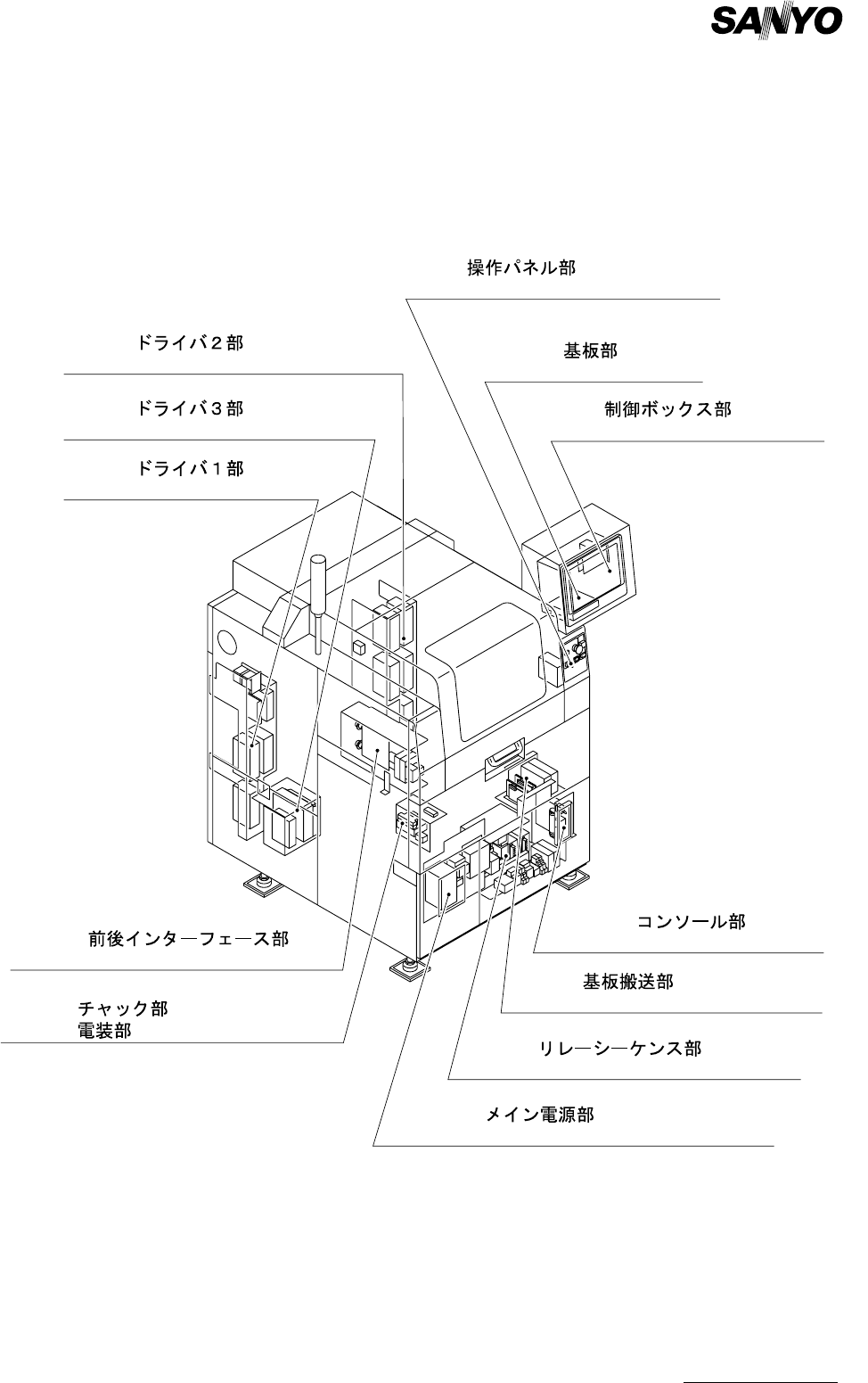

全体図－ 2 UNIT LAYOUT -2
UNIT LAYOUT-2
Fig. BD
RERAY SEQUENCE SECTION
Fig. FG
CONSOLE SECTION
Fig. C
CONTROL BOX SECTION
Fig. T
P.C.B. SECTION
Fig. D
OPEATION PANEL SECTION
Fig. HH
P.C.B TRANSFER SECTION
Fig. BA
MAIN POWER SUPPLY SECTION
CHUCK SECTION
Fig. E-7
Electrical Parts
Fig. FH
PREVIOS/NEXT INTERFACE
Fig. BE
DRIVER 1 SECTION
Fig. BG
DRIVER 3 SECTION
Fig. BF
DRIVER 2 SECTION
-2
TPM-100
MODEL TPM-100F/R
0102-001
8
テーブル部 TABLE SECTION
Fig. B-1 テーブルベース上中部 Table Base Upper/Middle Section
65
66
64
68
7
68
67
74
3
64
66
65
1
11
68
64
66
65
65
1
11
9
2
69
12
15
5
4
61
6
6
70
67
11
1
64
66
65
14
65
66
64
10
11
1
64
66
65
65
66
64
8
8
14
71
66
64
14
14
67
Fig.B-1
TPM-100F/R
3
75
75
76
70
69
75
75
61
4
6
13
65
66
64
61
See Fig.K-1
Key No.4
MODEL TPM-100F/R
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
9
1 630 007 2501 CAM FOLLOWER 4 748B--110-001
2 630 088 3848 HOOK 1 748B--110-002
3 630 088 3961 BUSH,BALL 3 748B--110-003
4 630 088 3626 SENSOR,PHOTO 8 BPH055-057,171,173,191-193
748B--110-004
5 630 088 3602 SENSOR,PHOTO 1 BPH172 748B--110-005
6 630 088 4487 CONNECTOR 9 748B--110-006
7 630 087 9056 PLATE 1 748B--110-007
8 630 087 9063 PLATE 2 748B--110-008
9 630 090 7735 CAM BASE 1 748B--110-009
10 630 087 9421 SHAFT,LINEAR 1 748B--110-010
11 630 087 9452 BLOCK 4 748B--110-011
12 630 087 9476 BRACKET 1 748B--110-012
13 630 087 9483 PLATE 5 748B--110-013
14 630 087 9513 COVER 4 748B--110-014
15 630 091 0025 PLATE 4 748B--110-015
61 411 040 6202 SCR PAN 3X10 18 748B--110-061
64 630 000 7626 BOLT,HEX-SCT 18 748B--110-064
65 411 141 4008 WASHER V 4X9X0.8 18 748B--110-065
66 411 141 2905 WASHER SPR 4 18 748B--110-066
67 630 000 7749 BOLT,HEX-SCT 14 748B--110-067
68 630 000 7763 BOLT,HEX-SCT 18 748B--110-068
69 411 141 4107 WASHER V 5X10X1 4 748B--110-069
70 411 141 6705 WASHER SPR 5 4 748B--110-070
71 630 000 7770 BOLT,HEX-SCT 2 748B--110-071
74 411 141 1809 NUT HEX 14 1 748B--110-074
75 411 108 8704 NUT HEX 8 4 748B--110-075
76 411 141 0505 NUT HEX 5 1 748B--110-076
B-1
