MODEL TPM-100F/R 0102-001 140 カバー部 COVER SECTION Fig. R-4 カバー 2 Cover-2 See Fig.R-3 Key No.215 See Fig.R-3 Key No.216 See Fig.K-1 Key No.4 See Fig.R-3 Key No.222 See Fig.K-5 Key No.401 See Fig.K-5 Key No.402 306 361 362 …
MEMO
139
MODEL TPM-100F/R
0102-001
140
カバー部 COVER SECTION

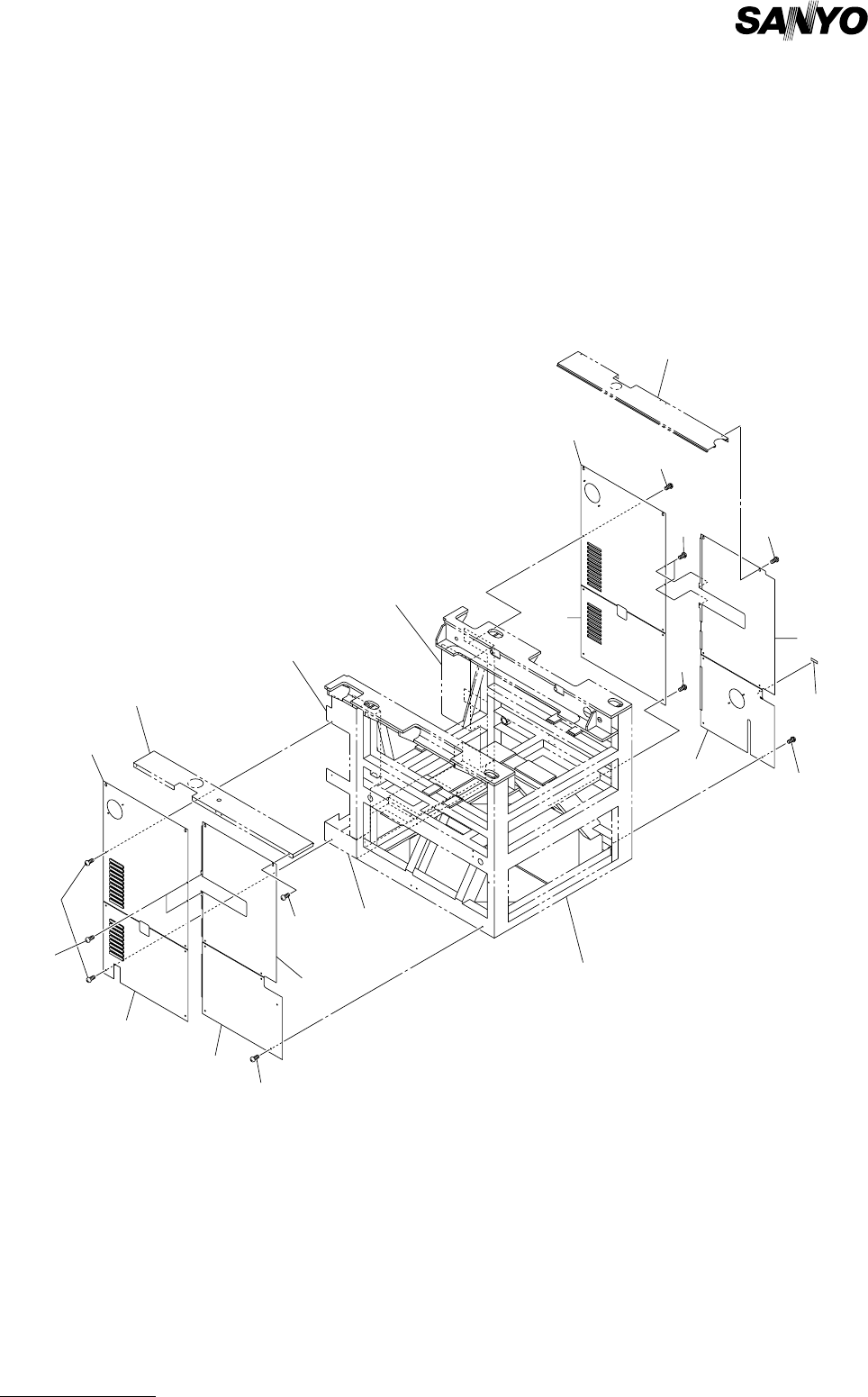

Fig. R-4 カバー 2 Cover-2
See Fig.R-3
Key No.215
See Fig.R-3
Key No.216
See Fig.K-1
Key No.4
See Fig.R-3
Key No.222
See Fig.K-5
Key No.401
See Fig.K-5
Key No.402
306
361
362
302
301
361
361
361
307
303
361
304
308
361
362
361
305
Fig.R-4
TPM-100F/R
309
MODEL TPM-100F/R
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
141
R-4
301 630 090 8992 COVER 1 748R--110-301
302 630 090 9005 COVER 1 748R--110-302
303 630 090 9012 COVER 1 748R--110-303
304 630 090 9029 COVER 1 748R--110-304
305 630 090 9067 COVER 1 748R--110-305
306 630 090 9074 COVER 1 748R--110-306
307 630 090 9081 COVER 1 748R--110-307
308 630 090 9098 COVER 1 748R--110-308
309 630 091 1855 NAME PLATE,INDEX 1 748R--110-309
361 411 140 8007 SCR TRS 5X6 33 748R--110-361
362 411 051 1708 SCR TRS 4X6 4 748R--110-362
