MODEL TPM-100F/R 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 143 BA-1 1 630 089 2772 BREAKER 1 Q200 748BA-1 10-001 2 630 083 5441 HANDLE 1 748BA-1 10-002 3 630 083 5434 COVER 1 748BA-1 10-003 4 630 091 256…
MODEL TPM-100F/R
0102-001
142
See Fig.K-4
Key No.307
See Fig.K-4
Key No.301
9
10
7
63
62
6
66
65
64
61
8
63
62
61
5
11
4
63
62
61
Fig.BA-1
TPM-100F/R
63
62
61
63
62
61
69
68
67
69
68
67
63
62
61
3
3
1
2
12

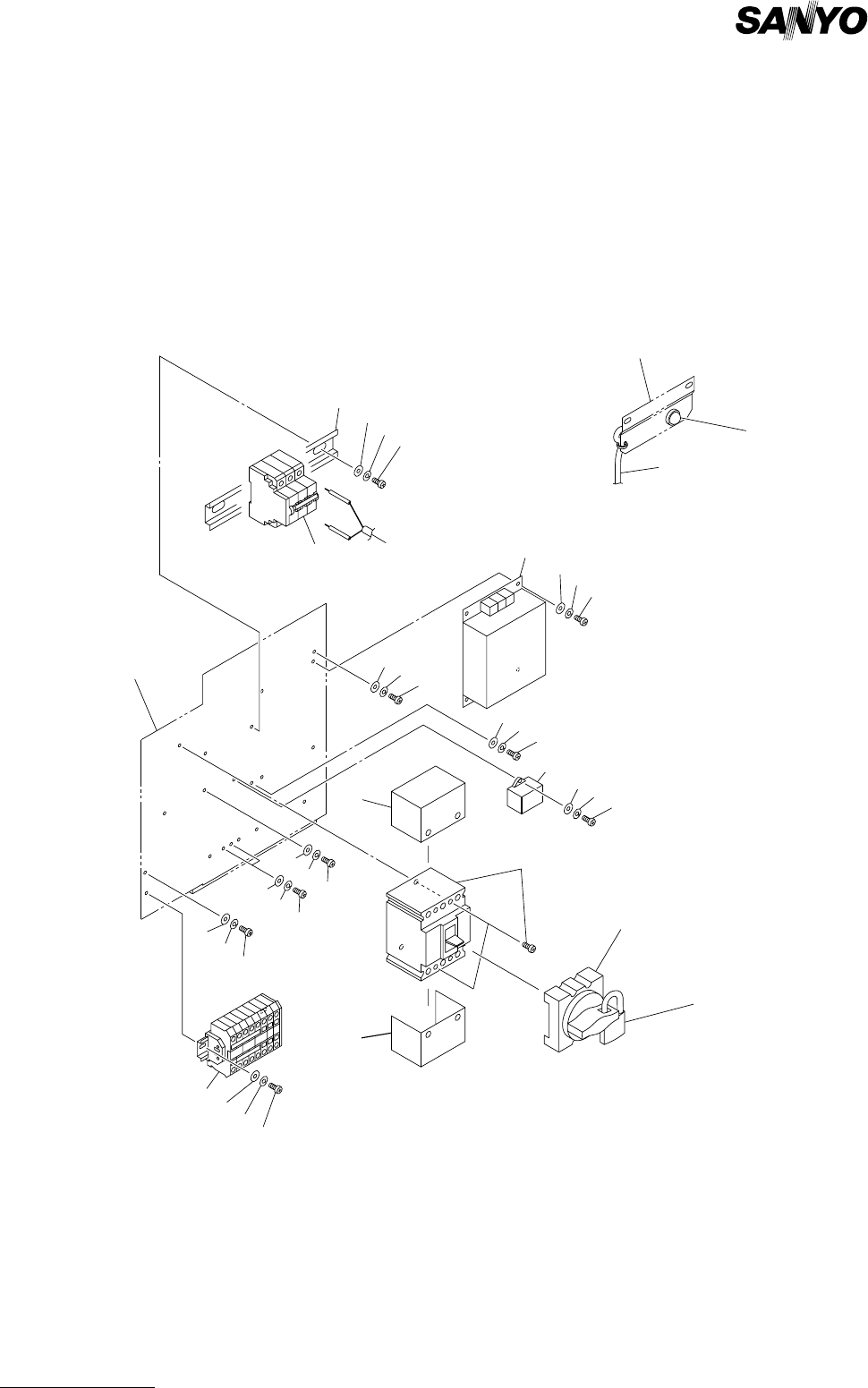

メイン電源部 MAIN POWER SUPPLY SECTION
Fig. BA-1 メイン電源 Main Power Supply
MODEL TPM-100F/R
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
143
BA-1
1 630 089 2772 BREAKER 1 Q200 748BA-110-001
2 630 083 5441 HANDLE 1 748BA-110-002
3 630 083 5434 COVER 1 748BA-110-003
4 630 091 2562 TERMINAL 1 X000 748BA-110-004
5 630 089 2710 CIRCUIT PROTECTOR 1 Q201 748BA-110-005
6 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 FV001 748BA-110-006
7 630 089 2666 FILTER,NOISE 1 Z001 748BA-110-007
8 630 091 1688 ACCESSORY,WIRING 1 748BA-110-008
9 630 067 3562 PILOT LAMP 1 HPL-001 748BA-110-009
10 630 088 5583 CORD 1 748BA-110-010
11 630 088 5590 CORD 1 XNC026- 748BA-110-011
12 630 053 4917 MECH PARTS (PADLOCK) 1 748BA-110-012
61 411 113 1400 SCR PAN 4X6 12 748BA-110-061
62 411 008 1706 WASHER SPR 4 12 748BA-110-062
63 411 119 2104 WASHER V 4X9X0.8 12 748BA-110-063
64 411 043 5004 SCR PAN 4X8 1 748BA-110-064
65 411 008 1706 WASHER SPR 4 1 748BA-110-065
66 411 119 2104 WASHER V 4X9X0.8 1 748BA-110-066
67 411 113 2803 SCR PAN 5X8 2 748BA-110-067
68 411 008 2109 WASHER SPR 5 2 748BA-110-068
69 411 088 1702 WASHER V 5X10X1 2 748BA-110-069
MODEL TPM-100F/R
0102-001
144
リレーシーケンス部 RELAY SEQUENCE SECTION
Fig. BD-1 リレーシーケンス Relay Sequence
See Fig.K-4
Key No.306
See Fig.K-4
Key No.308
30
39
15
14
72
71
70
68
67
69
41
20
68
67
69
66
65
64
21
18 19
35
2
36
34
26
3
65
64
66
61
62
63
45
43
42
44
73
29
26
37
5
A
4
1
31
66
65
64
65
66
40
A
7
25
24
.
23
27
10
9
8
13
12
11
6
28
33
22
.
25
24
.
23
22
.
64
32
66
65
64
.
38
66
17
16
17
65
64
66
30
65
64
Fig.BD-1
TPM-100F/R
65
64
66
65
64
66
