KEY FEATURES AND BENEFITS Techcon Systems pressure tanks are desig ned to accommodate fluids that are supplied in bottle/container form. Constant air pressure forces the fluid from the bottle through pre-installed tubing…
KEY FEATURES AND BENEFITS
Techcon Systems pressure tanks are designed to
accommodate fluids that are supplied in bottle/container form.
Constant air pressure forces the fluid from the bottle through
pre-installed tubing to the point of dispense. Black fluid tubing is
available for UV applications. Compression fittings are located
at the center of the lid, of the pressure tanks, to ensure a
continuous fluid path to the dispensing valve. Air-tight seals
ensure there are no leak points or air entrapment problems and
that fluid touches nothing but tubing from the pressure tank to
the dispensing valve. Disposable polyethylene fluid lines can be
changed quickly and easily.

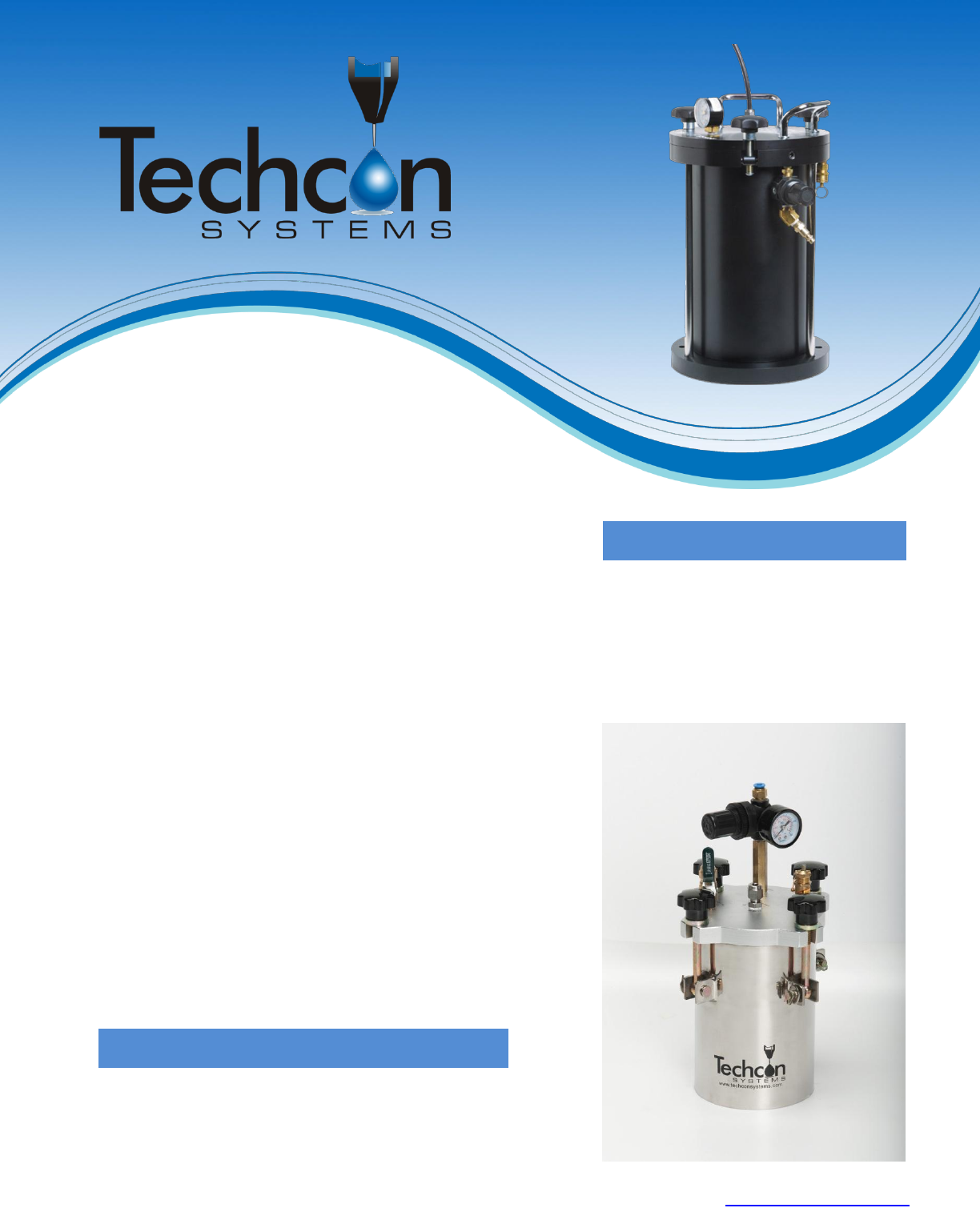

The medium size TS1254 pressure tank features all of the
benefits found on the TS1258 pressure tank but in a compact
bench top size.
Both pressure tanks can accommodate low to medium fluids,
including solvents, adhesives, as well as Cyanoacrylates (CA).
Equipped with a pressure relief (safety) valve, the pressure
tanks provide safe and secure dispensing for all applications.
Product Data Sheet
TS1250 Series
Pressure Tanks
Pressure relief valve prevents over
pressurizing
Clear and black fluid tubing
All connections mounted on the lids
2L and 5L capacities
Optional tubing sizes available
TYPICAL APPLICATIONS
Supplying a diaphragm valve with CA adhesive
Supplying a 4-way manifold for multiple valve dispensing
Supplying a spray valve with conformal coating
USA & Canada +1 714 230 2398 Europe +44 2380 489 100 Asia +86 21 64952662 www.techconsystems.com
The pressure tanks are shipped with the following items:
Air pressure regulator (attached)
Air hose
Fluid tubing
TYPICAL SETUP
WHAT’S IN THE BOX?
LOCAL DISPENSING SOLUTIONS WORLDWIDE
Manifold: The pressure tanks can feed Techcon Systems
TS918-46 4-Way manifold, for supplying fluids to multiple
dispensing valves.
Tubing Kits: Tubing kits are made available for ease of
connection. Tubing kits include the compression fitting, fluid
tubing and top/bottom ferrules. Visit www.techconsystems.com
for more information.
SPECIFICATIONS & PART NUMBERS
ACCESSORIES

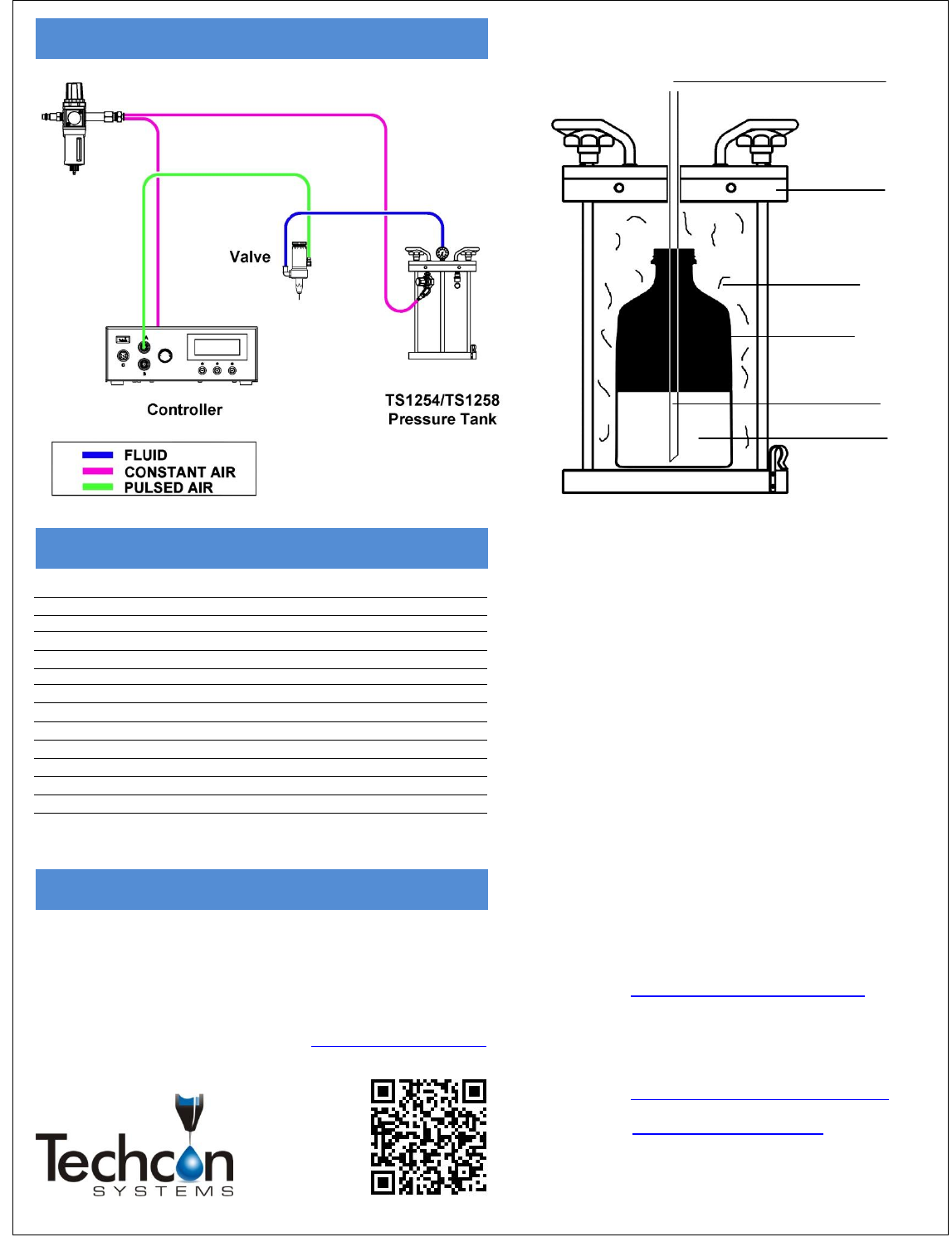

TYPICAL SETUP & PRINCIPLE
For Sales and Support:
Techcon Systems Corporate Headquarters,
12151 Monarch Street, Garden Grove,
California, 92841, USA.
Tel: 1-714-230-2398, Fax: 1-714-230-2393
E-mail: oemorders@okinternational.com
Techcon Systems European Corporate Office,
Eagle Close, Chandler’s Ford Industrial Estate,
Eastleigh, Hampshire, SO53 4NF, UK.
Tel: +44 2380 489 100, Fax: +44 2380 489 109
E-mail: europe-orders@okinternational.com
Or visit www.techconsystems.com
Version 2.00
Part Number:
TS1254
TS1258
Size (Imperial):
12.5'' Length x 5.0''
15.0'' Length x 11.0''
Size (Metric):
318mm x 127mm
381mm x 279mm
Weight:
10.4 lb (4.7kg)
21 lb (9.5kg)
Chamber (Imperial):
6.5'' x 4.75''
11.0'' x 6.0''
Chamber (Metric):
165mm x 121mm
279.4mm x 152mm
Chamber Capacity
1.8L
5L
Operating Pressure:
70 psi (4.8bar) Max
100 psi (6.9bar) Max
Standard Tube Size:
6mm
¼''
Optional Tube Size:
4mm
⅜'' and 4mm
Fitted Lid O-Ring:
Silicone
Viton®
Optional Lid O-Ring:
Viton®
EPR
Viscosity Range:
1 - 25 000cps
1 - 50 000cps
Permanent
Pressure
Pressure
Tank
Fluid
Tubing
Fluid
Fluid Bottle
Fluid
Output
Available Fluid Line Kits (Polyethylene Tubing)
For TS1254
TS1252-4MM 4mm O.D tube (TS1201/TS1212 connection)
1254-250PE 6mm O.D tube
For TS1258
TS1252-4MM 4mm O.D tube (TS1201/TS1212 connection)
TS1258-250 ¼'' O.D tube
TS1258-375 ⅜'' O.D tube
Available Fluid Lines (Polyethylene Tubing)
TSD1099-22 ⅜'' O.D x ¼'' I.D, Black
TSD1099-23 ⅜'' O.D x ¼'' I.D, Clear
TSD1099-24 ¼'' O.D x ⅛'', Clear
TSD1099-25 ¼'' O.D x ⅛'', Black
TSD1099-45 6mm O.D x 4mm I.D, Clear
TSD1099-46 6mm O.D x 4mm I.D, Black
