4 Page 3 SERIAL PLA TE The serial plate attached to this machine indicates the model name and production number. 4Q4C-E-IMA00-A03-05 CM201-DU CM202-DU CM201-902E Actual numbers are shown on the plate instead of ∗. CM201-…
Page 2
SAFETY PRECAUTIONS
Be sure to observe
4Q4C-E-IMA00-A03-00
POWER AND AIR
SOURCES SHOULD
BE CONNECTED AT
THE LAST OF IN-
STALLING OPERA-
TION.
If they are connected earlier,
you may get an electric shock
or injured.
M92E
WARNING
FIRMLY INSERT THE
POWER AND OTHER
PLUGS.
Imperfect plugging in may
cause fire because of electric
shock and generated heat.
Do not use the damaged
plug or loose outlet.
M87E
USE THE SPECIAL-
IZED OUTLET AND
BREAKER EXCLU-
SIVELY.
If the breaker is shared be-
tween machines, it may cause
fire because of generated heat.
Check the dissipation
power in your Standard
Specification before consult-
ing an electrical contractor.
M89EB
M06E
GROUND THE MA-
CHINE PROPERLY.
There is a risk of an electric
shock or leak.
Consult a professional
electrical contractor.
PERIODICALLY REMOVE DUST
FROM POWER PLUG.
Dust on the plug may result in fire caused by
defective insulation because of moisture.
Pull out the power plug and wipe off dirt with
dry cloth.
If the machine is not going to be used for a
long period, turn off the breaker connected with
the machine.
M86E
DO NOT DAMAGE POWER AND
OTHER CORDS OR PLUGS.
Damaged cord and plug may cause electric shock,
short circuit or fire.
Hold the plug when plugging in or unplug-
ging.
Cord and plug repairs should be attempted
only by the person competent to do the electrical
work, or contact the manufacturer.
M85E
Never damage, remake, bring
close to heating appliances, bend
forcibly, twist, pull, put heavy
objects on, and bundle up.
M88EB
DO NOT INSERT OR
REMOVE POWER AND
OTHER PLUGS BY
WET HAND.
If plugged in or unplugged by
wet hand, it may result in
electric shock.
4
Page 3

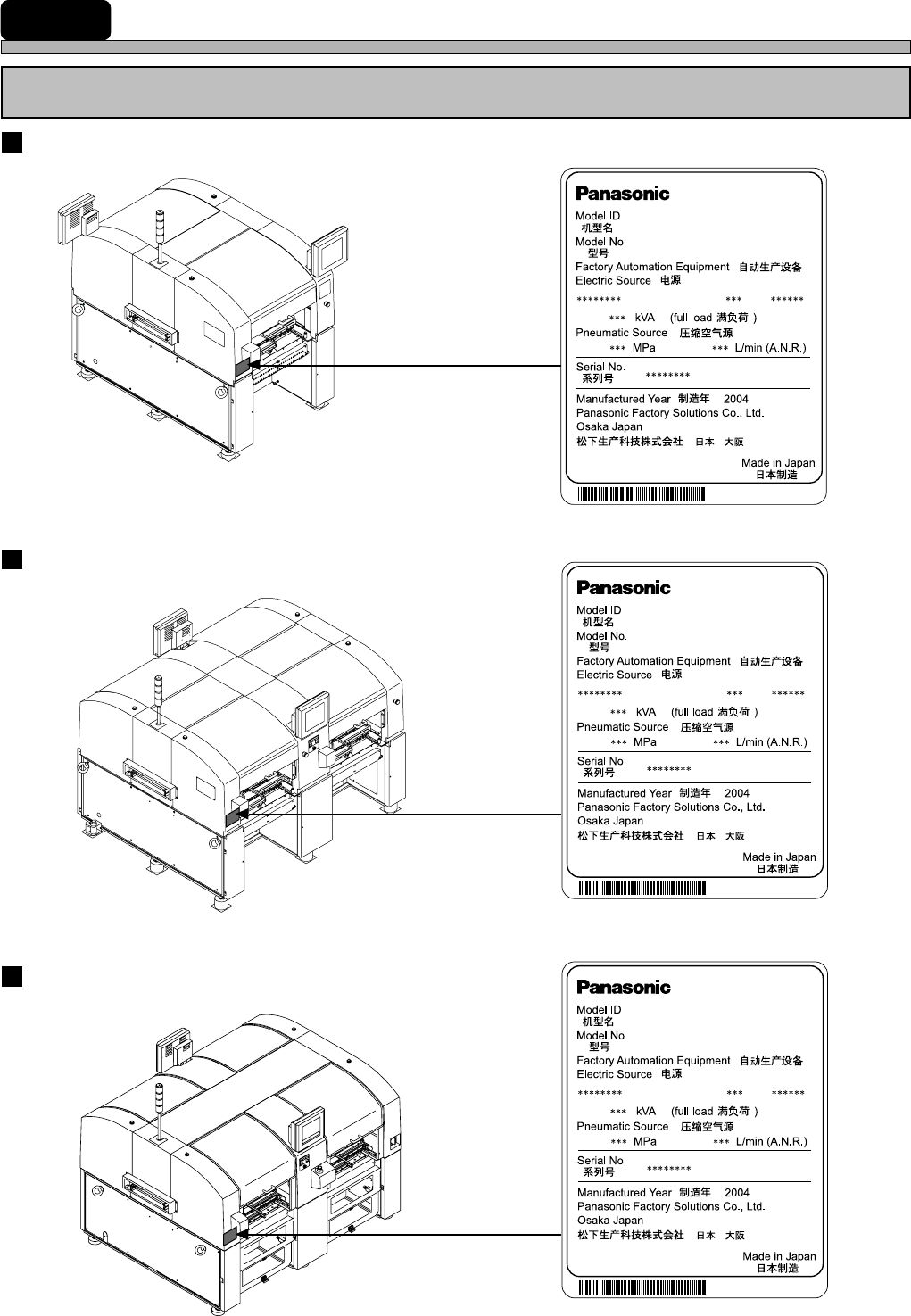

SERIAL PLATE
The serial plate attached to this machine indicates the model name and production number.
4Q4C-E-IMA00-A03-05
CM201-DU
CM202-DU
CM201-902E
Actual numbers are shown on the plate instead of ∗.
CM201-DU
KXF-4R4C
This is attached to the left on the rear side of machine.
4Q4C-902E
CM202-DHU
4U4C-902EU
Actual numbers are shown on the plate instead of ∗.
CM202-DU
KXF-4Q4C
Actual numbers are shown on the plate instead of ∗.
CM202-DHU
KXF-D24C
Page 4
4Q4C-E-IMA00-A03-01
ILLUSTRATION IN MANUAL
NOTICE
This manual is created for CM201-DU, CM202-DU andCM202-DHU. Therefore, it
mainly uses the illustrations of CM202-DHU for descriptions.
Features
It has two sets of mounting stage.
• It mounts two boards at the same time.
• Up to 104 feeders can be set.
CM201-DU External view
CM202-DU External view
Front view
Rear view
Features
It has a set of mounting stage.
• It mounts boards one by one.
• Up to 52 feeders can be set.
444C-101E
Front view
Rear view
444C-102E
CM201-901E
CM201-902E
4Q4C-901E
4Q4C-902E
Features
It has two sets of mounting stage.
• It mounts two boards at the same time.
• Up to 104 feeders can be set.
CM202-DHU External view
Front view
Rear view
444C-102E
4U4C-901EU
4U4C-902EU
NOTICE
It is dangerous to operate the DU and the DHU while the feeder base cover and the
conveyor cover are removed.
Be sure to set the feeder base cover and the conveyor cover during operation.
