Page 4 4Q4C-E-IMA00-A03-01 ILLUSTRA TION IN MANUAL NOTICE This manual is created for CM201-DU, CM202-DU andCM202-DHU. Therefore, it mainly uses the illustrations of CM202-DHU for descriptions. Features It has two sets of…
4
Page 3
SERIAL PLATE
The serial plate attached to this machine indicates the model name and production number.
4Q4C-E-IMA00-A03-05
CM201-DU
CM202-DU
CM201-902E
Actual numbers are shown on the plate instead of ∗.
CM201-DU
KXF-4R4C
This is attached to the left on the rear side of machine.
4Q4C-902E
CM202-DHU
4U4C-902EU
Actual numbers are shown on the plate instead of ∗.
CM202-DU
KXF-4Q4C
Actual numbers are shown on the plate instead of ∗.
CM202-DHU
KXF-D24C
Page 4
4Q4C-E-IMA00-A03-01
ILLUSTRATION IN MANUAL
NOTICE
This manual is created for CM201-DU, CM202-DU andCM202-DHU. Therefore, it
mainly uses the illustrations of CM202-DHU for descriptions.
Features
It has two sets of mounting stage.
• It mounts two boards at the same time.
• Up to 104 feeders can be set.

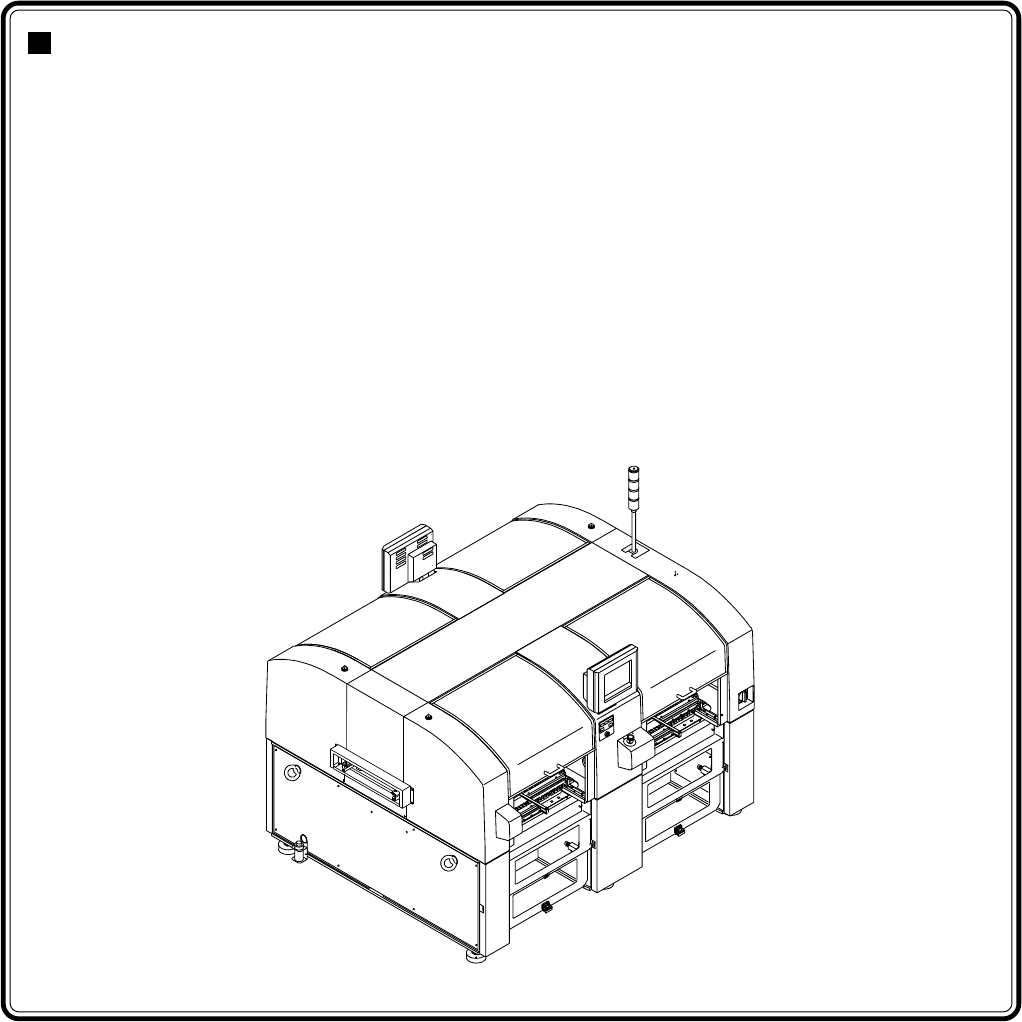

CM201-DU External view
CM202-DU External view
Front view
Rear view
Features
It has a set of mounting stage.
• It mounts boards one by one.
• Up to 52 feeders can be set.
444C-101E
Front view
Rear view
444C-102E
CM201-901E
CM201-902E
4Q4C-901E
4Q4C-902E
Features
It has two sets of mounting stage.
• It mounts two boards at the same time.
• Up to 104 feeders can be set.
CM202-DHU External view
Front view
Rear view
444C-102E
4U4C-901EU
4U4C-902EU
NOTICE
It is dangerous to operate the DU and the DHU while the feeder base cover and the
conveyor cover are removed.
Be sure to set the feeder base cover and the conveyor cover during operation.
Page 1-1
4Q4C-E-IMA01-A01-01
Chapter 1
INSTALLATION
For the installation
This manual is for the installation of this machine.
The installation should be conducted with the procedure of this manual. Disjointing
the machine for the displacement of the line should be conducted by the procedure
of 1-2 in reverse order.
1-1 Preparations for Installation
This section describes the conditions and how to install the equipment.
1-2 Installing Procedure
This section describes the operating procedures from the installment to
the power supply.
1-3 Assembling Procedure of Surrounding Devices
This section describes how to connect the main surrounding devices.
