Page 1-4
C) Air source
1. Air pressure should be supplied to the A section on figure.
2. The clean air using the air dryer should be supplied.
• The air pressure : 0.49 MPa
(Nipple size for hose connection is 3/8).
After air supply, set the pressure to 0.49 MPa by the regulator.
• Amount of supplied air : more than 150 l / min (CM201-DU) and 300 l / min (CM202-
DU,CM202-DHU).
(When the bulk feeder is used, 8 l / min per bulk feeder is separately necessary).
Drain hose (inner diameter 20 mm)
Pressure switch
Air hose (5m)
Filter
(inside)
Air without oil
To each equipment
Regulator
Primary air
A
Primary air
source side
Preparations for Installation
4Q4C-E-IMA01-A01-01
4U4C-901EU
Page 1-5
INSTALLATION
1
M/C
950
116
H
A
1
2
3
Preparations for Installation
1-1-3 Foundation
It requires the flat concrete floor for the foundation of installation.
Confirm the enough endurance of the soil.
• Endurance of the soil : more than 6570 N/m
2

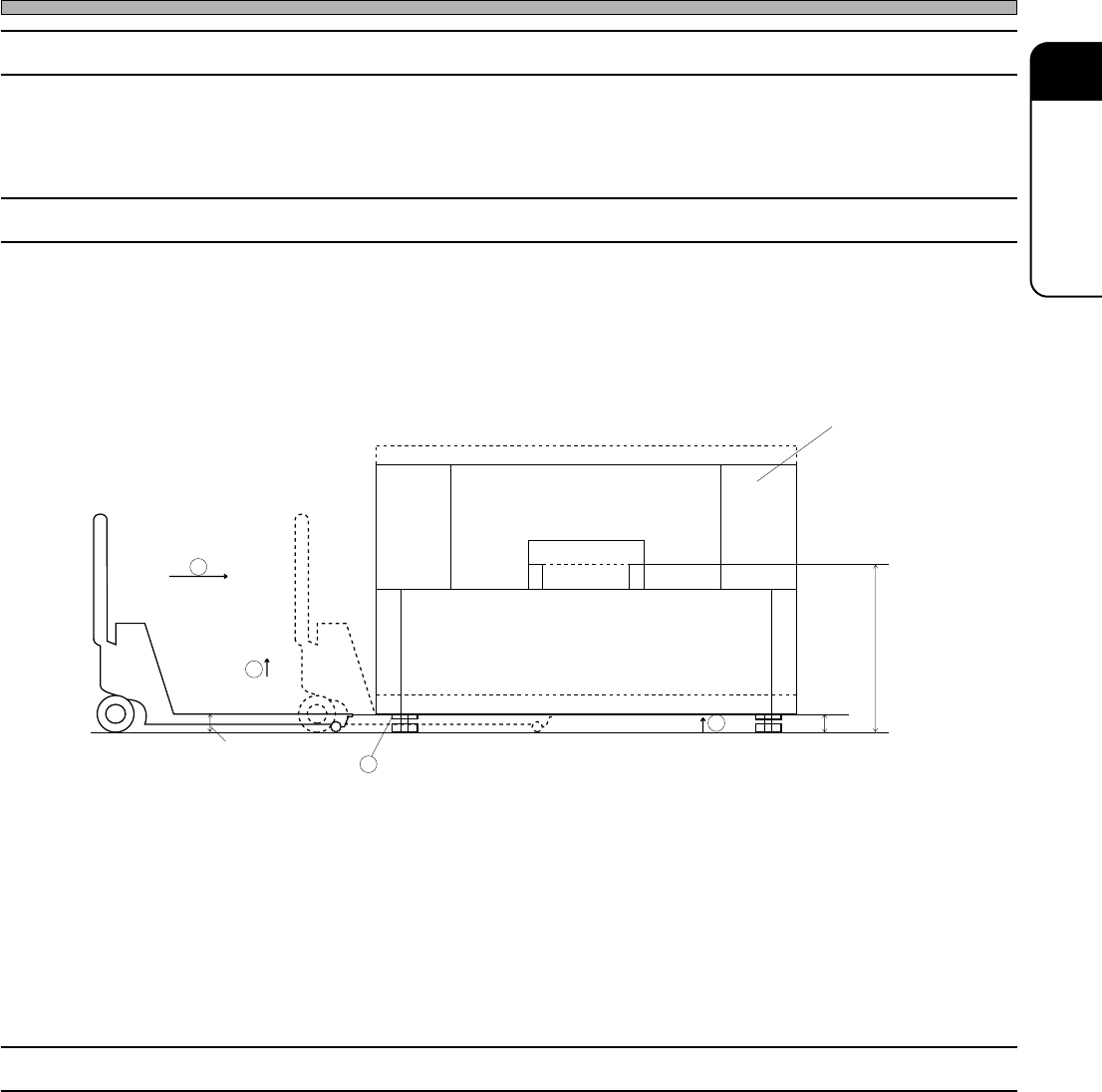

1-1-4 Lifting
A) Use the forklift for loading to or unloading from the truck.
In case of using crane, the special parts are necessary.
B) In case of replacement within the factory.
1 Rotate the leveling block A, and lift it so that the bottom of the machine is higher than the pallet
truck (H).
2 Place the pallet truck under the machine.
3 Lift the pallet truck to lift up the machine. (The number of pallet truck usage is different up to its
weight.)
4 Carry it to the right position.
1-1-5 Arrangement Diagram
Draw the reference line of the machine by the arrangement diagram.
Board transfer
height
493C-004E
4Q4C-E-IMA01-A01-01
Page 1-6
B) Ethernet cable (PT)
In using PT, it is necessary to use the ethernet cable.
Connect the cable with the hub in the machine and the computer to which the PT is installed with
the ethernet cable.
Ethernet cable (10m)
Ethernet 8 port hub
Connected to port 3
3Y3C-027E
3N3C-002E
Preparations for Installation
1-1-6 Board Setting / Ethernet Cable
A) Board setting
1) Stand alone : CN00 1-2 short (Line air pressure)
2) Line connection : CN00 1-2 open (Line air pressure)
NF18CX
∗
1
FOK 2-3 short
3) : CN00 1-2 short (Line air pressure)
NF18CX FOK 1-2 short
∗1) The “X” at the end may vary according to models.
Line signal specification
Outline
Connect signals for board transport between the pre-process and the post-process, production
end, air pressure, etc. with one cable between machines.
CN01
Control
box
Machine 1
CN01
Control
box
Machine 1
CN01
Control
box
Machine 1
CN00CN00
CN00 : Connector to the previous process
CN01 : Connector to the next process
Connection with other
maker's machine
4Q4C-E-IMA01-A01-02
